Exsys Series Adapter Multicolour
EAN:
Part number:
Item no:
Datasheet (PDF)
EXSYS EX-44082 interface card / adapter built-in RS-232
Highlights & Details
- built-in
- Host Interface: PCIe
- RS-232 output interface
Technical specifications
- Product type
Series Adapter
- Connection type
Series
- Type A
PCI Express
- Version
Adapter
- Factory colour
Multicolour
- Cable use
Series
- Range of use
Serial/parallel port adapters
- Height
66.8 mm
- Width
78.5 mm
- Output voltage
5 V
- Weight
188 g
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Serial ports quantity
2
- Quantity per box
1 Stück(e)
- Internal
yes
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 75 °C
- Baud rate
921.6 Kbit/s
- Mounting brackets included
yes
- Number of expansion slots
1
Documents & Downloads
Datasheet
Datasheet 3796896 Exsys Series Adapter Multicolour
User & Safety Instructions
User & Safety Instructions 3796896 Exsys Series Adapter Multicolour
Description

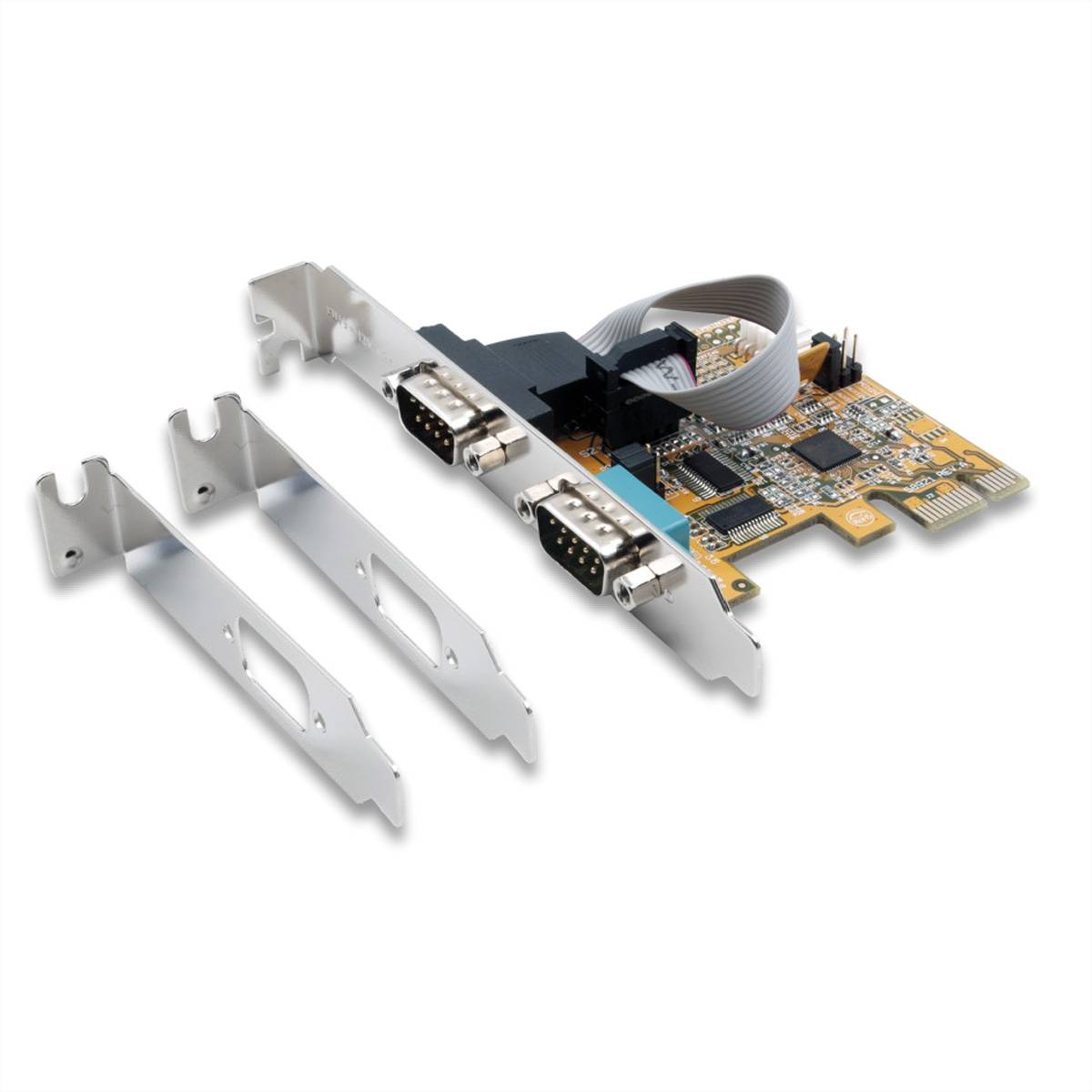

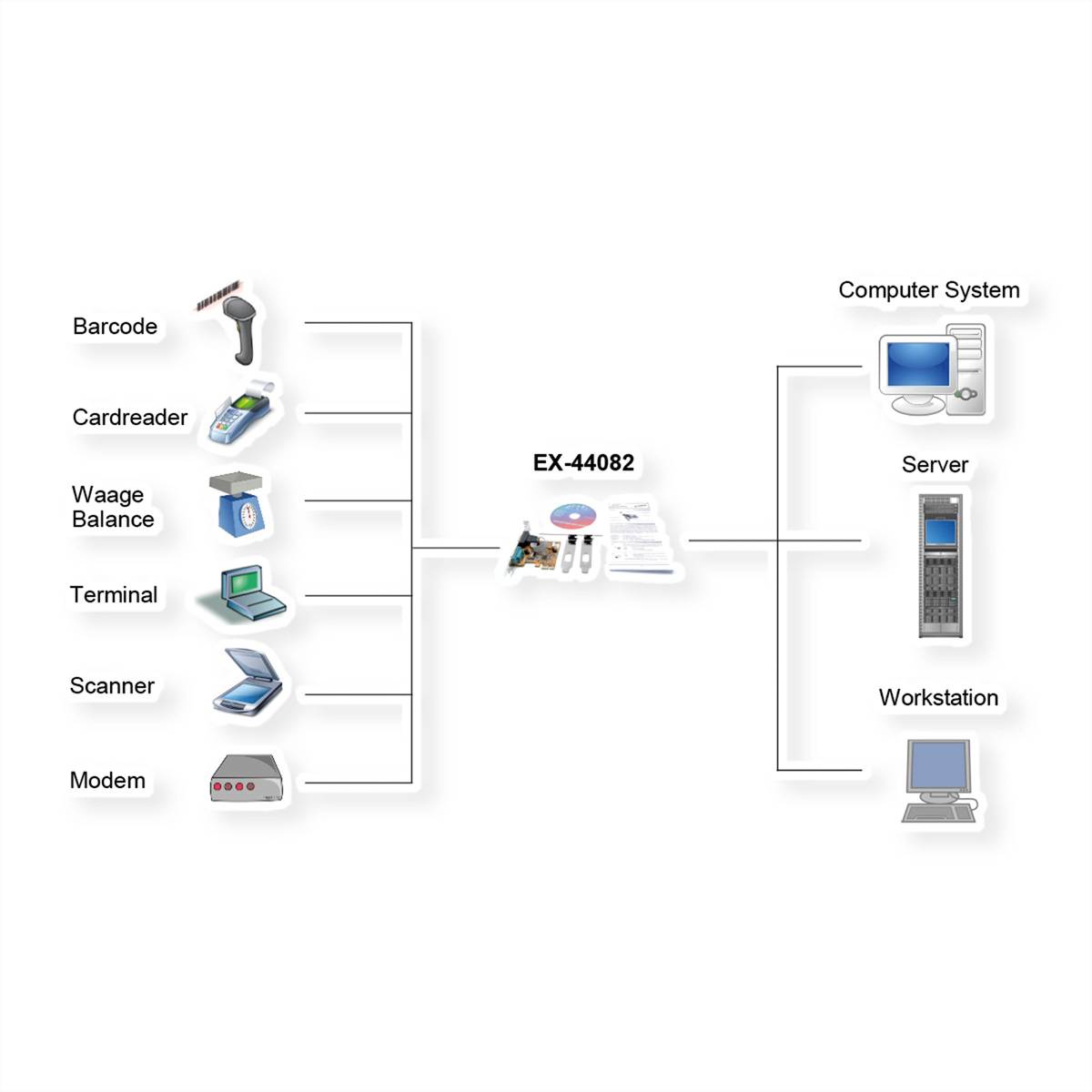

The EX-44082 PCIe I/O card provides two serial RS-232 high-performance UART 16C550 outputs. It was developed to expand two additional serial ports for PC, small workstation or server via the PCIe bus. The card is fully plug and play compatible. In addition, +5V or +12V can be configured on pin 9 of the serial plug for a POS system (Power over system). With the EX-44082 two Low Profile Brackets are included in delivery for installation in narrow computer housing up to 8cm installation height.
This text is machine translated.
This text is machine translated.
Features
- RS-232 V.24 interface
- ±15kV IEC1000-4-2 ESD protection for RS232 I/O.
- FIFO buffer 16C550 with 16 bytes
- I/O addresses and interrupt are assigned by the operating system
- PCIe interface compatible with 1.0a to 3.0 specifications
- 5, 6, 7 and 8 data bits
- 1, 1.5 and 2 stop bits
Scope of delivery
- EX-44082, 2 Low Profile bracket, driver CD, manual
