Exsys Series Cable 0 m Multicolour
EAN:
Part number:
Item no:
Datasheet (PDF)

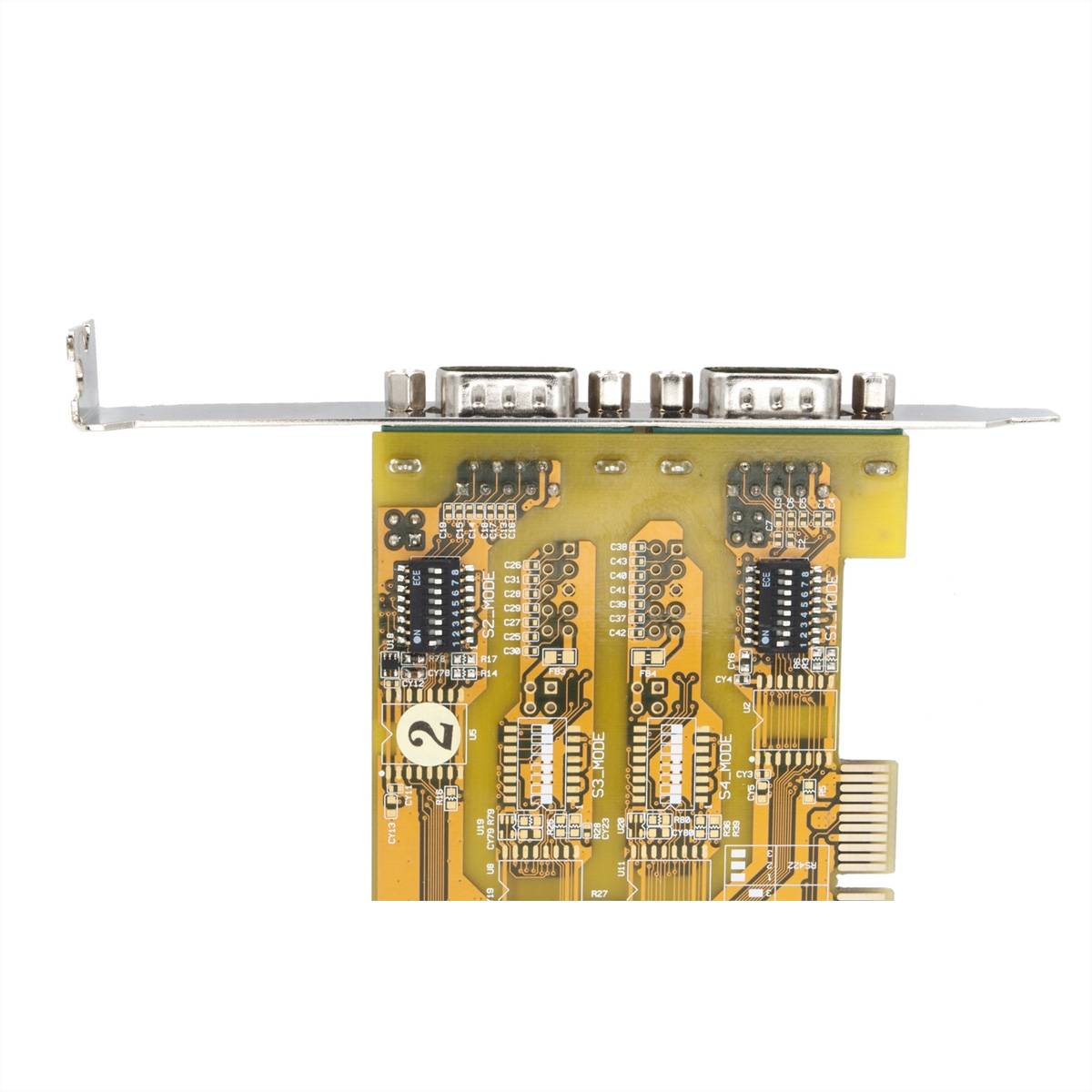

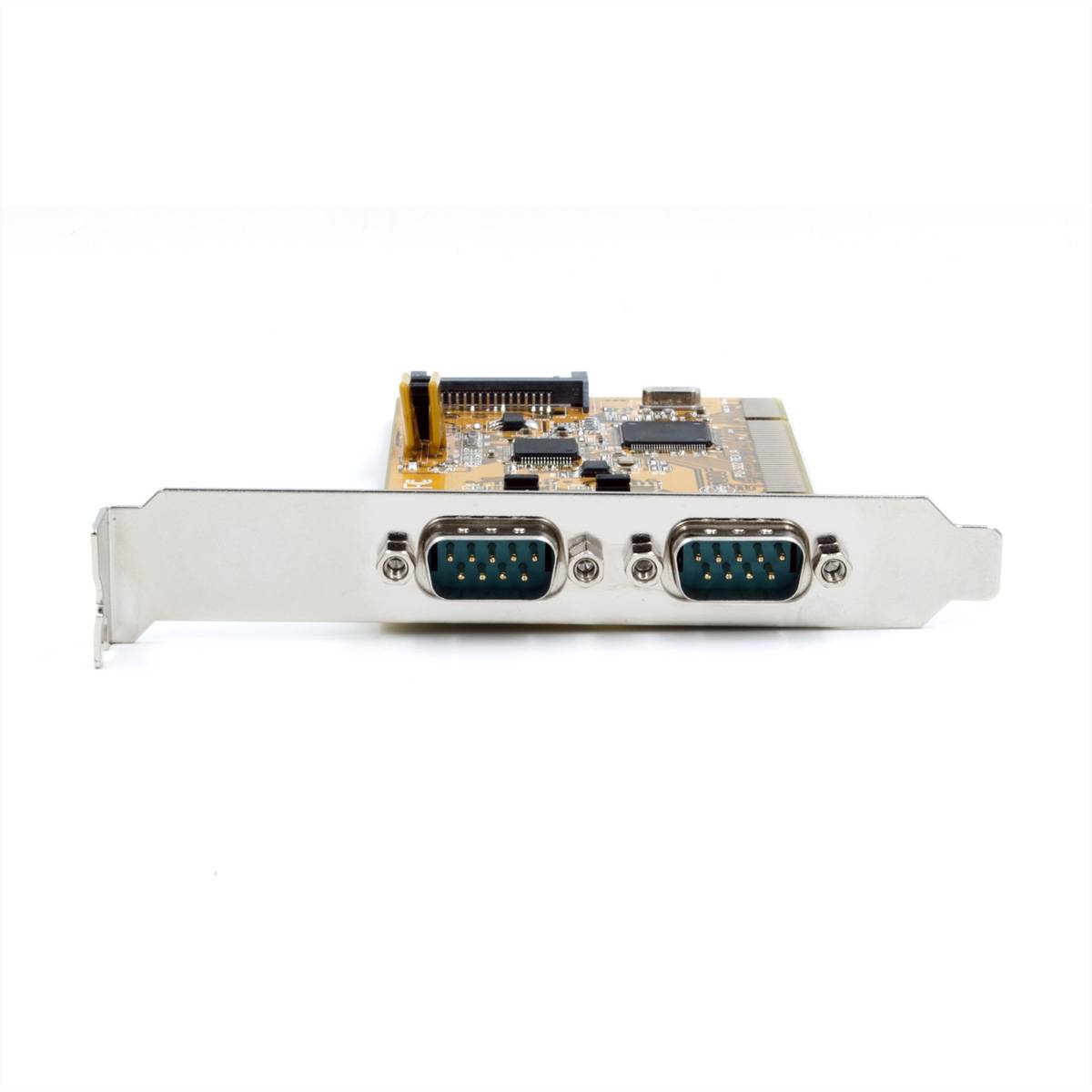

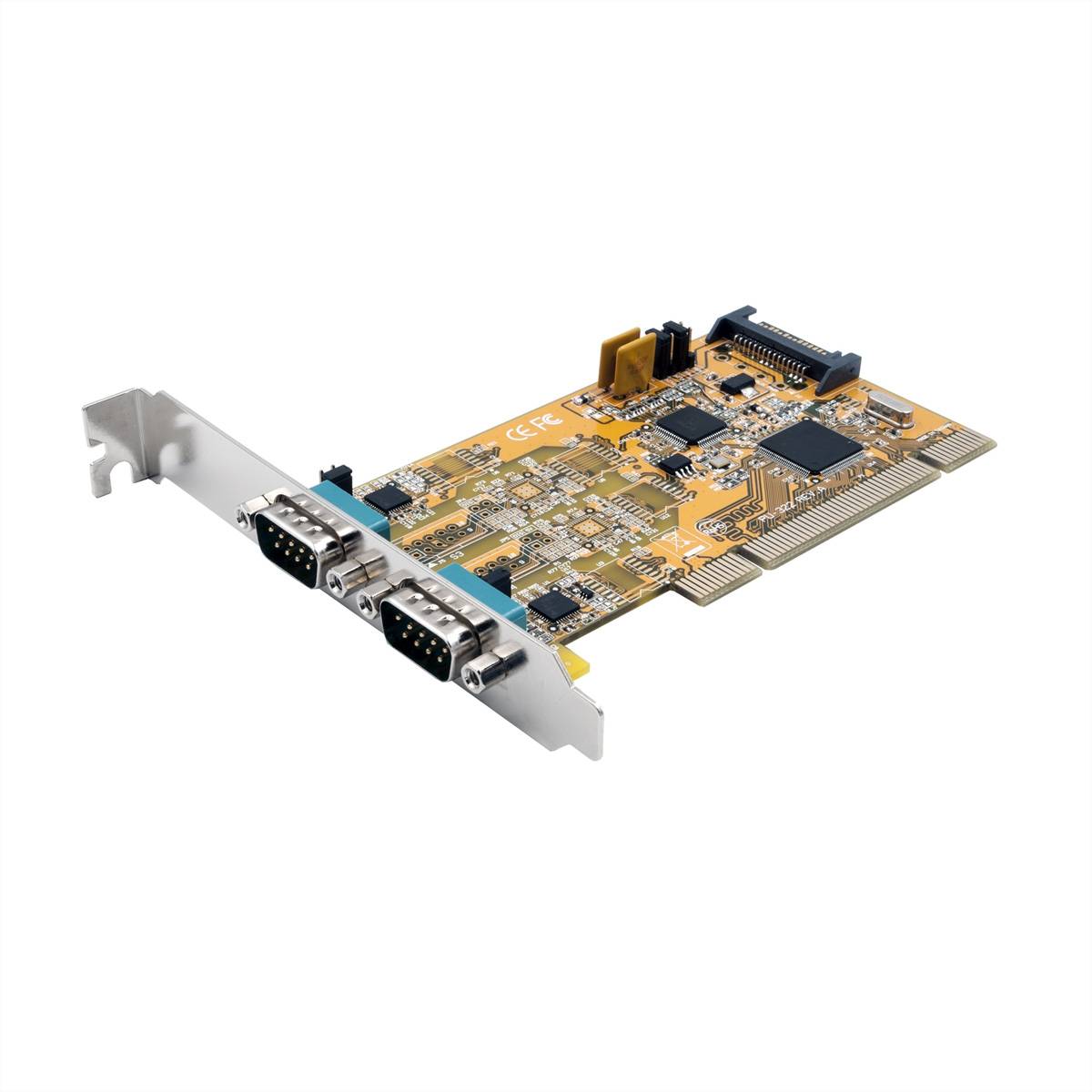

EXSYS EX-42032 interface card / adapter built-in serial
Highlights & Details
- built-in
- Host Interface: PCI
- Output interface: Serial
Technical specifications
- Product type
Series Cable
- Connection type
Series
- Type A
PCI
- Version
Cable
- Cable length
0 m
- Factory colour
Multicolour
- Cable use
Series
- Range of use
Serial/parallel port adapters
- UKCA
yes
- Serial ports quantity
2
- Internal
yes
Documents & Downloads
Datasheet
Datasheet 3796902 Exsys Series Cable 0 m Multicolour
User & Safety Instructions
User & Safety Instructions 3796902 Exsys Series Cable 0 m Multicolour
Description
The EX-42032 PCI I/O card provides two serial RS-232, RS-422 and RS-485 high-performance UART 16C550 outputs. It was developed to expand two additional serial ports for PC, small workstations or servers via the PCI or PCI-X bus. +5V and +12V can be configured on pin 9 of the serial plugs as POS system (Power over system). . The card is fully plug and play compatible. It supports the features ATTATM Auto RS-485 Transmitter. The transmission mode RS-232, 422 or 485 can be set individually for each port.
This text is machine translated.
Features
- Exsys EX-42032 - Serial adapter - PCI-X - RS-232/422/485/V.24 x 2
- Device Type : Serial adapter
- Form factor : Plug-in card
- Interface type (bus type) : PCI-X
- Bus voltage : 5.0 V.
- Ports : RS-232/422/485/V.24 x 2
- Dimensions (width x depth x height): 13.23 cm x 12 cm
- Weight: 200 g
- Data Link Protocol: RS-232, RS-422, RS-485, V.24
- Data transfer rate : 921.6 Kbps
- Processor : FTDI
- System requirements : Microsoft Windows 98 Second Edition / Windows ME, Apple MacOS X 10.x, Microsoft Windows XP Embedded, Microsoft Windows CE 6.0, Microsoft Windows 2000/XP/Vista/7/8/8.1 (32 bit), Microsoft Windows 2000/XP/Vista/7/8/8.1 (64 bit), Linux 2.6.9 or higher
Scope of delivery
- EX-42032, driver CD, manual
