Exsys Series Cable 0 mm Multicolour
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details

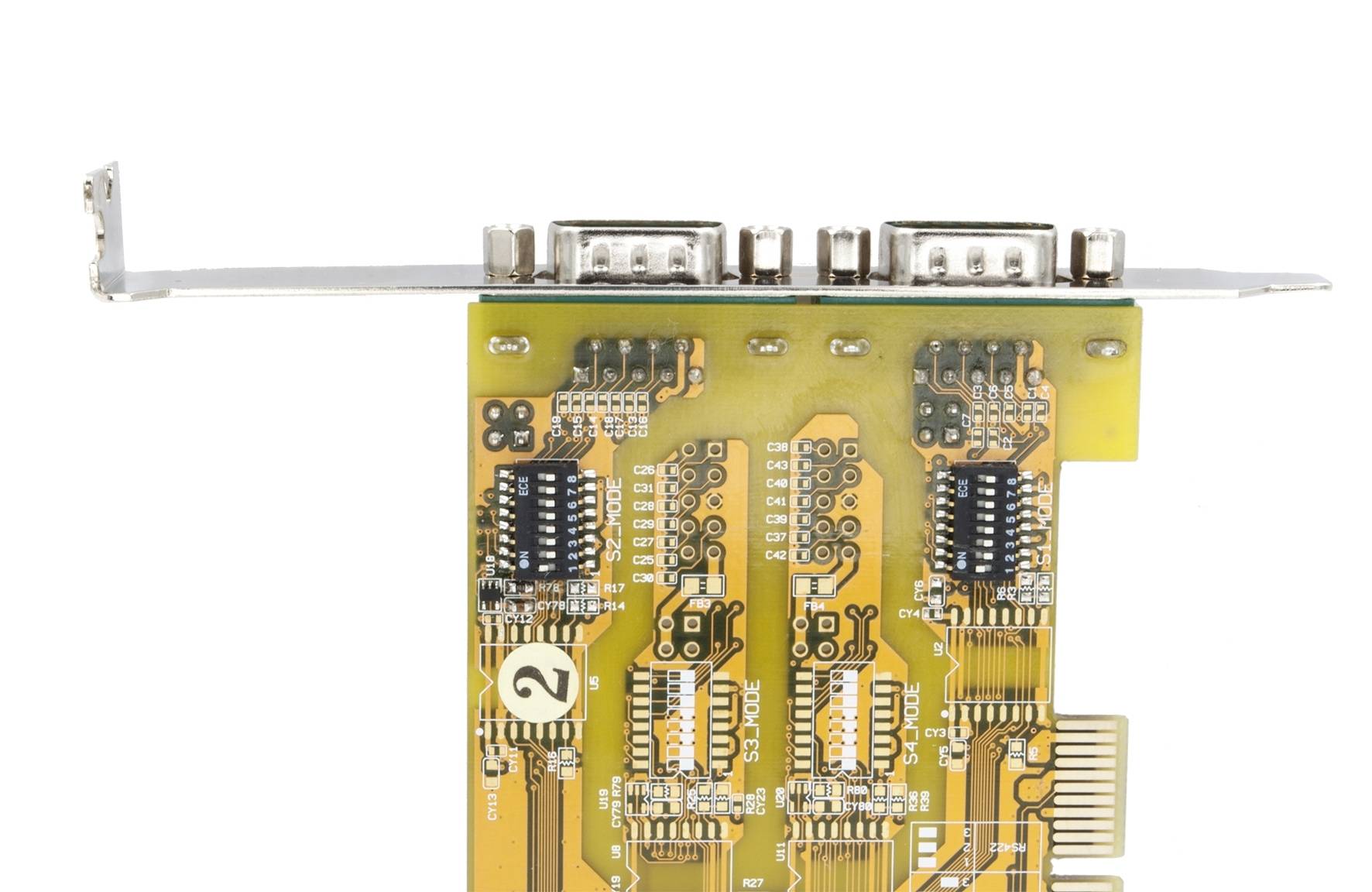

The EX-45032 PCI I/O card provides two serial RS-232, 422 and 485 high-performance UART 16C550 outputs. It was developed...
- INTERFACE RS-232 V.24/RS-422/RS-485
- ±15kV IEC1000-4-2 ESD protection for RS232 I/O.
- Plug and Play compatible
- POS system (Power over System) configurable
- Supports ATTA™ Auto Transmitter
Technical specifications
- Product group: Interface cards
- Product type: PCI Express adapter card
- Bus system PCI Express
- Interfaces: 2x serial RS-232/422/485
- RS-232 interface: Yes
- RS-422/485 interface: Yes
- Data transfer rate: 300Baud to 921.6Kbaud
- FTDI chipset
- Operating systems: Win98SE/ ME/ XP/ 200x/ Vista/ 7/ 8.x/ 10 (32&64-bit)XP Embedded, WinCE up to 6.0/ Linux 2.6.9 or higher Mac OS 10.x

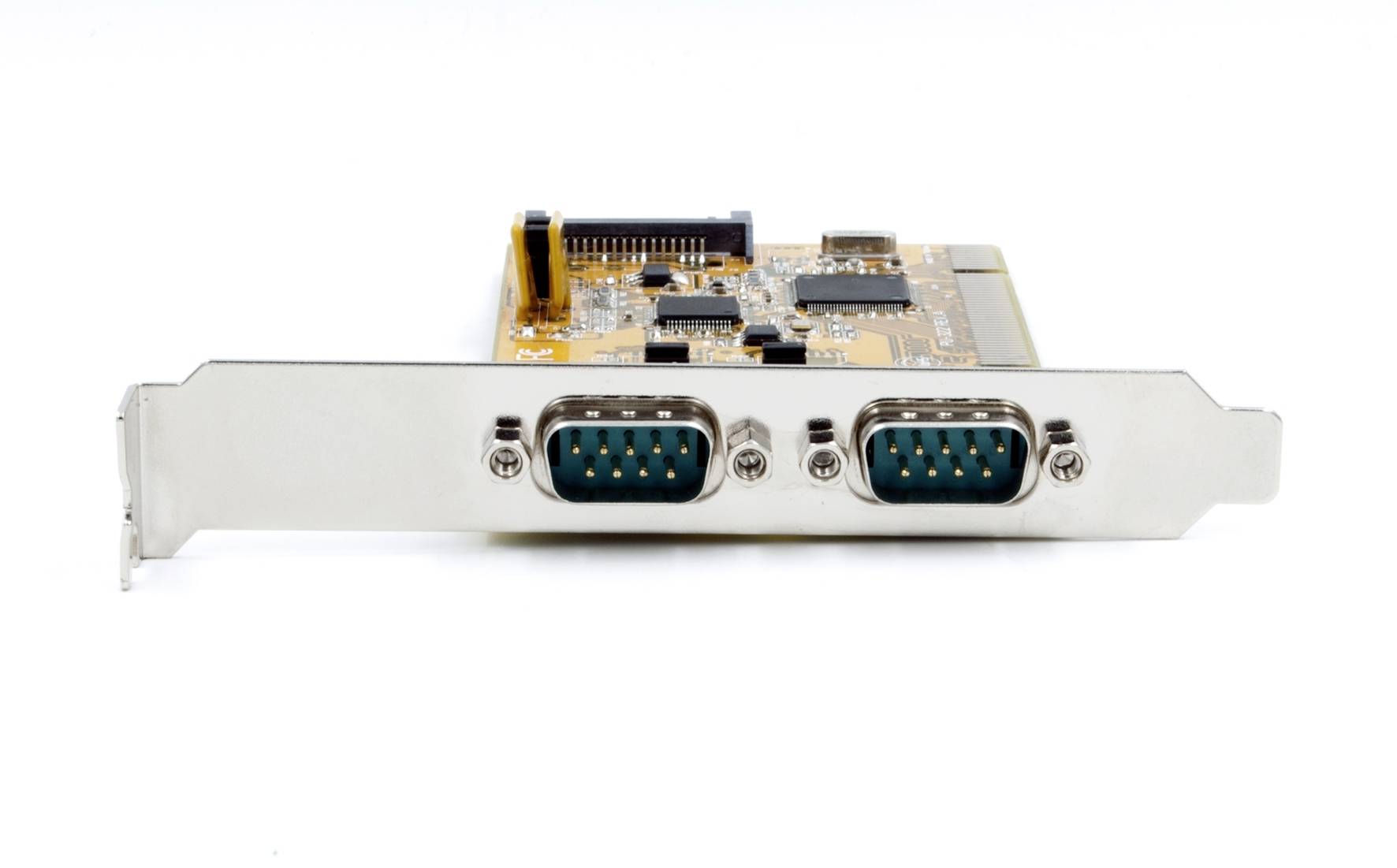

- 2 x 9 pin serial RS-232/422/485 plug-1 x SATA power connection
- Overall height: Full profile
- Installation guide / manual: Yes
- Weight: 200 g
- Packaging height 40 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0,187 kg
- Gross weight: 0.187
- Product type
Series Cable
- Connection type
Series
- Version
Cable
- Cable length
0 mm
- Factory colour
Multicolour
- Cable use
Series
- Range of use
Serial/parallel port adapters
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3733054 Exsys Series Cable 0 mm Multicolour
Description

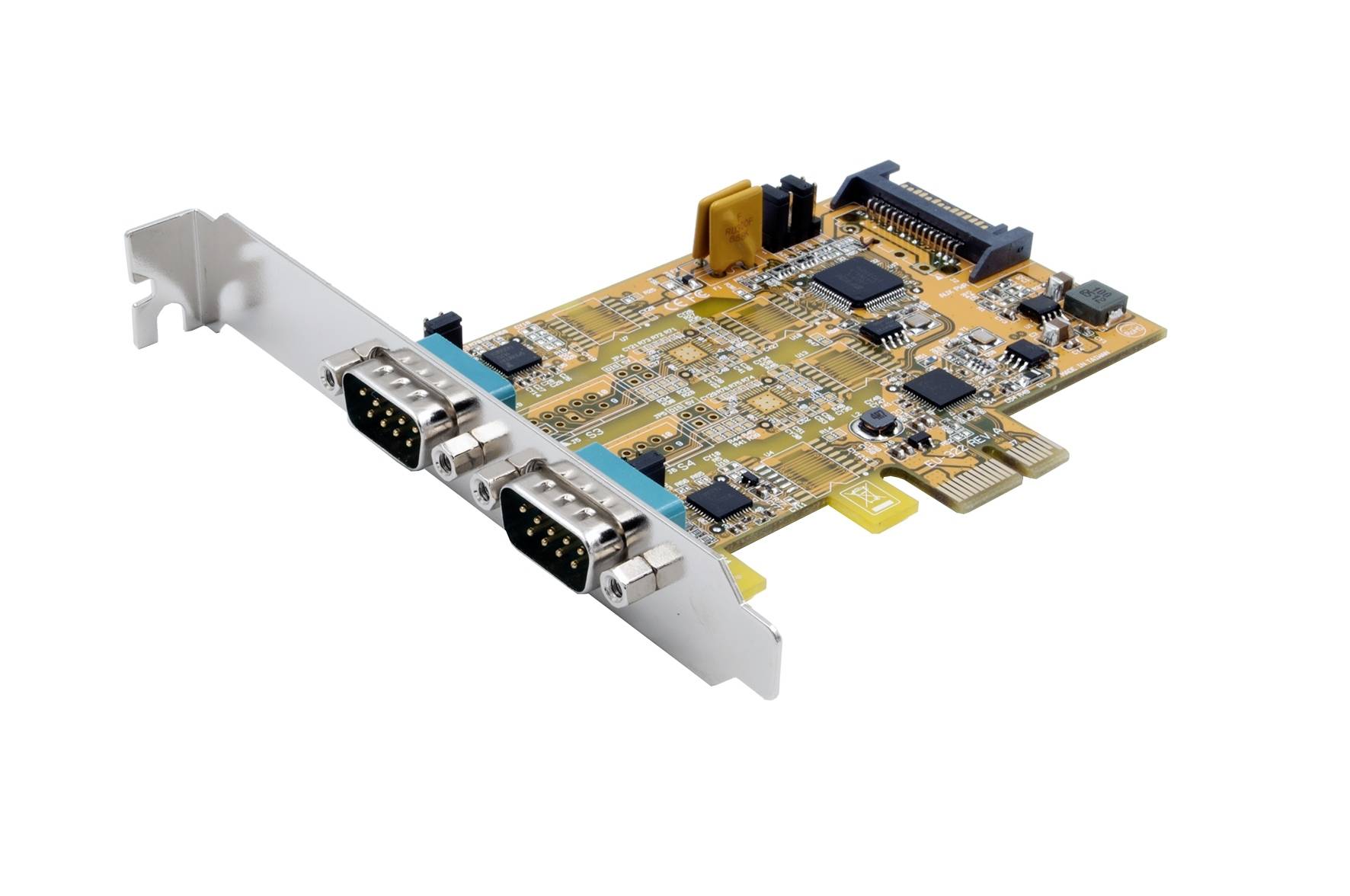

The EX-45032 PCI I/O card provides two serial RS-232, 422 and 485 high-performance UART 16C550 outputs. It was developed to expand two additional serial ports for PC, small workstations or servers via the PCI or PCI-X bus. +5V and +12V can be configured as POS system (Power over system) on pin of the serial plugs. The card is fully plug and play compatible. It supports the features ATTATM Auto RS-485 Transmitter. The transmission mode RS-232, 422 or 485 can be set individually for each port.
This text is machine translated.
Features
- Exsys EX-45032 - Serial adapter - PCIe - RS-232/422/485/V.24 x 2
- Device Type : Serial adapter
- Form factor : Plug-in card
- Interface type (bus type) : PCI Express x1
- Bus voltage : 3.3 V.
- Ports : RS-232/422/485/V.24 x 2
- Dimensions (width x depth x height): 11.23 cm x 12 cm
- Weight: 200 g
- Data Link Protocol: RS-232, RS-422, RS-485, V.24
- Data transfer rate : 921.6 Kbps
- Processor : FTDI
- System requirements : Microsoft Windows 98 Second Edition / Windows ME, Apple MacOS X 10.x, Microsoft Windows XP Embedded, Microsoft Windows CE 6.0, Microsoft Windows 2000/XP/Vista/7/8/8.1 (32 bit), Microsoft Windows 2000/XP/Vista/7/8/8.1 (64 bit), Linux 2.6.9 or higher
Scope of delivery

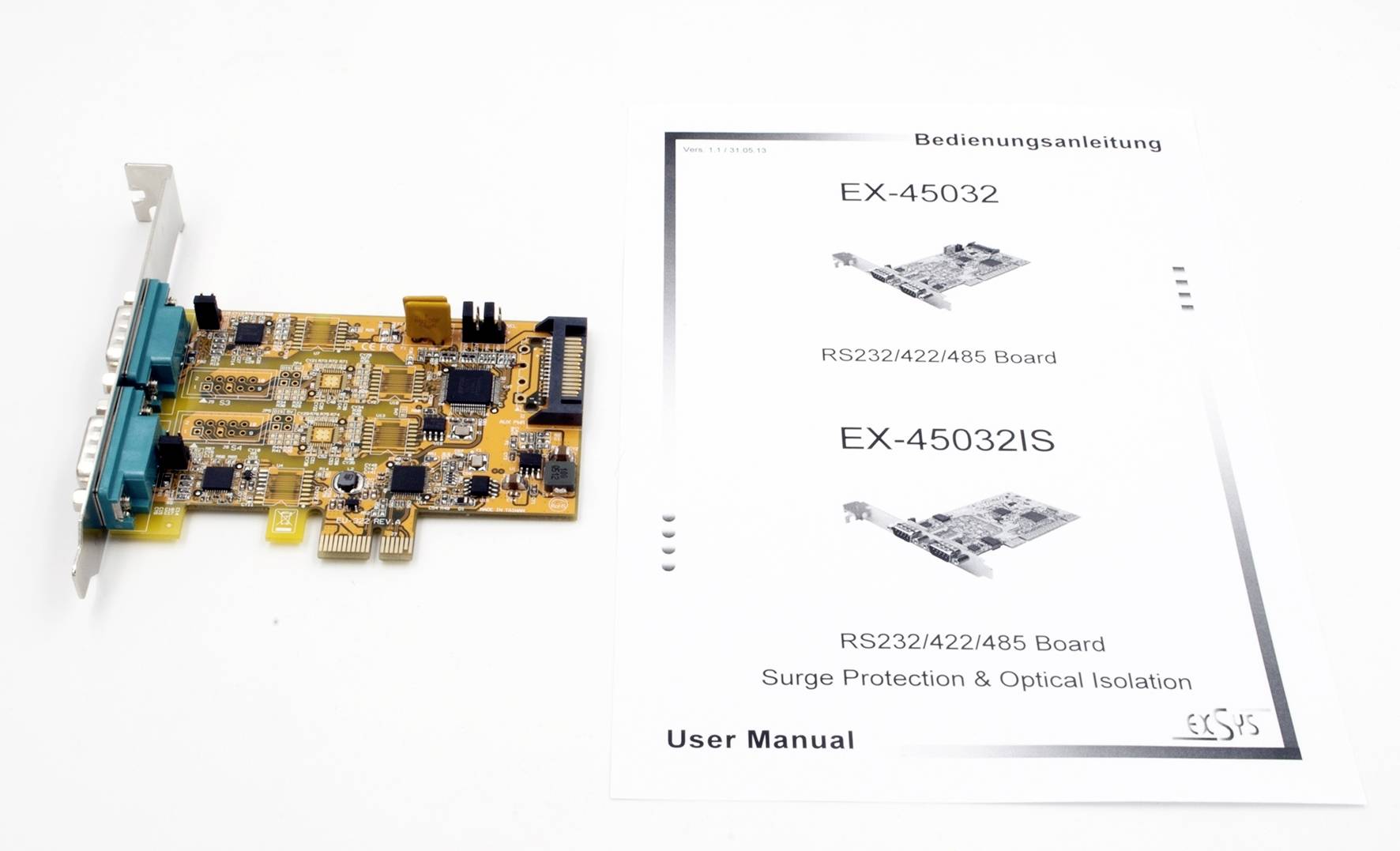

- EX-45032, driver CD, manual
