Exsys Sonstiges USB-Gerät USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
4-Ports USB 3.2 Gen 1 metal HUB with 15KV ESD surge protection for table, wall and DIN-rail mounting...
- Connections for up to four USB peripheral devices
- Power: Bus Power or Self Power
- Automatic detection of input polarity
- Compact industrial design
- Heavy duty metal casing
Technical specifications
- Product group: Hubs
- Product type USB Hub
- Colour, black
- PC connections: 1x B-socket screw able upstream
- Connections devices: 4x A-socket screw type downstream
- Transmission quality USB 3.2 Gen 1 1 SuperSpeed 5 Gbps (USB 3.1 1st Gen, USB 3.0)
- Page 1 Type of connector: USB 3 Type B.
- Page 1 Type of connection: Female (female)
- Page 2 Type of connector: USB 3 Type A.
- Page 2 Type of connection: Female (female)
- Total number of ports: 4
- Range of application: External
- Material (casing): Metal
- Power supply required: Partially
- Power supply included in delivery: No.
- Height: 158 mm
- Width 80 mm
- Depth: 32 mm
- Weight: 574 g.
- Packaging height 70 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0,548 kg
- Gross weight: 0.548
- Product type
USB hub
- Interfaces (output)
USB type A
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
0.548
- Width
80 mm
- Height
158 mm
- Depth
32 mm
- Cable length
0 mm
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Used at
External
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796934 Exsys Sonstiges USB-Gerät USB hub Black
User & Safety Instructions
User & Safety Instructions 3796934 Exsys Sonstiges USB-Gerät USB hub Black
Description

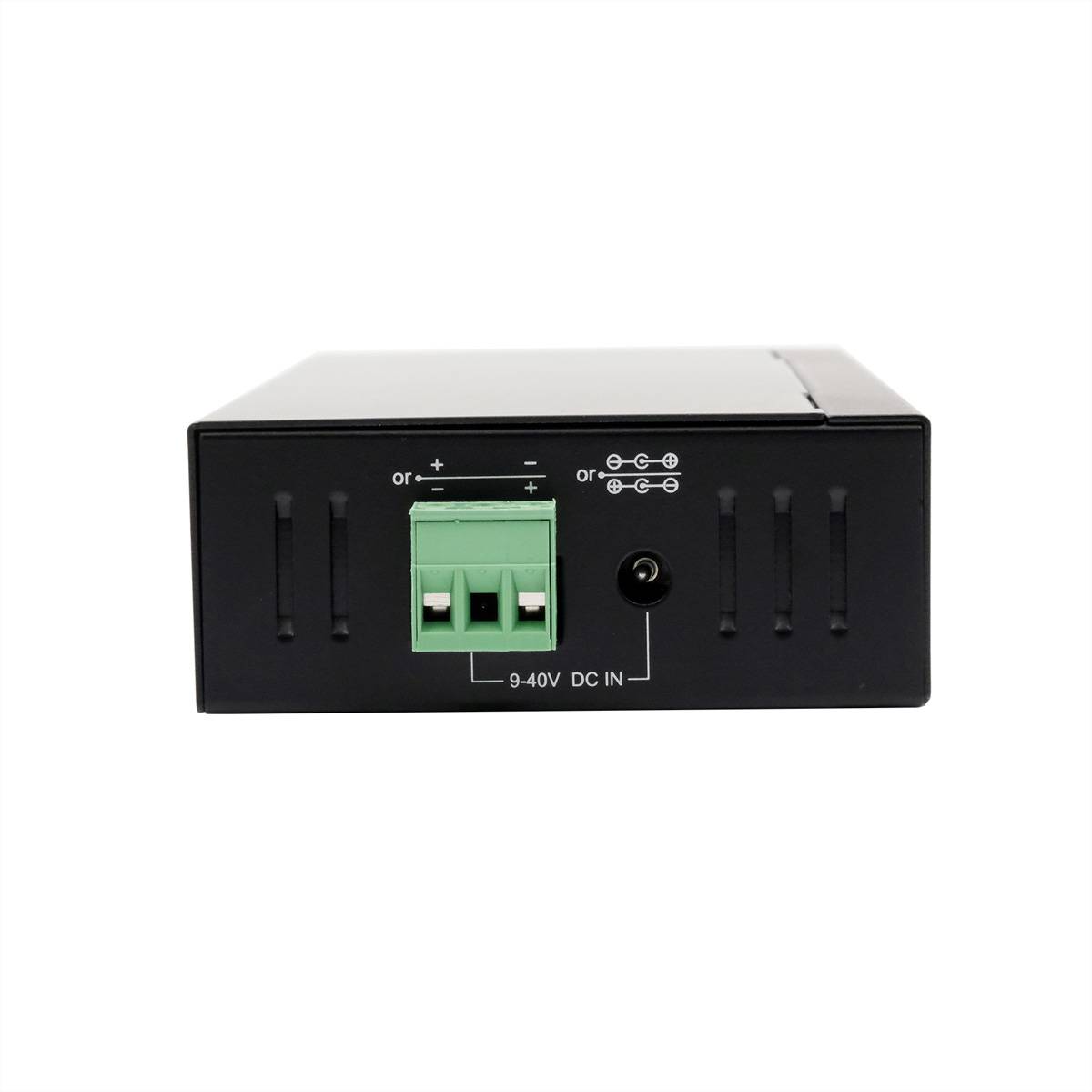

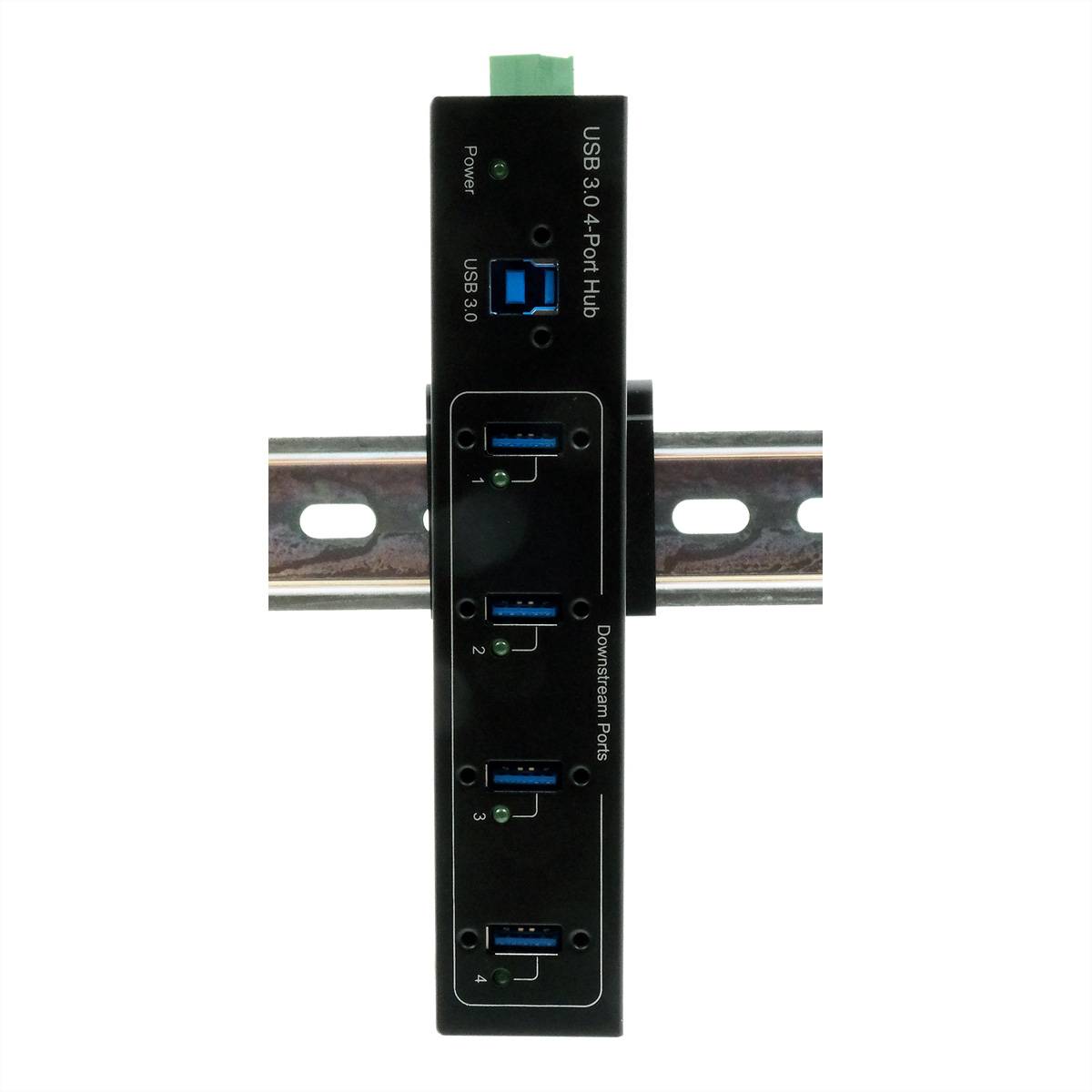

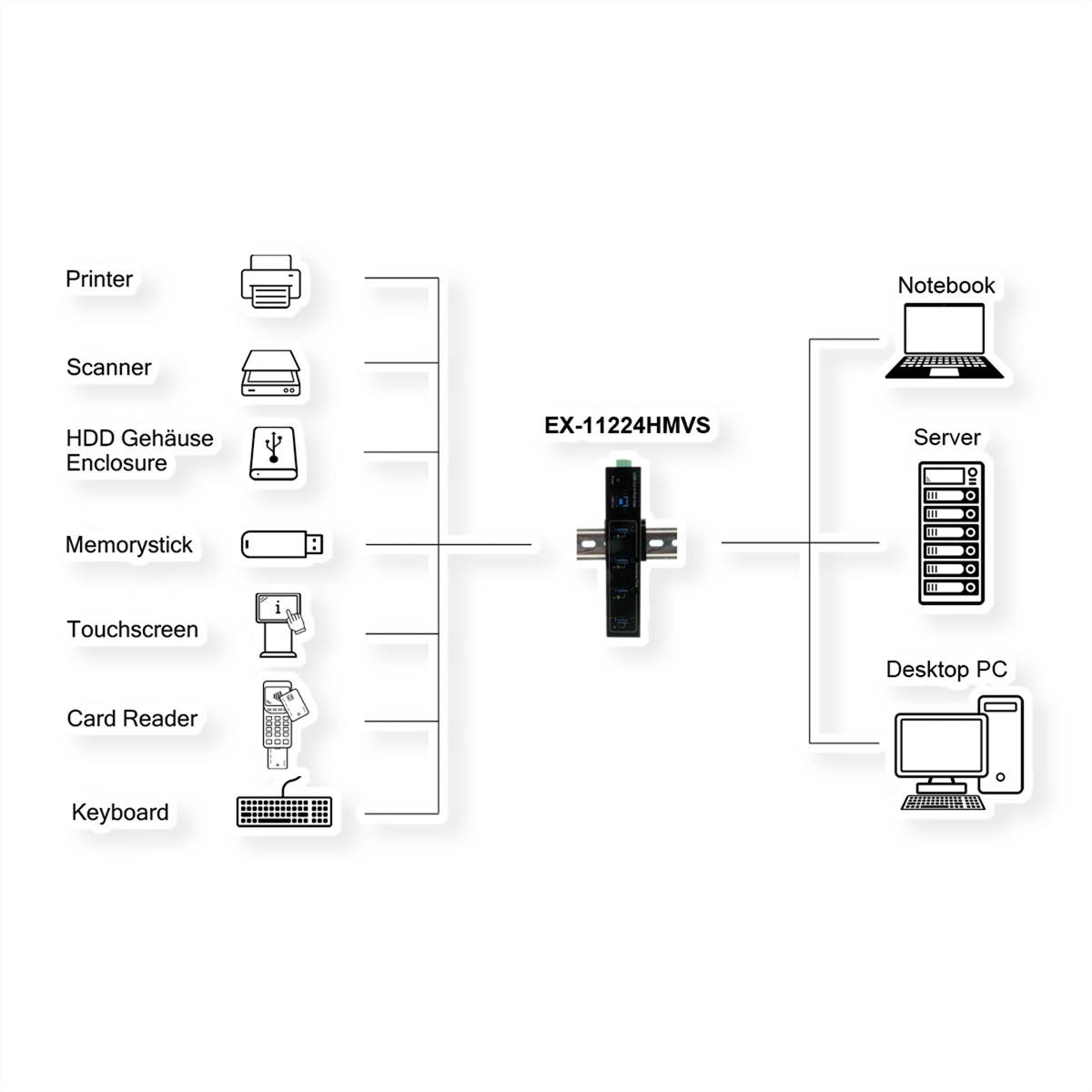

4-Ports USB 3.2 Gen 1 metal HUB with 15KV ESD surge protection for table, wall and DIN rail mounting The robust, industrial-grade EX-11224HMVS USB hub with four screw-able USB 3.2 Gen 1 outputs is suitable for consumers and industrial applications. It can be installed on the wall or on a carrier rail and is connected to computer, notebook or server with the accompanying USB 3.2 Gen 1 cable. It ensures secure data transfer with excellent performance of up to 5 Gbit/s (SuperSpeed USB 5 Gbps) and is. Backward compatible with USB 1.1 . It can be powered with USB-bus-Power or via a two-wire terminal strip connection (+9V to 40V). Optionally a power supply (EX-6988/6989) can be connected to the DC-jack.
This text is machine translated.
Scope of delivery
- EX-11224HMVS, USB 3.2 Gen 1 Cable , DIN Rail Kit, Wall Mount Kit, Manual
