Buy Exsys Switch Ethernet module

'Industrial Gigabit PoE Injector' device with Ethernet and Hi-PoE OUT ports, power indicators, designed for 12-48V DC input.

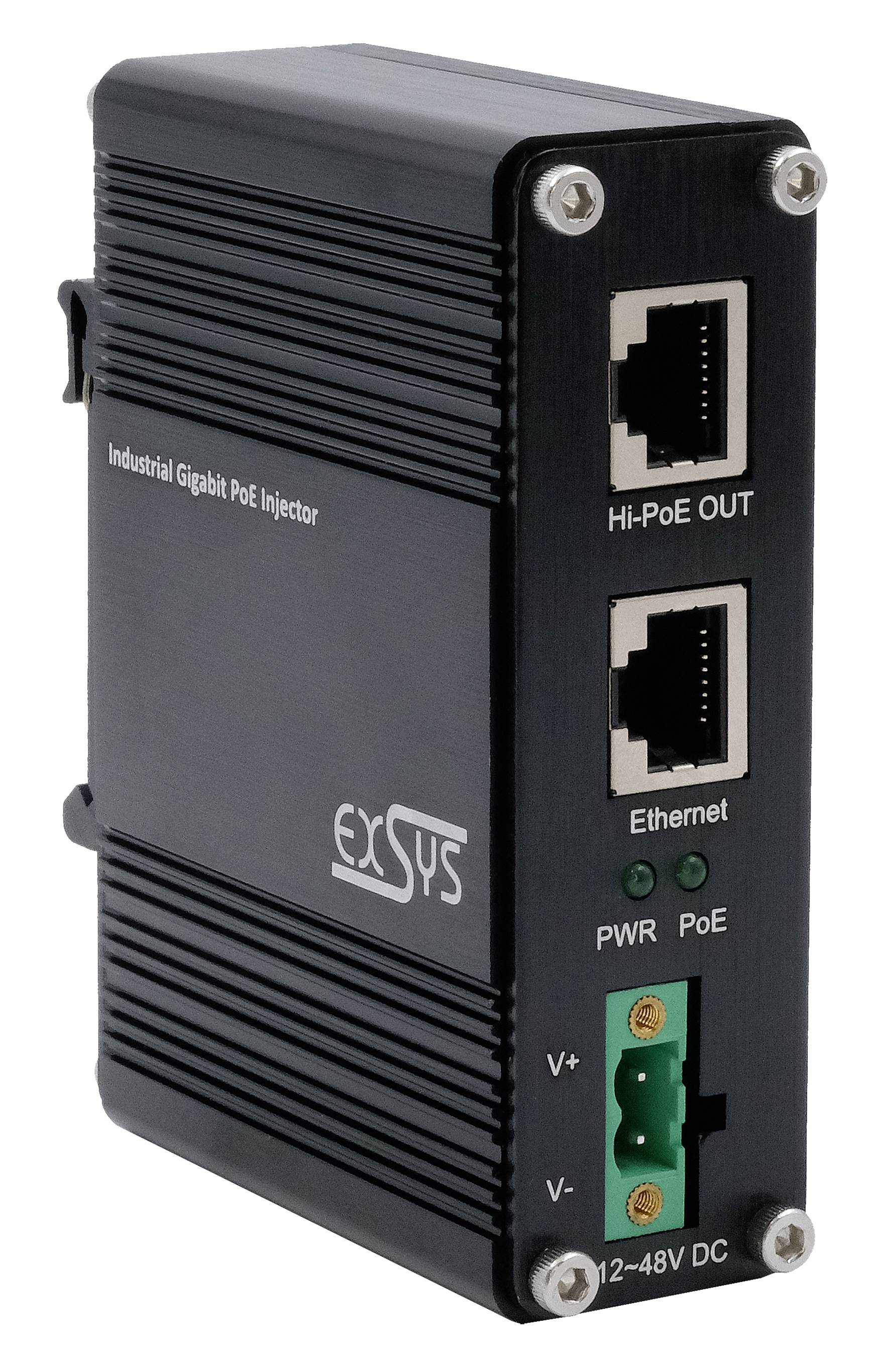

'ExSys Industrial Gigabit PoE Injector' device with Ethernet and Hi-PoE OUT ports, power indicator lights, and V+ and V- connections.

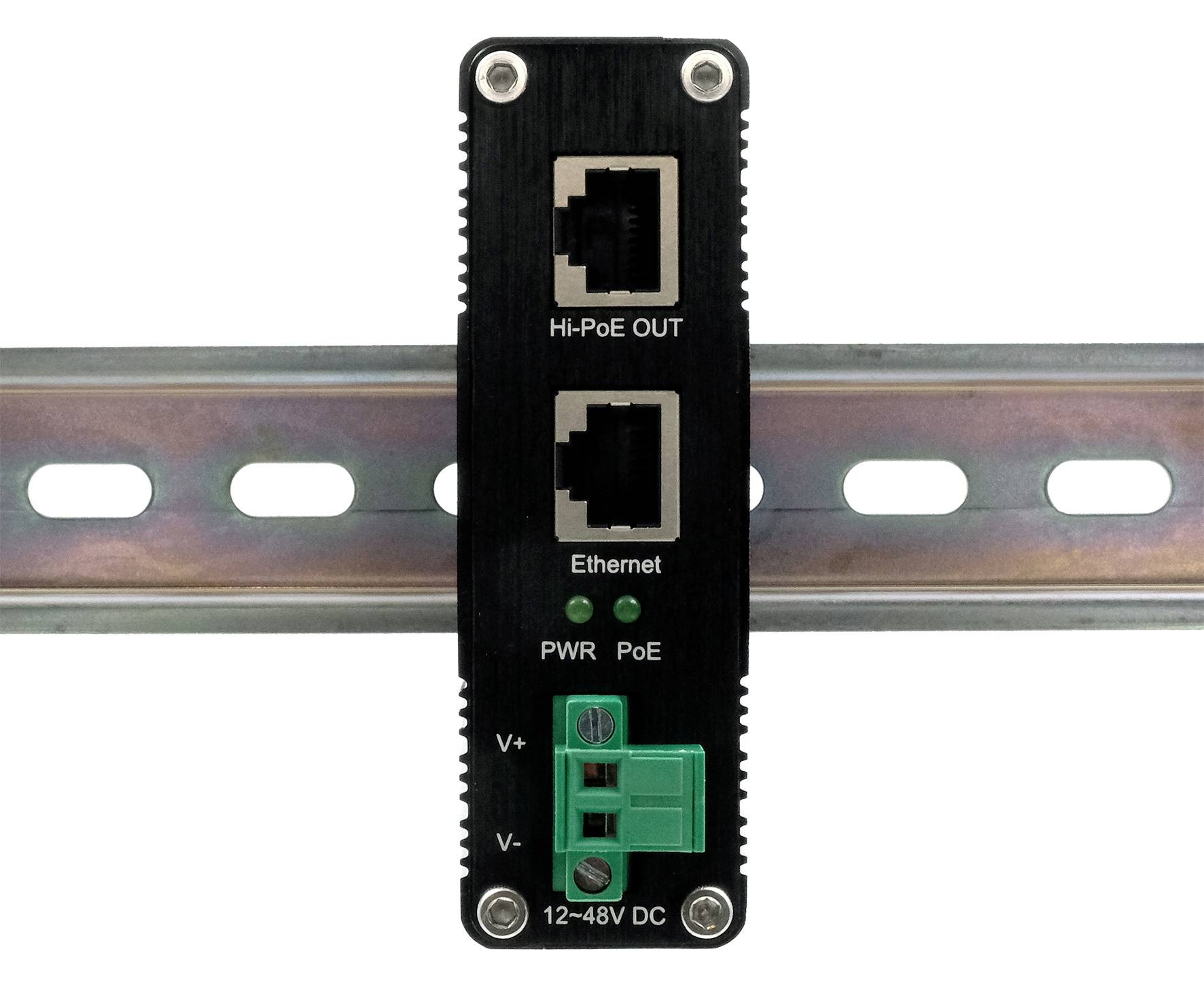

A black device mounted on a metal rail features two network ports labeled 'Hi-PoE OUT' and 'Ethernet', with power indicators and terminals for 12-48V DC input.

1/6

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PoE+ Gigabit injector 60W, -40°C to +80°C ...

Provides network terminal devices with power via the data line
10/100/1000Base-T Gigabit Ethernet
Robust, compact metal housing IP40

Technical specifications

Product group: PoE adapter
Product type: Gigabit PoE injector
Power over Ethernet (PoE) PoE (IEEE 802.3af)
Protection type (IP code): IP40
Min. Operating temperature -40 °C
Max. operating temperature: 80 °C
Height: 95 mm
Width 28 mm
Depth: 67.5 mm
Weight: 370 g
Packaging height 70 mm
Package width 140 mm
Packaging depth 190 mm
Package weight: 0.35 kg
Gross weight: 0.35

Product type: Ethernet module

Factory colour: Black

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3732999 Exsys Switch Ethernet module

Description

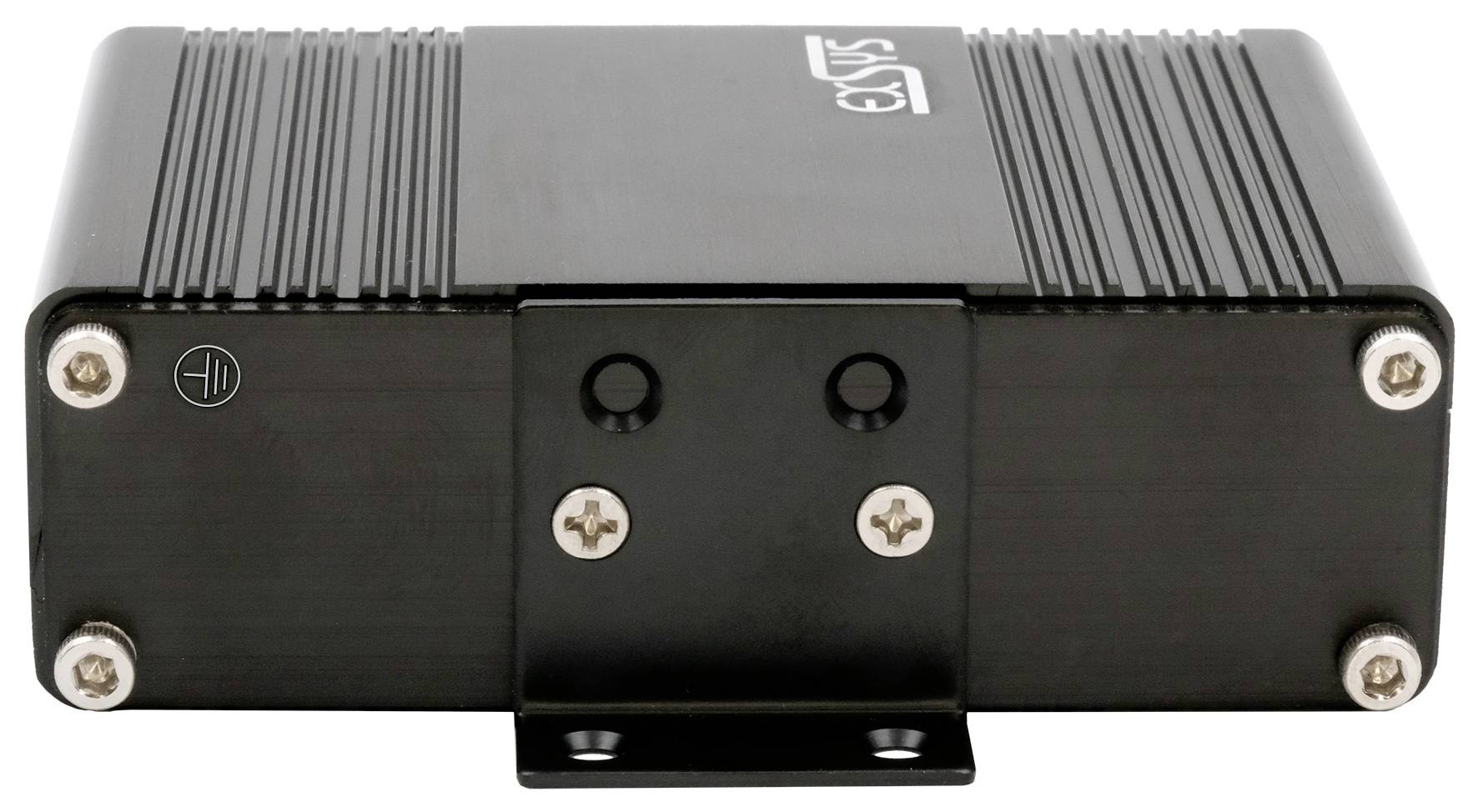

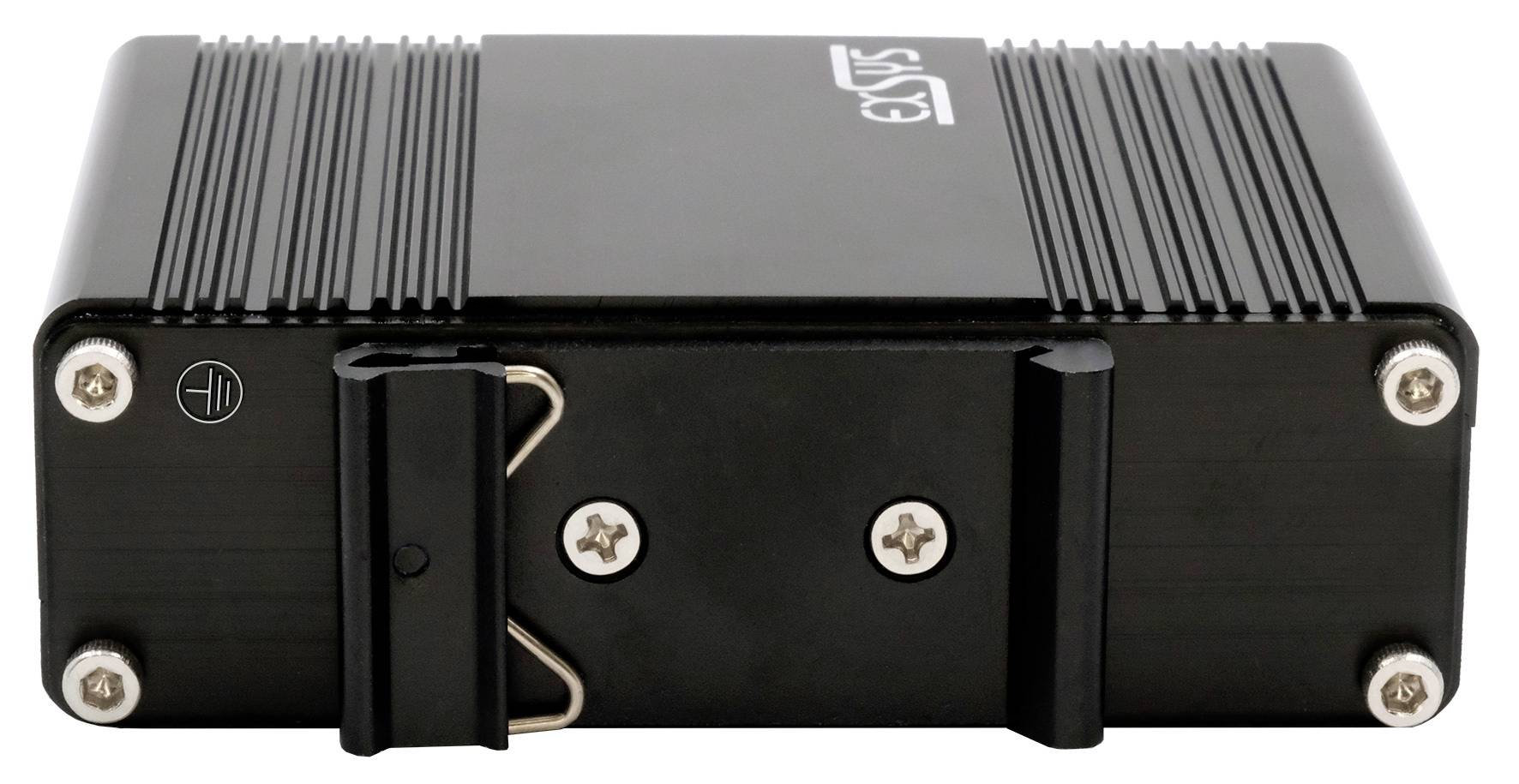

PoE+ Gigabit injector 60W, -40°C to +80°C With the gigabit Ethernet PoE injector EX-60310 in a robust metal housing the terminals such as IP-telephones, IP-cameras, WLAN access points etc. can be supplied with power via the network cable. . It supports the PoE+ standard IEEE 802.3at. The maximum power (PD) on the PoE port . Is in type 1 12.95W and in type 2 25.50W, in addition LTPoE++ is also possible with up to 60W. . An optional external power supply unit is powered via the +12~48V terminal Block. . The EX-60310 ensures a safe data transfer and excellent performance of up to 1000 Mbit/s. Thanks to its robust metal casing and extended operating temperature range from -40°C to 80°C, it is suitable for a variety of applications even in rough environments. . The delivery package includes a DIN rack kit (pre-assembled) and a wall mounting bracket.

This text is machine translated.

Features

General:
Ethernet interfaces, type Gigabit Ethernet
Ethernet LAN data transfer rates of 10,100,1000 Mbit/s.
Cabling technology 10/100/1000
Product color: Black
Case material: metal
LED-displays: PoE, Status
Input voltage 12 – 48 V
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) Power per port: 60 W
Power over Ethernet (PoE) 60 W total power
Width 95 mm
Depth: 67.5 mm
Height: 28 mm
Packaging type: Box

Scope of delivery

EX-60310, DIN rail kit (pre-assembled), wall mounting kit, manual
