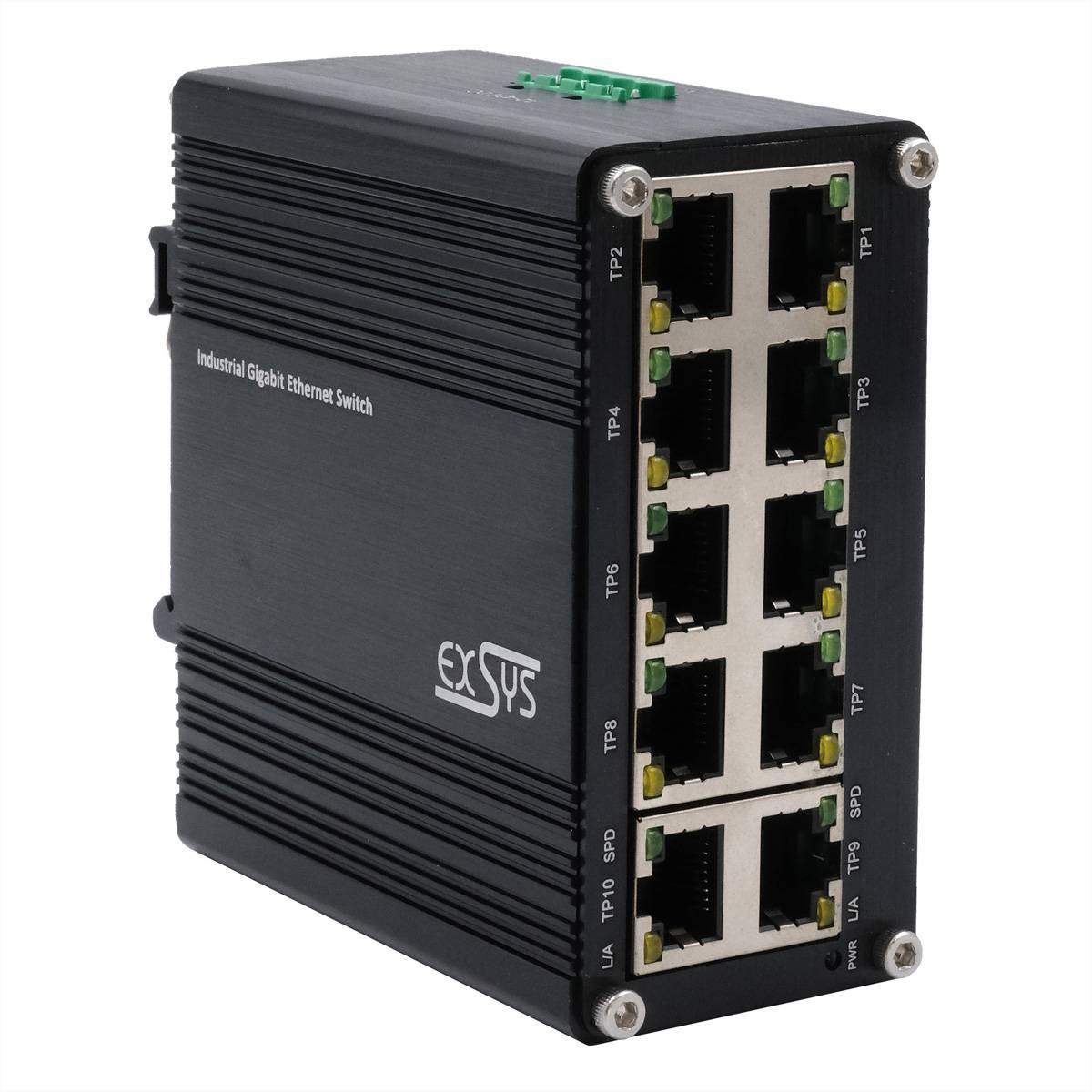

Exsys Switch Ethernet switch DIN rail 1 Gbps Black
EAN:
Part number:
Item no:
Highlights & Details
Mini 10-Port Industrial Gigabit Switch unmanaged...
- 10/100/1000T gigabit Ethernet
- Supports auto negotiation
- Supports Jumbo frames up to 9Kbytes
- Plug and Play, no configuration or installation
- Robust, very compact metal housing, IP40
Technical specifications
- Product group: Network switches
- Product type: Gigabit Ethernet switch
- Colour, black
- Gigabit Ethernet network standard
- LAN (Mbps) 10/100/1000
- Total number of ports: 10
- Gigabit Ethernet ports RJ-45: 10
- Design: Top hat rail
- Protection type (IP code): IP40
- Min. Operating temperature -40 °C
- Max. operating temperature: 80 °C
- Height: 45 mm
- Width 88 mm
- Depth: 100.9 mm
- Weight: 450g
- Packaging height 80 mm
- Package width 140 mm
- Packaging depth 190 mm
- Package weight: 0.46 kg
- Gross weight: 0.46
- Product type
Ethernet switch
1 Gbps
- Factory colour
Black
- Recess depth
100.9 mm
- Dim
(L x W) 100.9 mm x 88 mm
- Mounting type
DIN rail
- Content
1 pc(s)
- Category
LAN 10/100/1000 MBit/s
- Width
88 mm
- Length
100.9 mm
- No. of LAN ports
10 x
- Weight
0.46
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3733032 Exsys Switch Ethernet switch DIN rail 1 Gbps Black
Description
Mini 10-Port Industrial Gigabit Switch unmanaged Despite its extremely low size, the smallest industry-compatible 10-port gigabit switch EX-62025 offers full gigabit power at all 10 ports. Thanks to its robust metal casing and extended operating temperature range from -40°C to 80°C, it is suitable for a variety of applications even in rough environments. Power is supplied via terminal Block (12~48VDC) and can also be operated redundantly to reduce operational failures. The EX-62025 supports auto MDI/MDI-X and auto-negotiation. A DIN rack kit is included (pre-assembled).
This text is machine translated.
Scope of delivery
- EX-62025, DIN-Rail Kit (pre-mounted) manual
