Exsys Switch Network switch Black
EAN:
Part number:
Item no:
Mini 5-Port Industrial Gigabit PoE Switch unmanaged...
Highlights & Details
- 10/100/1000T gigabit Ethernet
- Supports auto negotiation
- Supports Jumbo frames up to 9Kbytes
- Plug and Play, no configuration or installation
- Robust, very compact metal housing, IP40
Technical specifications
- Product group: Network switches
- Product type: Gigabit Ethernet switch
- Colour, black
- Gigabit Ethernet network standard
- LAN (Mbps) 10/100/1000
- Total number of ports: 5
- Gigabit Ethernet ports RJ-45: 5
- Power over Ethernet (PoE): Yes
- Number of PoE ports 4
- Max. PoE output power per port 30 W
- Design: Top hat rail
- Protection type (IP code): IP40
- Min. Operating temperature -40 °C
- Max. operating temperature: 80 °C
- Height: 30 mm
- Width 68 mm
- Depth: 95 mm
- Weight: 370 g
- Packaging height 70 mm
- Package width 140 mm
- Packaging depth 190 mm
- Package weight: 0,366 kg
- Gross weight: 0.366
- Product type
Network switch
- Factory colour
Black
- Content
1 pc(s)
- Weight
0.368
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3734260 Exsys Switch Network switch Black
Description

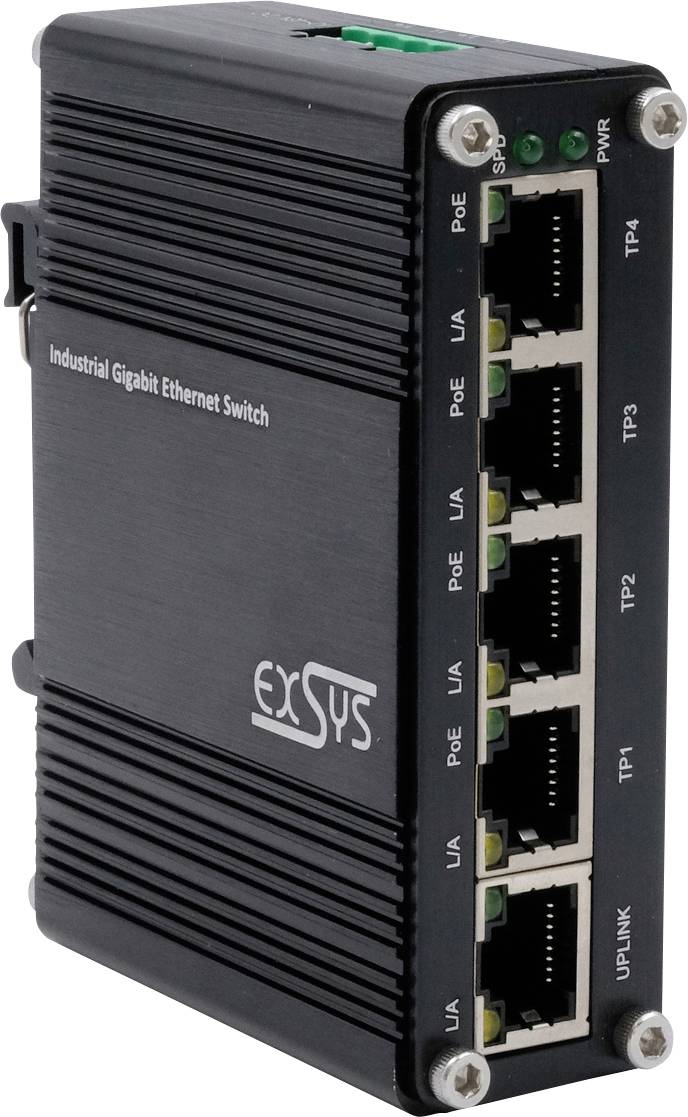

Mini 5-Port Industrial Gigabit PoE switch unmanaged Despite its small size, the extremely compact industrial-fit 5-port gigabit switch EX-620PoE offers full gigabit performance at all ports. Up to 30W are available for the connection of PoE Power devices (PD) such as IP cameras or IP phones via the downlink ports. Thanks to its robust metal casing and extended operating temperature range from -40°C to 80°C, it is suitable for a variety of applications even in rough environments. Power is supplied via terminal Block (12~48VDC) and can also be operated redundantly to reduce operational failures. The EX-620PoE supports auto MDI/MDI-X and auto-negotiation.
This text is machine translated.
Scope of delivery
- EX-62020PoE, DIN rail kit (pre-mounted), wall mounting kit, manual
