1/4
Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1185HMVS-WT interface hub USB 3.2 Gen 1 (3.1 Gen 1) type-B 5000 Mbit/s black
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Number of connections: 4
- 5000 Mbit/s
- Black
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- No. of outputs
4 x
- Interfaces (output)
USB A (USB 3.0)
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
400 g
- Width
122 mm
- Height
43.5 mm
- Depth
63 mm
- Cable length
0 mm
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Cable specs
USB 3.0
- Used at
External
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Ports quantity
4
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 85 °C
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3796849 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796849 Exsys USB-Hub USB hub Black
Description

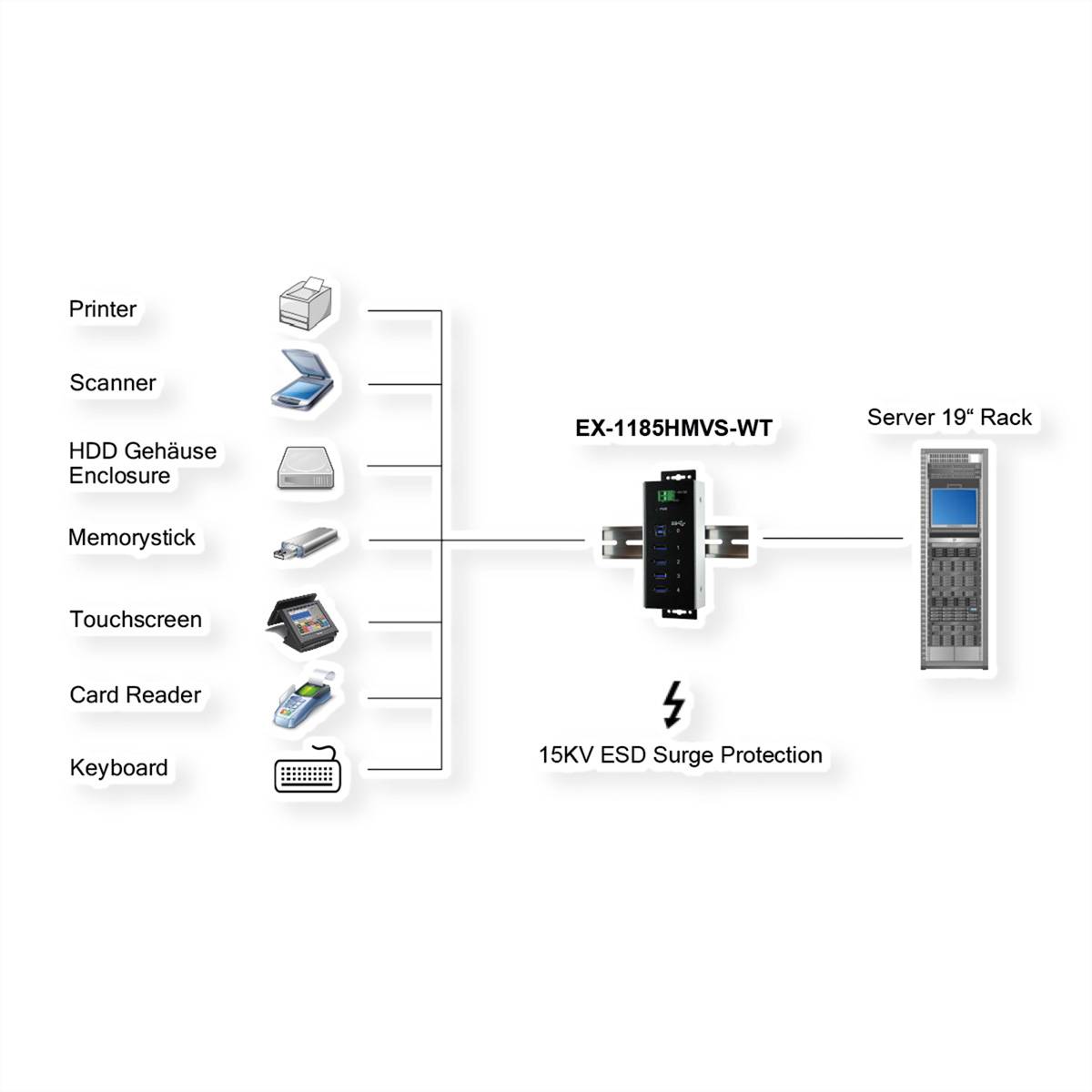

The EX-1185HMVSWT provides 4 screwable USB 3.1 (Gen1) downstream ports with a protection of the terminals against voltage fluctuations. It is thus possible to connect up to four external USB peripheral devices to a USB 3.1 (Gen1) port of the computer in the 19" rack. The provided USB cable can be attached to the EX-1185HMVS-WT without screwdriver using knurled screws. It can be used in automation and office applications. The HUB meets the special requirements of industrial applications. It is very compact and robust and supports temperatures from –40°C to +85°C degrees.
- USB 3.1 (Gen1) HUB with four ports and overvoltage protection of 15KV
- Protection of terminals against voltage fluctuations
- Supports extended temperature range from -40°C to +85°C.
- Power supply from +7V to +48V DC via terminal Block
- Easy installation with integrated mounting rail bracket (DIN-rail)
- Compact industrial design with additional side heat sinks
- Power supply optionally also from USB bus +5V (bus-Power)
- Chip set: Genesys
This text is machine translated.
- USB 3.1 (Gen1) HUB with four ports and overvoltage protection of 15KV
- Protection of terminals against voltage fluctuations
- Supports extended temperature range from -40°C to +85°C.
- Power supply from +7V to +48V DC via terminal Block
- Easy installation with integrated mounting rail bracket (DIN-rail)
- Compact industrial design with additional side heat sinks
- Power supply optionally also from USB bus +5V (bus-Power)
- Chip set: Genesys
This text is machine translated.
Scope of delivery
- EX-1185HMVS-WT, USB 3.0 Screw-in Cable, Manual, DIN Rail Kit (EX-6099)
