Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1177HMVS-WT interface hub USB 2.0 Type-B 480 Mbit/s black, white
- Host Interface USB 2.0 Type B
- Hub interfaces USB 2.0
- Number of connections: 7
- 480 Mbit/s
- Black, White
Technical specifications
- Host Interface USB 2.0 Type B
- Data transfer rate 480 Mbit/s.
- Product type
USB hub
- No. of outputs
7 x
- Interfaces (output)
USB type A
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
600 g
- Width
36.3 mm
- Height
113 mm
- Depth
61.5 mm
- Cable length
0 mm
- No. of USB A 2.0 ports
7 x
- Cable specs
USB 2.0
- Transfer rate (max.)
480 MBit/s
- Used at
External
- Input voltage
7 - 48 V
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Ports quantity
7
- Operating relative humidity (H-H)
5 - 95 %
Documents & Downloads
Datasheet
Datasheet 3796872 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796872 Exsys USB-Hub USB hub Black
Description

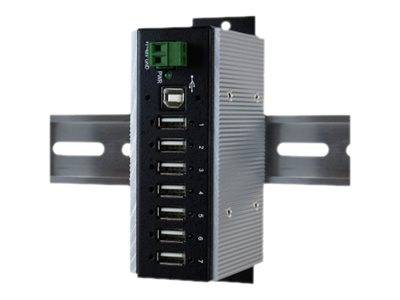

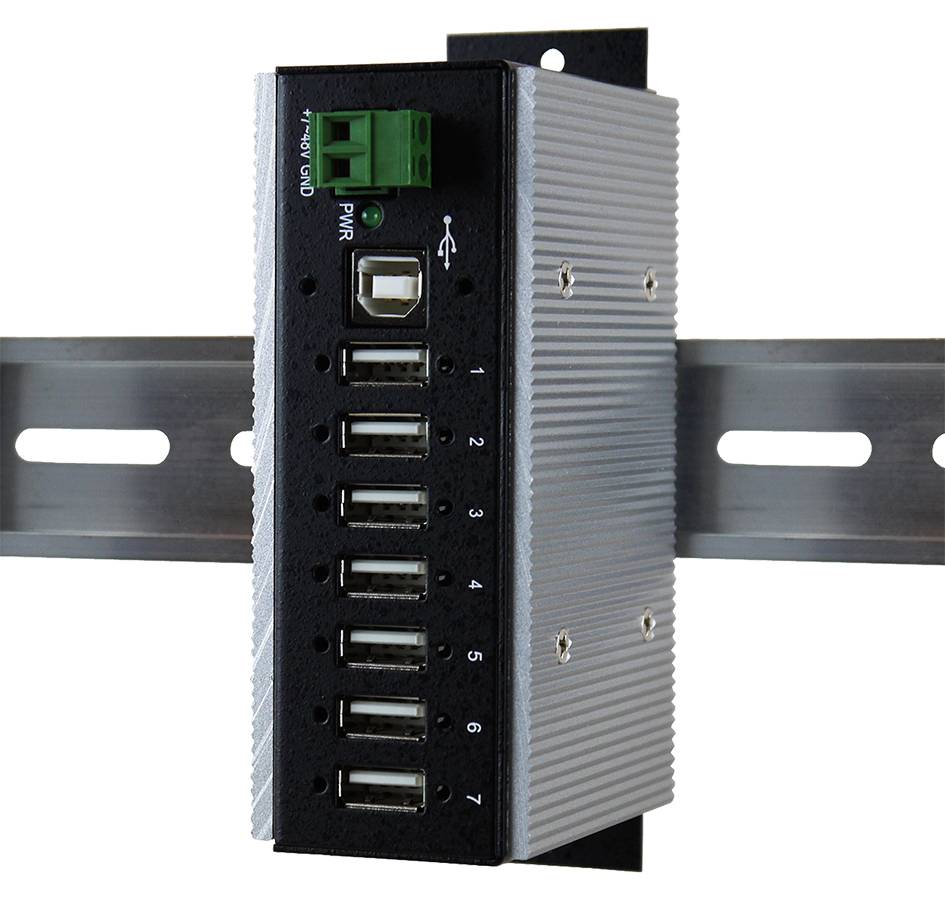

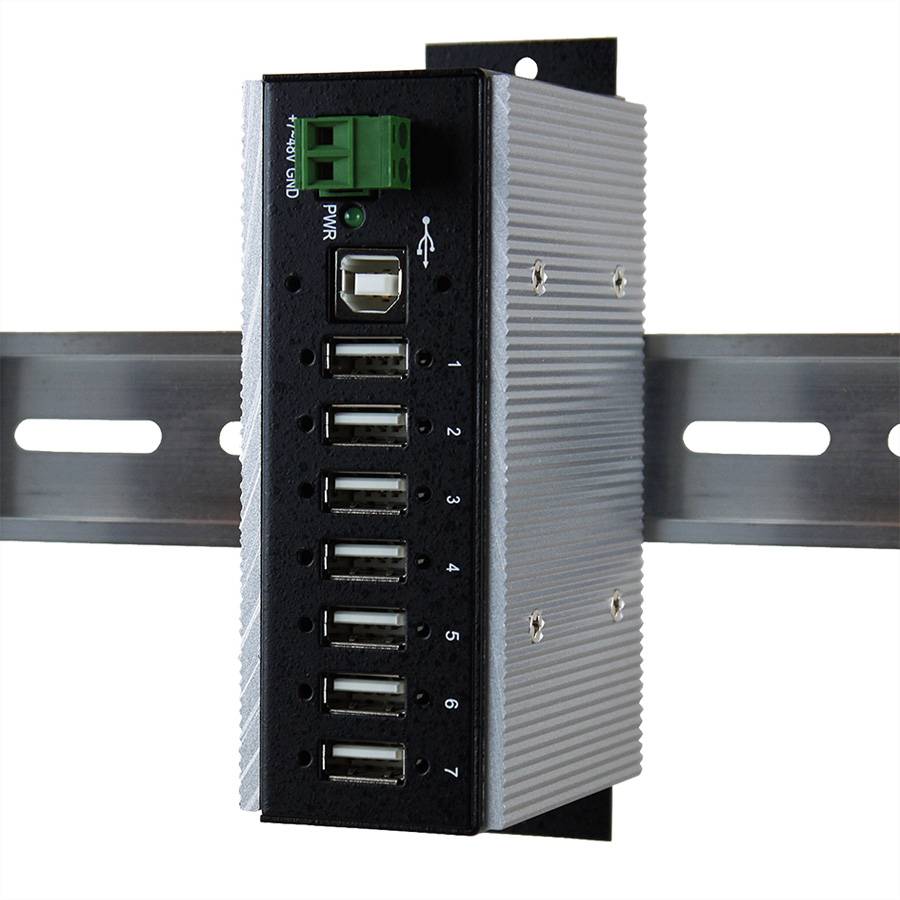

The EX-1177HMVS-WT provides 7 screwable USB 2.0 downstream ports with a 15KV ESD protection of the terminals against voltage fluctuations. It is thus possible to connect up to seven external USB peripheral devices to a USB 2.0 port of the computer in the 19" rack. The supplied USB cable can be attached to the EX-1177HMVS-WT with knurled screws without screwdriver. It can be used in automation and office applications. The HUB meets the special requirements of industrial applications. It is very compact and robust and supports temperatures from –40°C to +85°C degrees.
This text is machine translated.
This text is machine translated.
Features
- Exsys Ex 1177HMVS-WT – hub – 7 connections
- Device type: Hub - 7 connections
- Sub-type: USB
- Ports : 7 x USB 2.0
- Features : 15 KV Electrostatic Discharge Protection
- Product Certifications : USB 2.0
- Power supply: DC 7 - 48 V.
- Dimensions (width x depth x height): 11.3 cm x 6,153 cm x 3.63 cm
- Weight: 600 g
Scope of delivery
- EX-1177HMVS-WT, USB 2.0 cable (2.0meters), DIN rail kit, manual
