Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1195HMS port hub USB 3.2 Gen 1 (3.1 Gen 1) type C 5000 Mbit/s black
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Hub interfaces: USB 3.2 3.1 Gen 1 (3.1 1 1st Gen) Type-A, USB 3.2 1st Gen (1 Gen 1) Type-C
- Number of connections: 4
- 5000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- Factory colour
Black
- Weight
400 g
- Width
114.5 mm
- Height
26.3 mm
- Depth
57.3 mm
- Cable length
1 m
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- Material (details)
Metal
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Ports quantity
4
- Operating temperature (T-T)
32 - 131 °F
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3796874 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796874 Exsys USB-Hub USB hub Black
Description

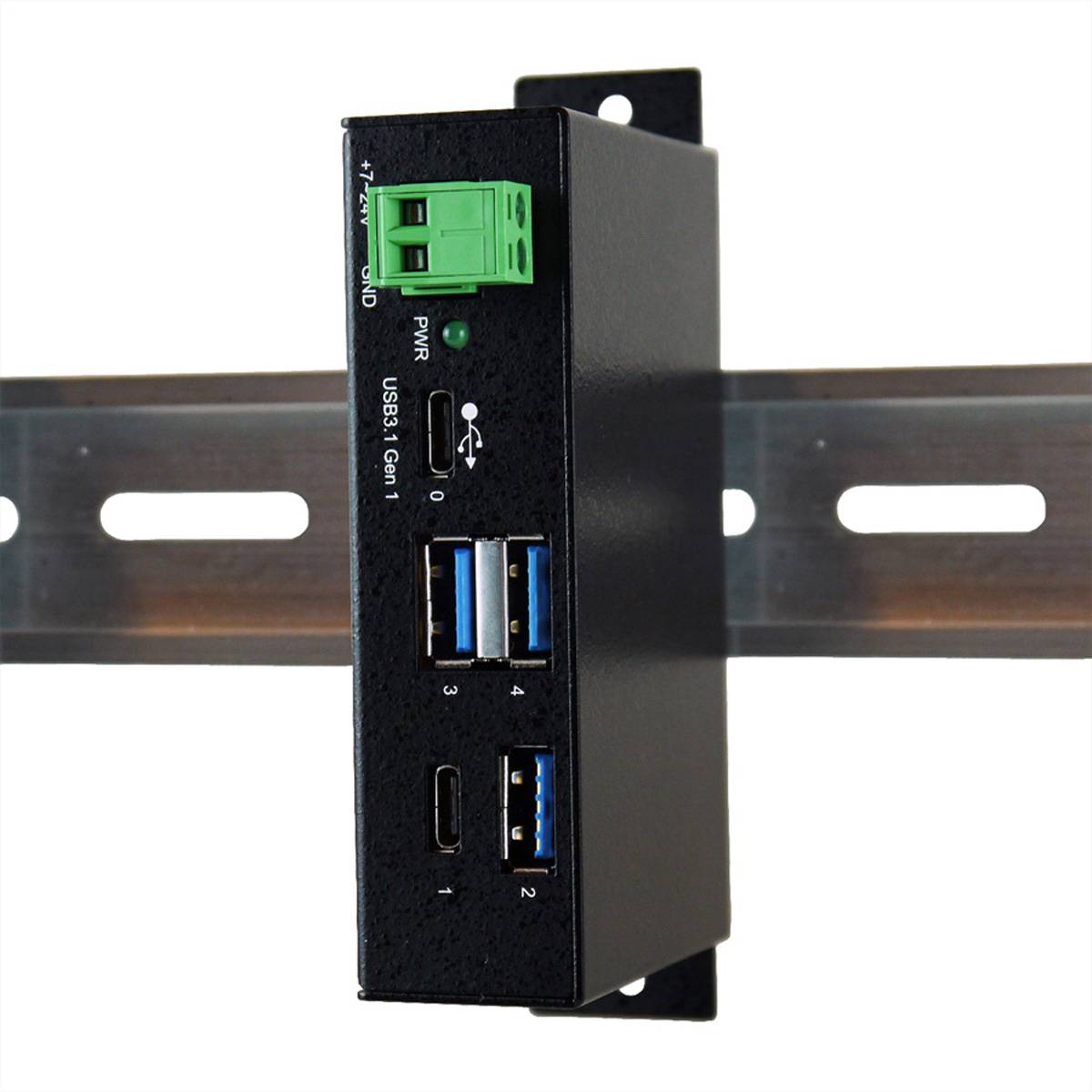

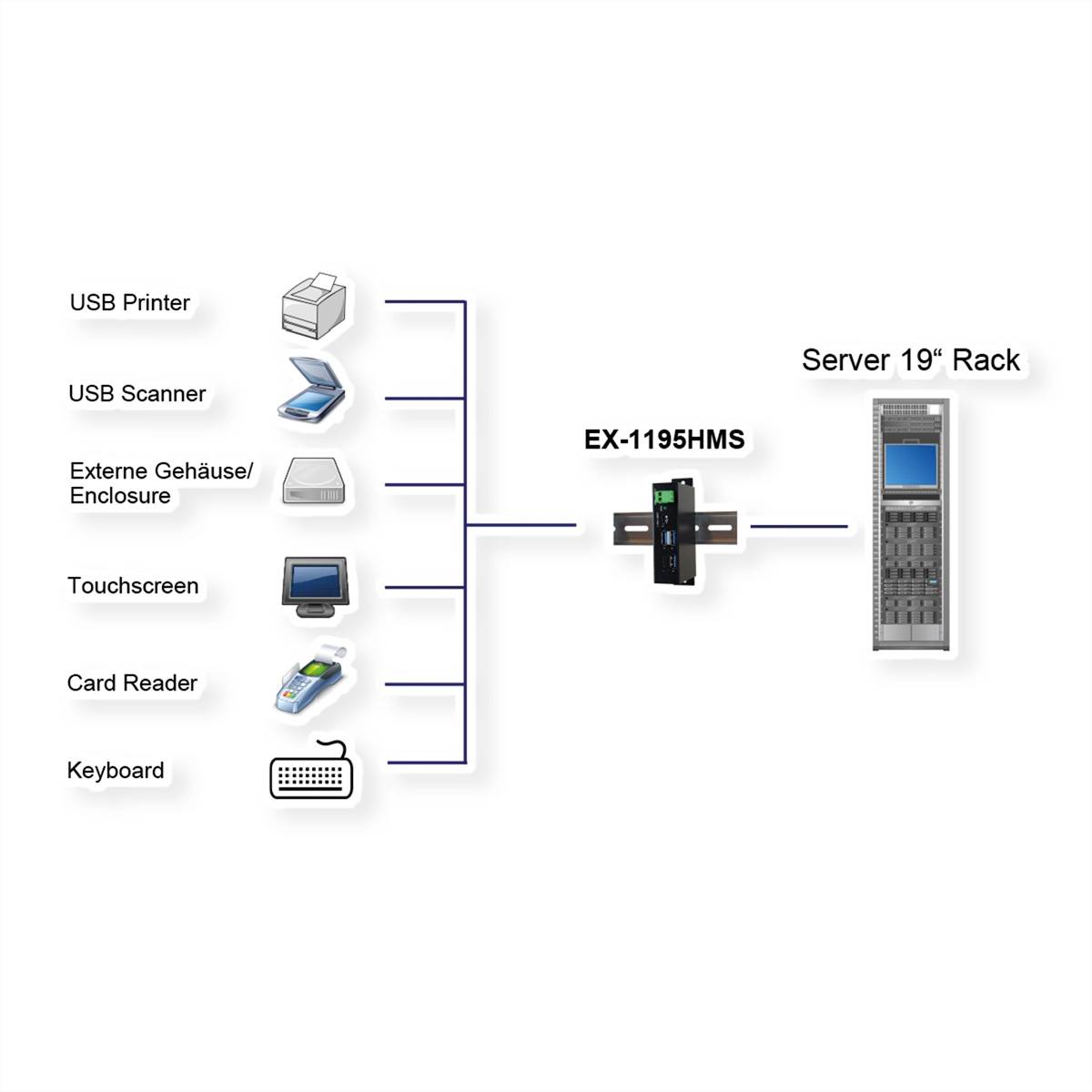

The EX-1195HMS is a USB 3.0/3.1(Gen1) metal HUB which complies with the specifications of the Universal Serial Bus (USB) Revision 3.1(Gen1) and works with a data speed of up to 5 Gbps. It offers a USB-C upstream port and 4 downstream ports with 15KV ESD surge protection for each port. Port 1 is equipped with a new C socket. It is thus possible to connect up to four external USB peripheral devices to a USB 3.0 port of the computer in the 19" rack. It can be used in automation and office applications. The HUB meets the special requirements of industrial applications.
- USB 3.0 HUB with one USB C and three A ports
- 15KV ESD surge protection
- Protection of terminals against voltage fluctuations
- Power supply from +7V to +48V DC via terminal Block
- Easy installation with integrated mounting rail bracket (DIN-rail)
- Supports 900mA USB bus Power for each output
- Supports the fast USB battery charging: CDP and DCP mode
- Supports all USB 1.1 to 3.0/3.1(Gen1) compatible peripherals
- Power supply optionally also from USB bus +5V (bus-Power)
- Fully equipped USB C port with an active two-side connector and cable orientation
This text is machine translated.
- USB 3.0 HUB with one USB C and three A ports
- 15KV ESD surge protection
- Protection of terminals against voltage fluctuations
- Power supply from +7V to +48V DC via terminal Block
- Easy installation with integrated mounting rail bracket (DIN-rail)
- Supports 900mA USB bus Power for each output
- Supports the fast USB battery charging: CDP and DCP mode
- Supports all USB 1.1 to 3.0/3.1(Gen1) compatible peripherals
- Power supply optionally also from USB bus +5V (bus-Power)
- Fully equipped USB C port with an active two-side connector and cable orientation
This text is machine translated.
Scope of delivery
- EX-1195HMS, USB A-to-C cable manual, DIN Rail Kit (EX-6099)
