Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1110HMVS-WT interface hub USB 3.2 Gen 1 (3.1 Gen 1) type B 5000 Mbit/s black
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Number of connections: 10
- 5000 Mbit/s
- Black
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- Factory colour
Black
- Weight
660 g
- Width
197.5 mm
- Height
31 mm
- Depth
61.5 mm
- Cable length
1.5 m
- No. of USB type A 3.1 / 3.2 1st Gen
10 x
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Ports quantity
10
- Operating temperature (T-T)
-40 - 185 °F
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 85 °C
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3796876 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796876 Exsys USB-Hub USB hub Black
Description

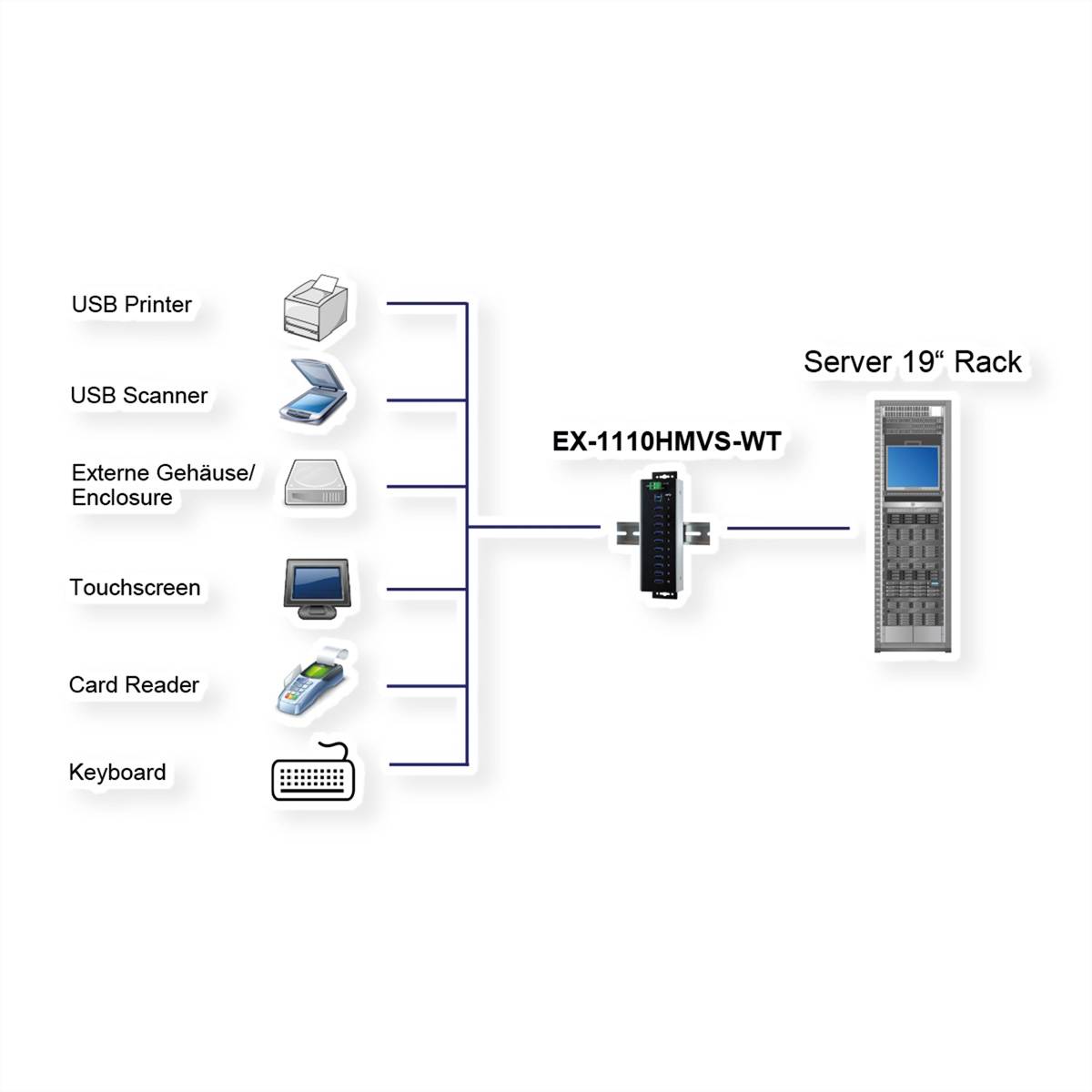

The EX-1110HMVS-WT provides 10 screw-able USB 3.1 (Gen1) downstream ports with a 15KV ESD protection of the terminals against voltage fluctuations. It is thus possible to connect up to ten external USB peripheral devices to a USB 3.1 (Gen1) port of the computer in the 19" rack. The included USB cable can be attached to the EX-1110HMVS-WT with knurled screws without screwdriver. It can be used in automation and office applications. The HUB meets the special requirements of industrial applications. It is very compact and robust and supports temperatures from –40°C to +85°C degrees.
This text is machine translated.
This text is machine translated.
Features
- USB 3.1 (Gen1) HUB with 15KV ESD surge protection for all 10 ports
- Protection of the terminals against voltage fluctuations
- Supports extended temperature range from –40°C to +85°C.
- +7V to +24V DC power supply via terminal Block

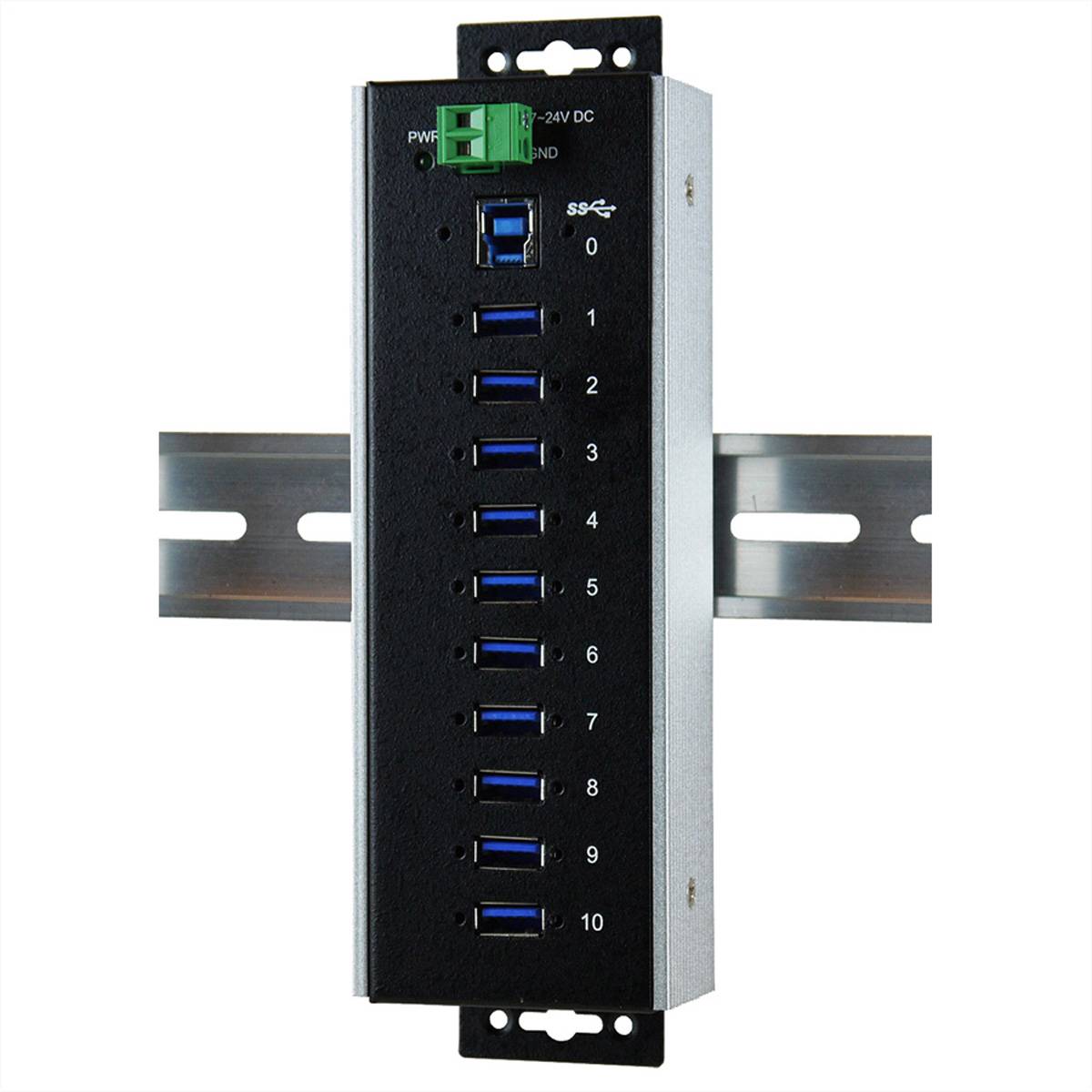

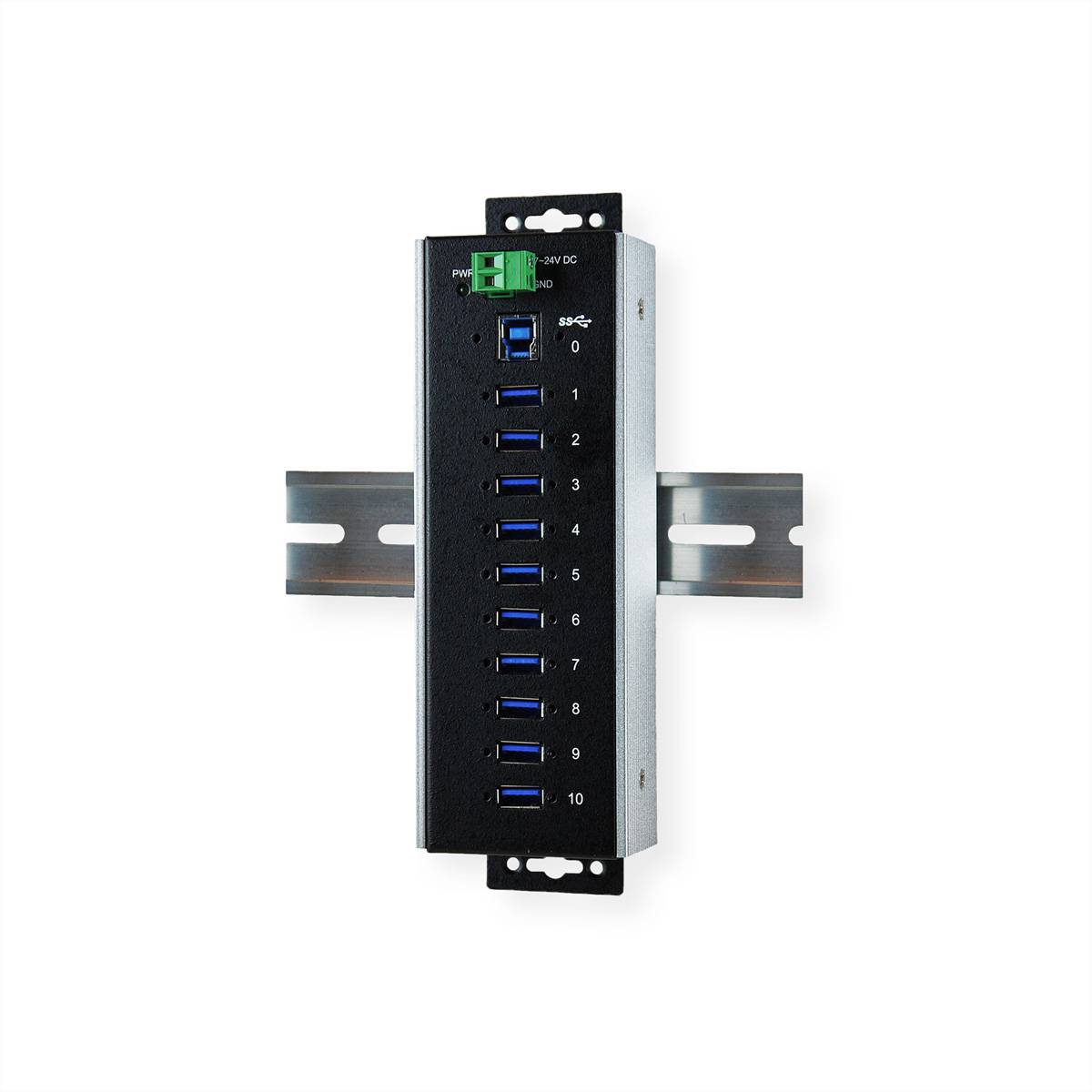

- Simple installation with integrated mounting rail bracket (DIN-rail)
- Compact industrial design with additional side heatsink
- Power supply optionally also from the USB-BUS +5V (bus-Power)
- Supports simultaneously up to the 1.5A USB bus Power for each output
- Supports battery charging CDP and DBP mode
- Genesys chip set
Scope of delivery
- EX-1110HMVS-WT, USB cable A to B connector, DIN rail kit, manual
