Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
EXSYS EX-1504HMS port hub USB 3.2 Gen 1 (3.1 Gen 1) type B 5000 Mbit/s black
Highlights & Details
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Number of connections: 5
- 5000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- No. of outputs
4 x
- Interfaces (output)
USB A (USB 3.2 1st gen)
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
450 g
- Width
114.6 mm
- Height
26 mm
- Depth
67.4 mm
- Cable length
1.5 m
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Material (details)
Metal
- Max. output current
2.4 A
- Used at
External
- Type
DC
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Ports quantity
5
- Operating temperature (T-T)
32 - 131 °F
- Quantity per pack
1 Stück(e)
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
Documents & Downloads
Datasheet
Datasheet 3796897 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796897 Exsys USB-Hub USB hub Black
Description

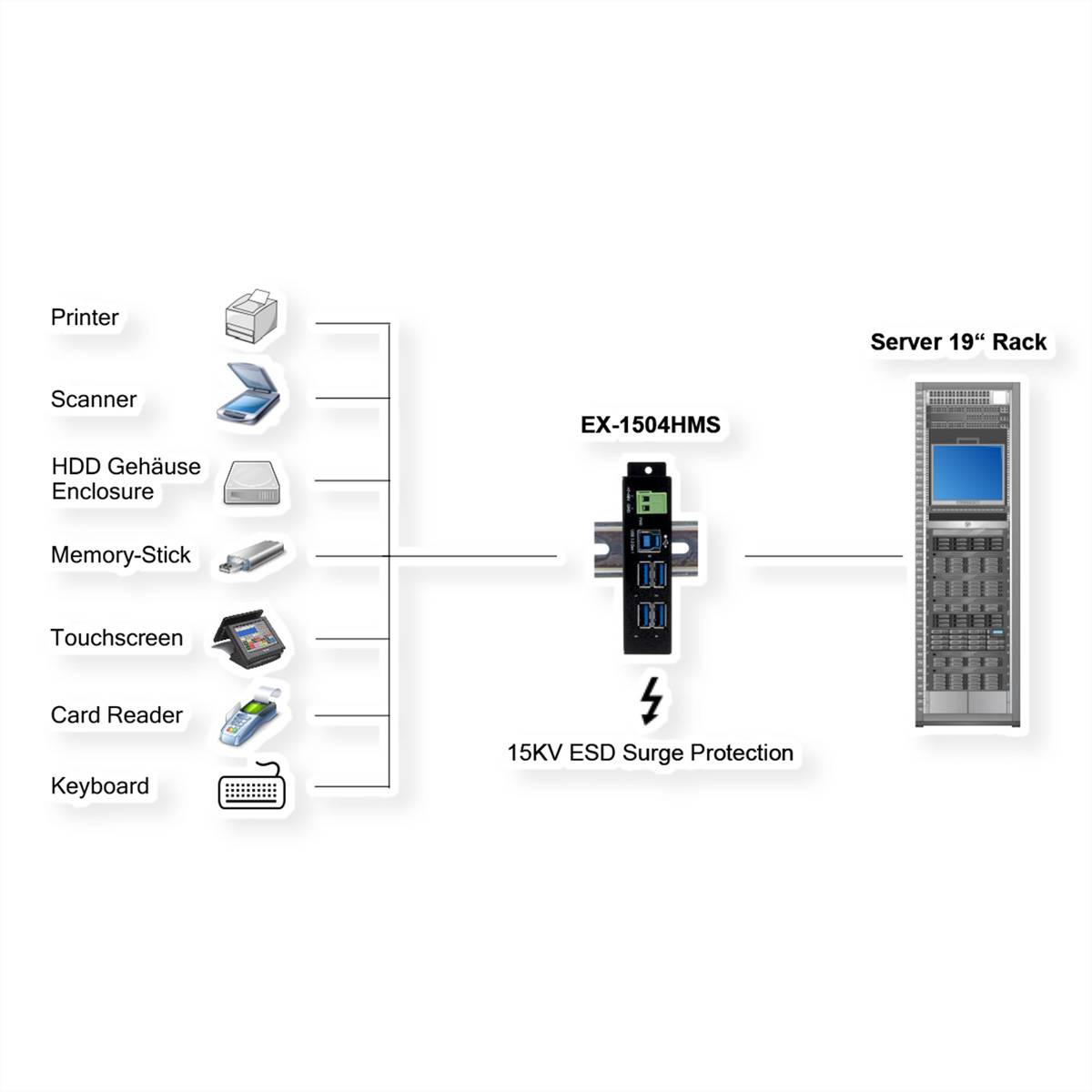

The EX-1504HMS is a Managed USB 3.2 Gen1 Metal HUB (also commonly referred to as USB 3.0 or 3.1 Gen1) designed to provide comprehensive and unique features for industrial applications. It offers you an immediate extension of four USB 3.2 1st Gen ports and is compatible with all existing USB 3.1, USB 3.0, USB 2.0 and USB 1.1 devices. The EX-1504HMS supports the USB battery charging specifications v1.2 (SDP, CDP, DCP) as well as some manufacturer-specific charging modes like Apple 2.4A and Samsung.
The EX-1504HMS has management software, which allows you to switch on and off the USB bus voltage (ports) of the individual devices or to reset the entire USB hub to its original state. The EX-1504HMS has a flash memory, where the desired start-up status can be saved. The next time you turn the unit on, the last settings will be used. Various utilities are supported for operating systems such as Windows, Intel x86-64, and ARM-based Linux. It contains several management software utilities, for the different platforms such as GUI software (graphical user interface) or also the console command line for all common Microsoft Windows systems. It also includes utilities for various versions of Linux. The utilities have been written to work with the application software that has been programmed with different languages such as C#, C++, VB, Python, or even PHP Server script language.
This text is machine translated.
The EX-1504HMS has management software, which allows you to switch on and off the USB bus voltage (ports) of the individual devices or to reset the entire USB hub to its original state. The EX-1504HMS has a flash memory, where the desired start-up status can be saved. The next time you turn the unit on, the last settings will be used. Various utilities are supported for operating systems such as Windows, Intel x86-64, and ARM-based Linux. It contains several management software utilities, for the different platforms such as GUI software (graphical user interface) or also the console command line for all common Microsoft Windows systems. It also includes utilities for various versions of Linux. The utilities have been written to work with the application software that has been programmed with different languages such as C#, C++, VB, Python, or even PHP Server script language.
This text is machine translated.
Features

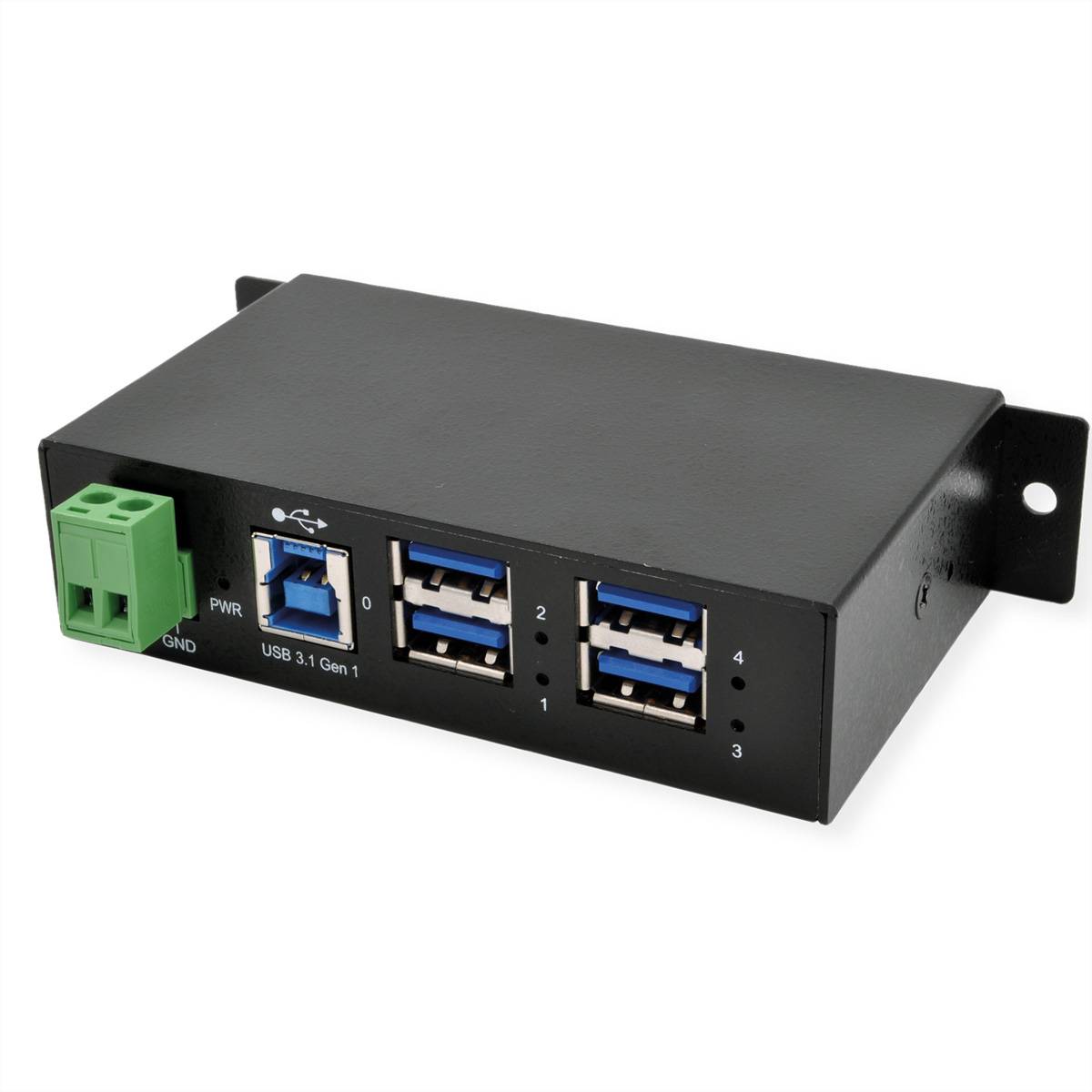

- USB 3.2 Gen1 metal HUB with four downstream USB ports
- Supports software utilities for Windows and Linux
- 15KV ESD surge protection for each output
- +7V to +48V DC power supply via Terminal Block
- Power supply optionally also from the USB-BUS +5V (bus-Power)

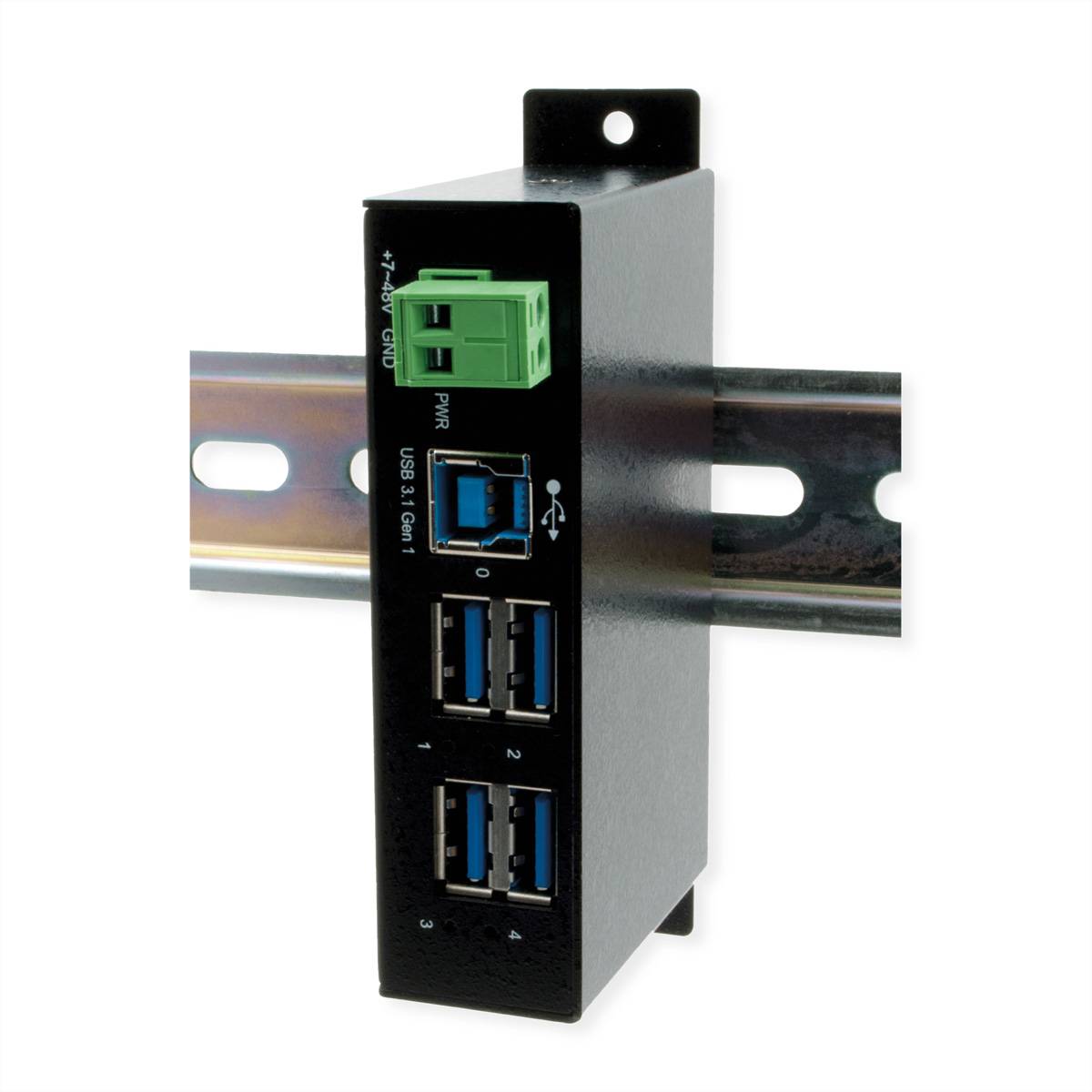

- Simple installation with integrated mounting rail bracket (DIN-rail)
- Compact industrial design
- Automatic detection of the data transfer rate for attached peripheral devices
- 2.4A maximum power on all 4 ports
- Automatic detection of the input polarity at the current terminal strip
- Supports Multi TT (Transaction Translator)
- Heavy duty metal casing
- 1x LED voltage display and 4x LED active display

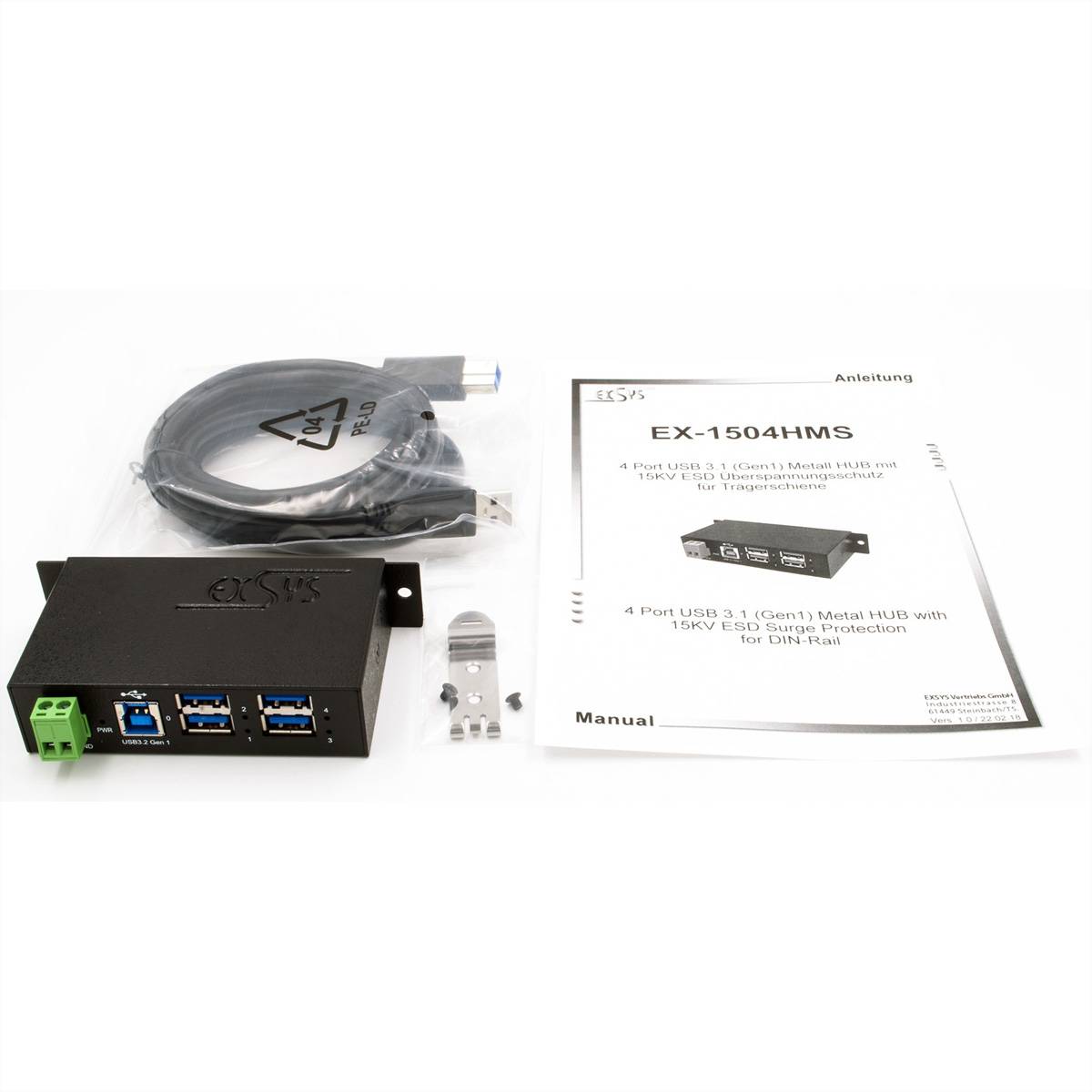

Scope of delivery
- EX-1504HMS, USB 3.2 Gen1 cable (1.5 meters), DIN Rail Kit, driver CD, manual
