Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1181HMS port hub USB 3.2 Gen 1 (3.1 Gen 1) type B 5000 Mbit/s black
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Number of connections: 4
- 5000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- No. of outputs
4 x
- Interfaces (output)
USB A (USB 3.2 1st gen)
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
0.404
- Width
24.4 mm
- Height
81.7 mm
- Depth
46.6 mm
- Cable length
1.5 m
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Material (details)
Metal
- Used at
External
- Input voltage
7 - 48 V
- UKCA
yes
- Ports quantity
4
- Terminal block port
yes
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3796904 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796904 Exsys USB-Hub USB hub Black
Description
Smallest 4 Port USB 3.2 Gen1 Metal HUB with 15KV ESD with overvoltage protection The smallest EXSYS metal HUB provides four USB 3.2 Gen1 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to four external USB peripheral devices to a USB 3.2 Gen1 port of the computer in the 19" rack or special housing. It can be used in automation and office applications. The EX-1181HMS meets the special requirements of industrial applications.
This text is machine translated.
Features
- Exsys EX-1181HMS - Hub - 4 connections
- Device type: Hub - 4 connections
- Sub-type: USB
- Ports : 4 x USB 3.2 1st Gen 1
- Features : Power supply via USB, 15KV ESD Protector, metal housing
- Product certificates : USB 2.0, USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1
- Power supply: DC 7 - 48 V.
- Dimensions (width x depth x height): 8.17 cm x 4.66 cm x 2.44 cm
- Weight: 478 g
- Colour: black
- System requirements : Linux, Microsoft Windows 2000 server, Microsoft Windows 98 second edition / Windows 2000, Apple Mac OS X 10.x, Microsoft Windows Server 2003, Microsoft Windows Vista / XP, Microsoft Windows Server 2008, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits)
Scope of delivery
- EX-1181HMS

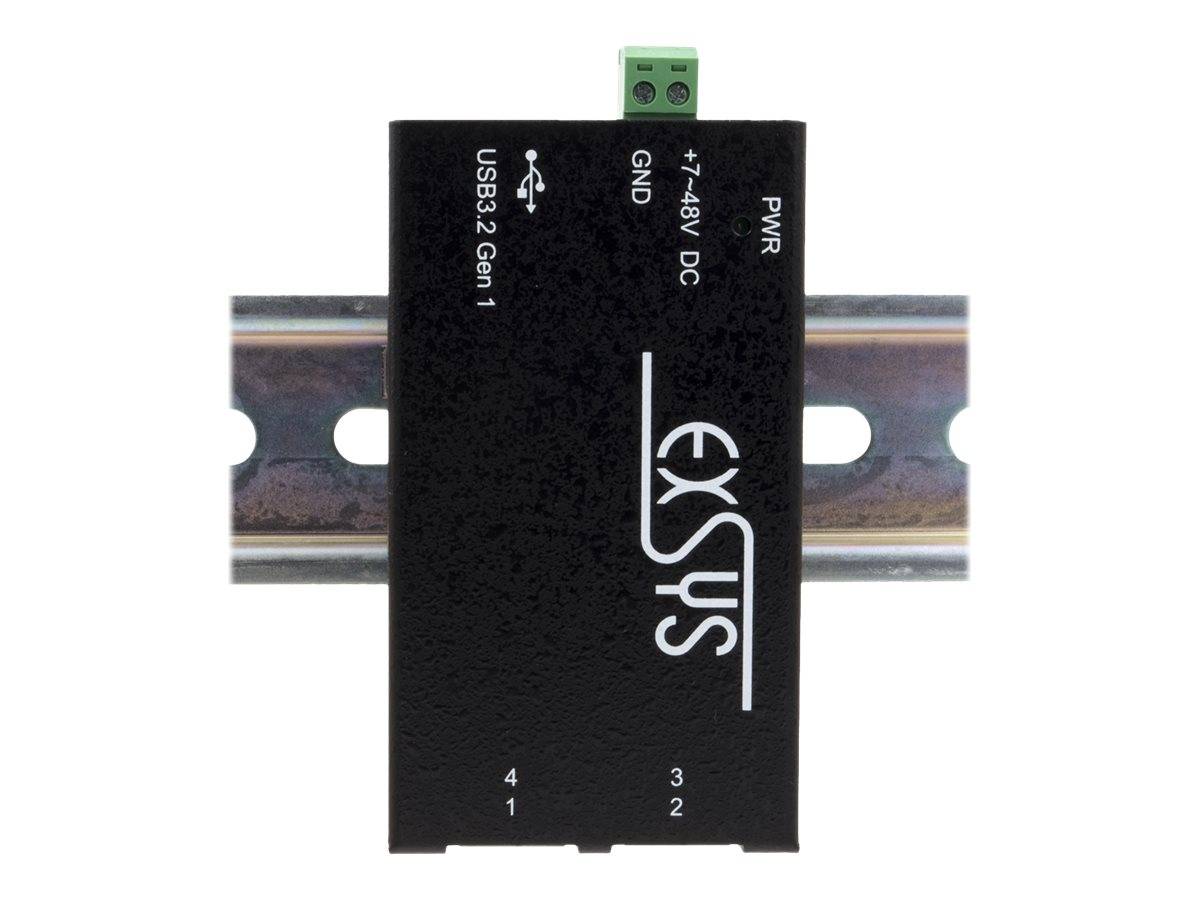

- USB cable, DIN-rail kit
- Manual, metal plate for mounting
