Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

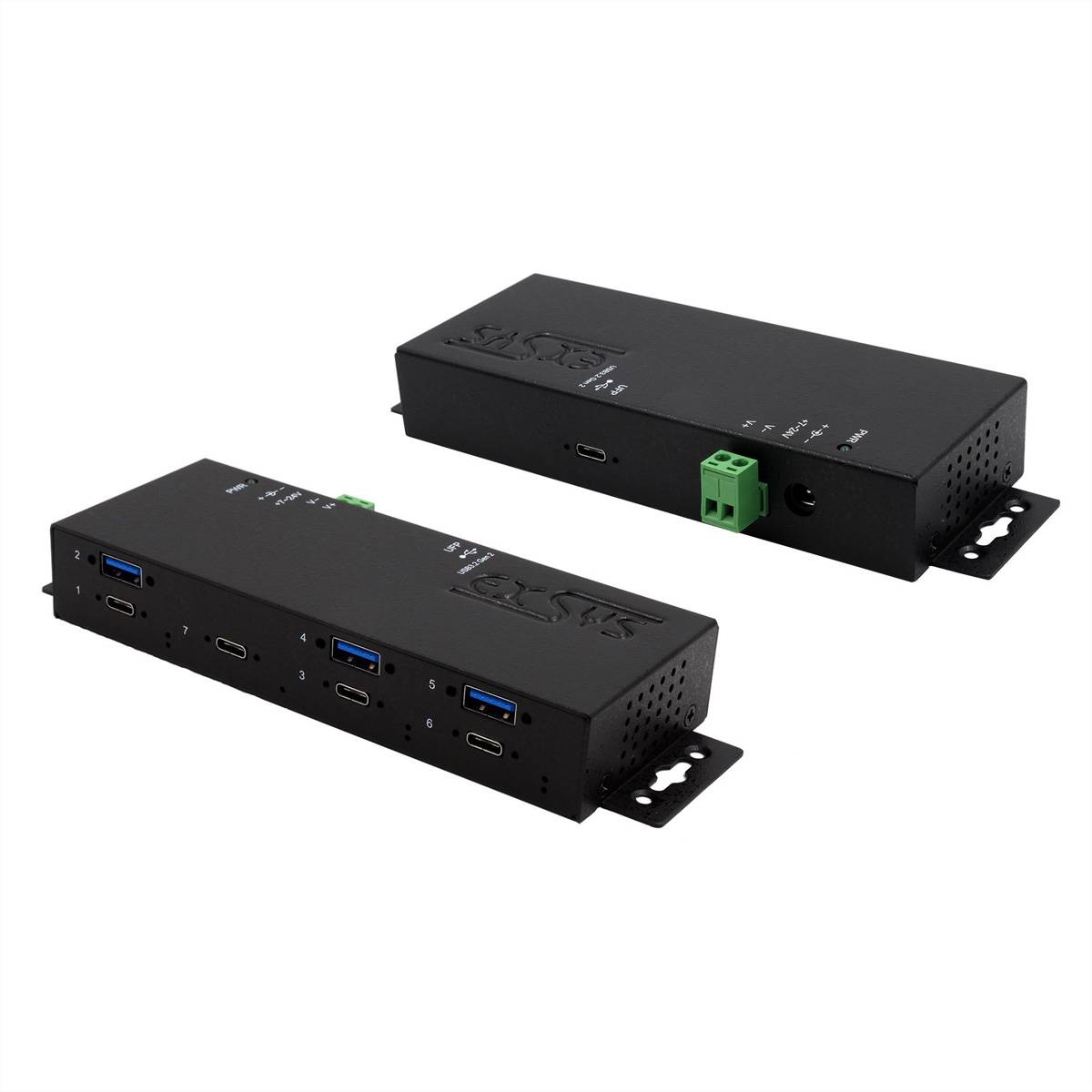

EXSYS EX-1237HMVS port hub USB 3.2 Gen 1 (3.1 Gen 1) type C 5000 Mbit/s black
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Hub interfaces: USB 3.2 3.1 Gen 1 (3.1 1 1st Gen) Type-A, USB 3.2 1st Gen (1 Gen 1) Type-C
- Number of connections: 7
- 5000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- No. of outputs
7 x
- Interfaces (output)
USB C® (USB 3.2 2nd gen)
USB A (USB 3.2 2nd gen)
- Distributor/switch features
+ quick-charge port
LED display
Steel casing
- Factory colour
Black
- Weight
0.751
- Width
68.9 mm
- Height
178.6 mm
- Depth
23.2 mm
- Cable length
1 m
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- Cable specs
USB 3.2 2nd Gen
- Transfer rate (max.)
10 GBit/s
- Material (details)
Metal
- Used at
External
- UKCA
yes
- Ports quantity
7
- Terminal block port
yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
4
- DC-in jack
yes
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3796906 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796906 Exsys USB-Hub USB hub Black
Description

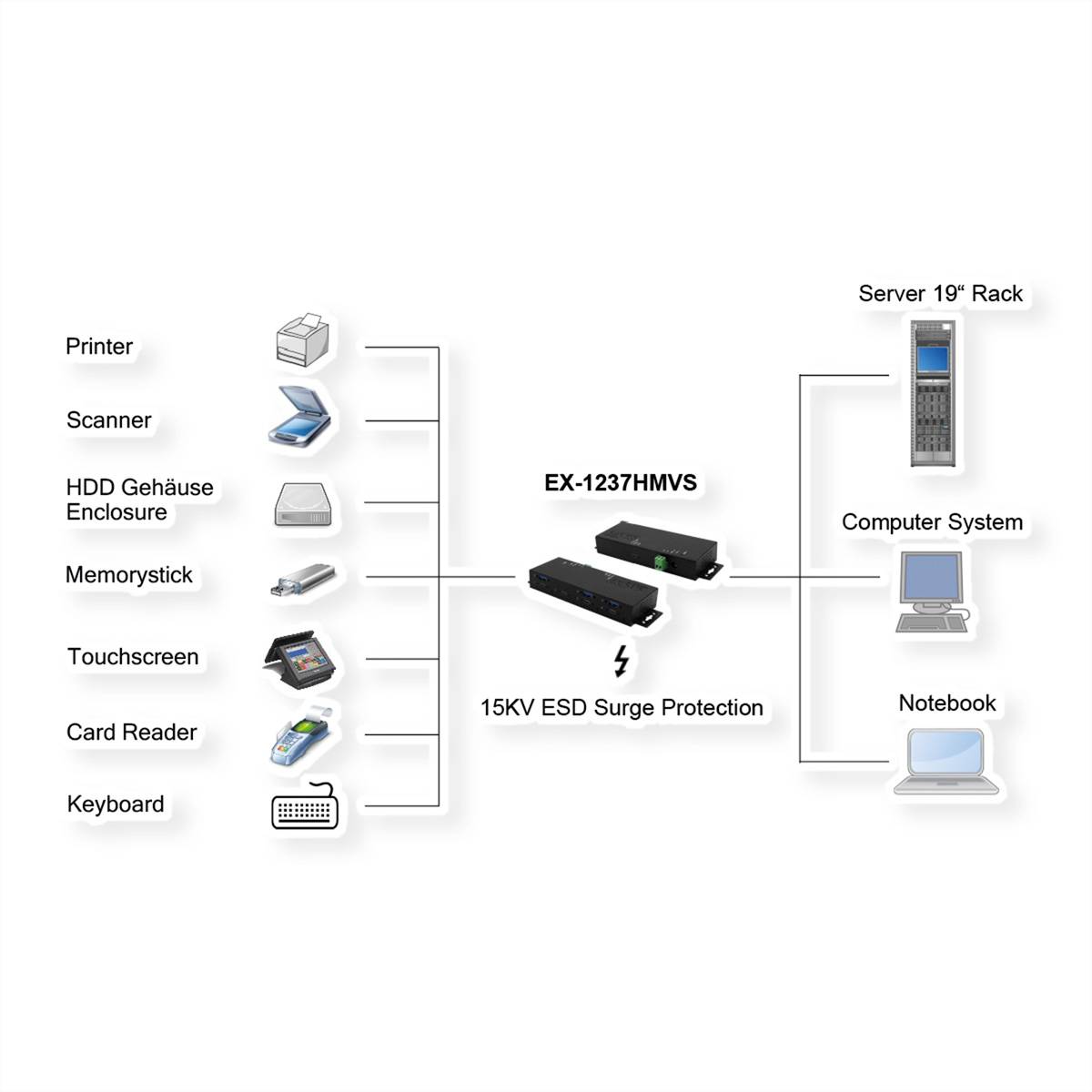

USB 3.2 (Gen2) HUB with four USB-C and three USB-A connectors The EX-1237HMVS is a USB 3.2 Gen2 Metal HUB and meets the specifications of the Universal Serial Bus (USB) Revision 3.2 Gen2 and operates with a data transfer rate of up to 10Gbps. It offers a USB-C upstream port as well as 7 downstream ports with four USB-C ports for screw mounting as well as three USB-A ports. With the integrated RISC USB controller the EX-1237HMVS supports a simultaneous operation of terminals with different speeds of SuperSpeed plus(SS+), SuperSpeed (SS), high speed (HS), full speed (FS) and low speed (LS). It can be used in automation and office applications.
This text is machine translated.
Features
- Exsys EX-1237HMVS - hub - 7 connections
- Device type: Hub - 7 connections
- Sub-type: USB
- Ports : 3 x USB 3.2 Gen 2 + 4 x USB-C 3.2 Gen 2
- Performance : Maximum data transfer rate: 10 Gbps
- Features : power supply via USB, surge protection, overvoltage protection, 15KV ESD Protector, metal housing, supports quick charge function
- Product certificates : USB 1.1, USB 2.0 1, USB 3.0, USB 3.1 1st Gen, USB 3.2 1st Gen 2
- Dimensions (width x depth x height): 17.86 cm x 6.89 cm x 2.32 cm
- Weight: 756 g
- System requirements : Microsoft Windows CE, Microsoft Windows 98 Second Edition, Linux, Microsoft Windows 2000 Server, Apple MacOS X 10.x, Microsoft Windows Server 2003, Microsoft Windows 2000/XP/Vista/7, Microsoft Windows Server 2008, Microsoft Windows Server 2012 R2, Windows 10 (32/64 bits), Windows 8.x

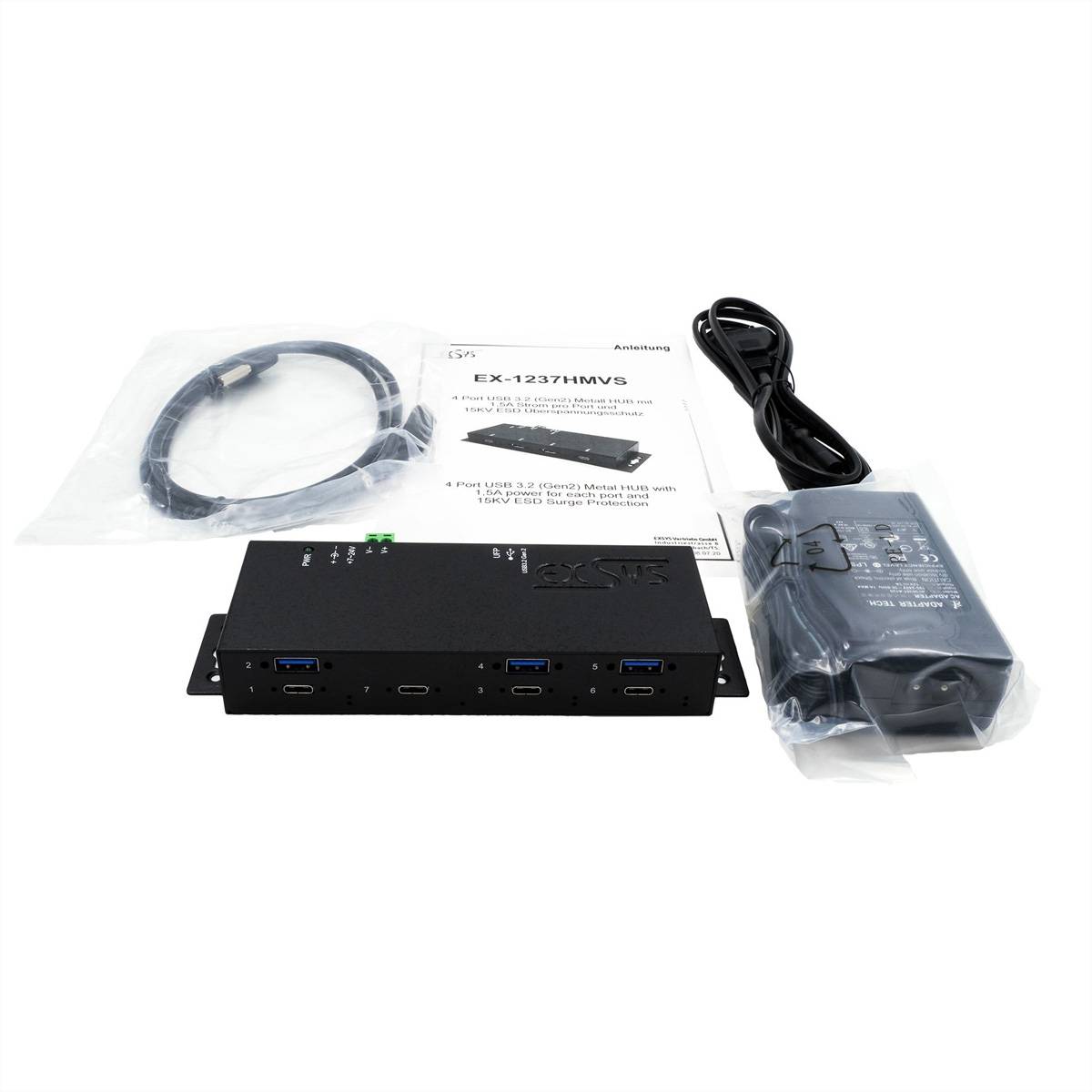

Scope of delivery
- EX-1237HMVS, USB C-to-C cable, power supply 12V/3A, manual
