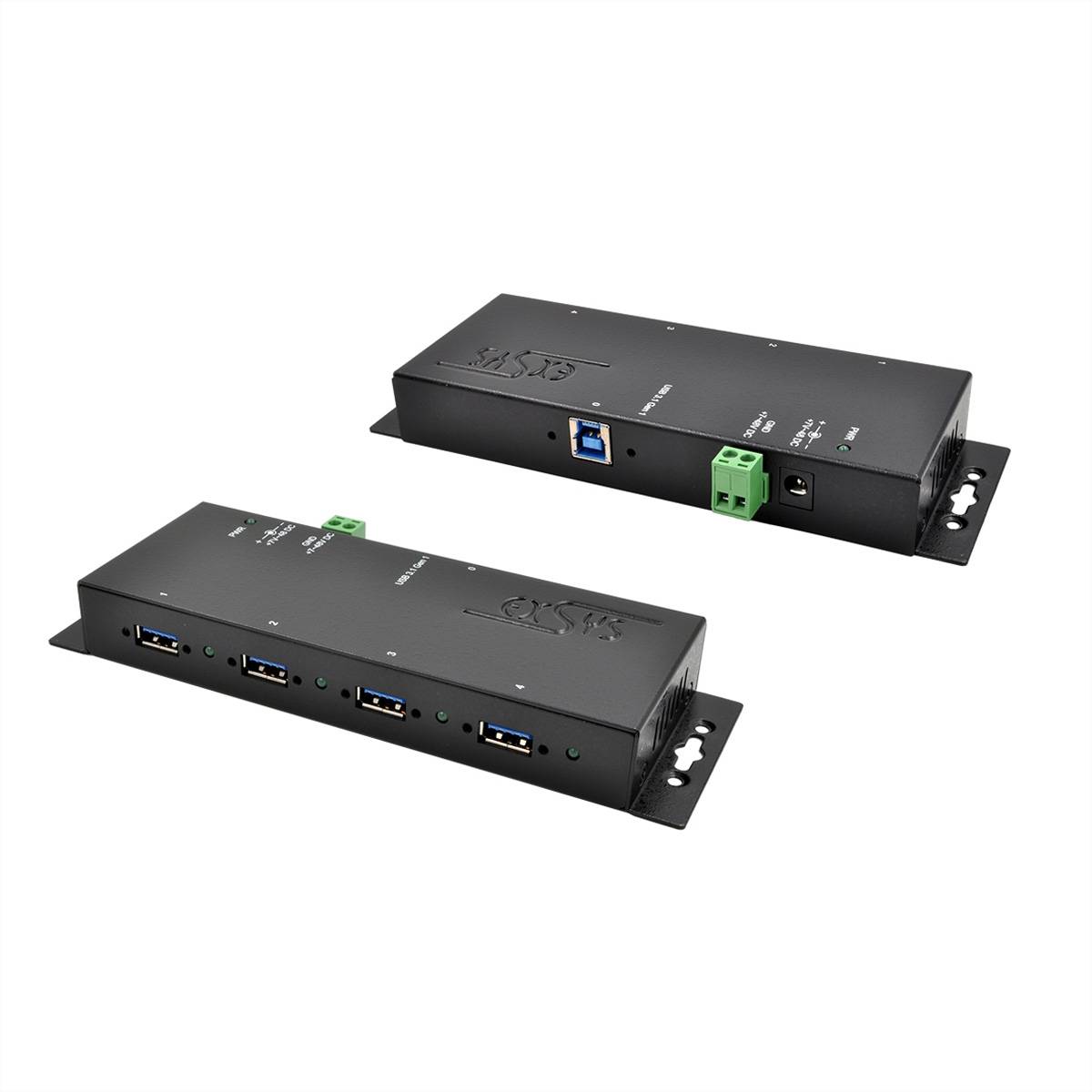

Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1183HMVS-2 port hub USB 3.2 Gen 1 (3.1 Gen 1) type B 5000 Mbit/s black

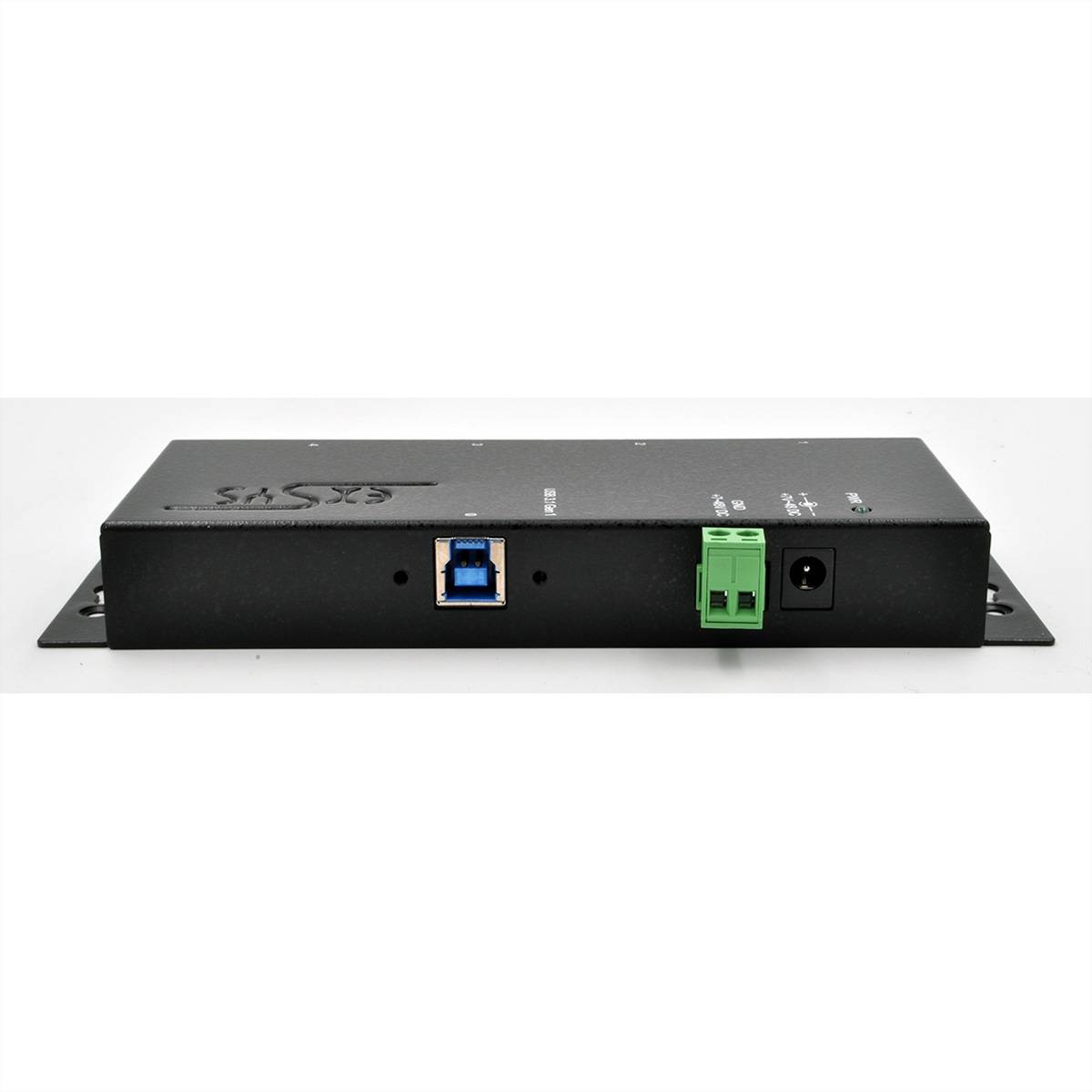

- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B

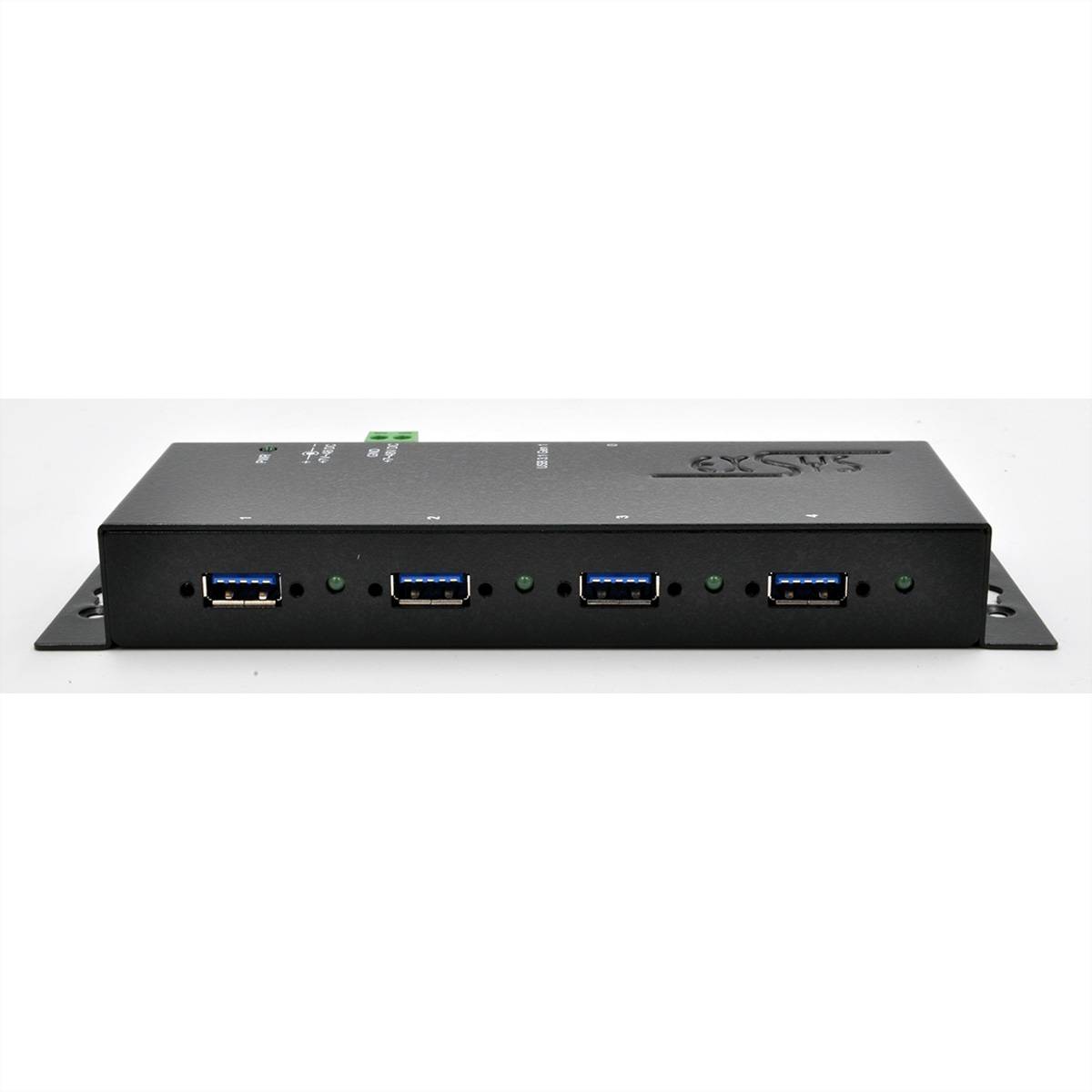

- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Number of connections: 4
- 5000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- No. of outputs
4 x
- Interfaces (output)
USB A (USB 3.2 1st gen)
- Distributor/switch features
Steel casing
+ LED indicator lights
meets industrial requirements
Rack-mounting option
wall mount option
- Factory colour
Black
- Weight
0.761
- Width
69.3 mm
- Height
23 mm
- Depth
178.5 mm
- Cable length
1.5 m
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Material (details)
Metal
- Used at
Fixed
- Type
DC
- Input voltage
7 - 48 V
- UKCA
yes
- Ports quantity
4
- Terminal block port
yes
- DC-in jack
yes
Documents & Downloads
Datasheet
Datasheet 3796915 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796915 Exsys USB-Hub USB hub Black
Description

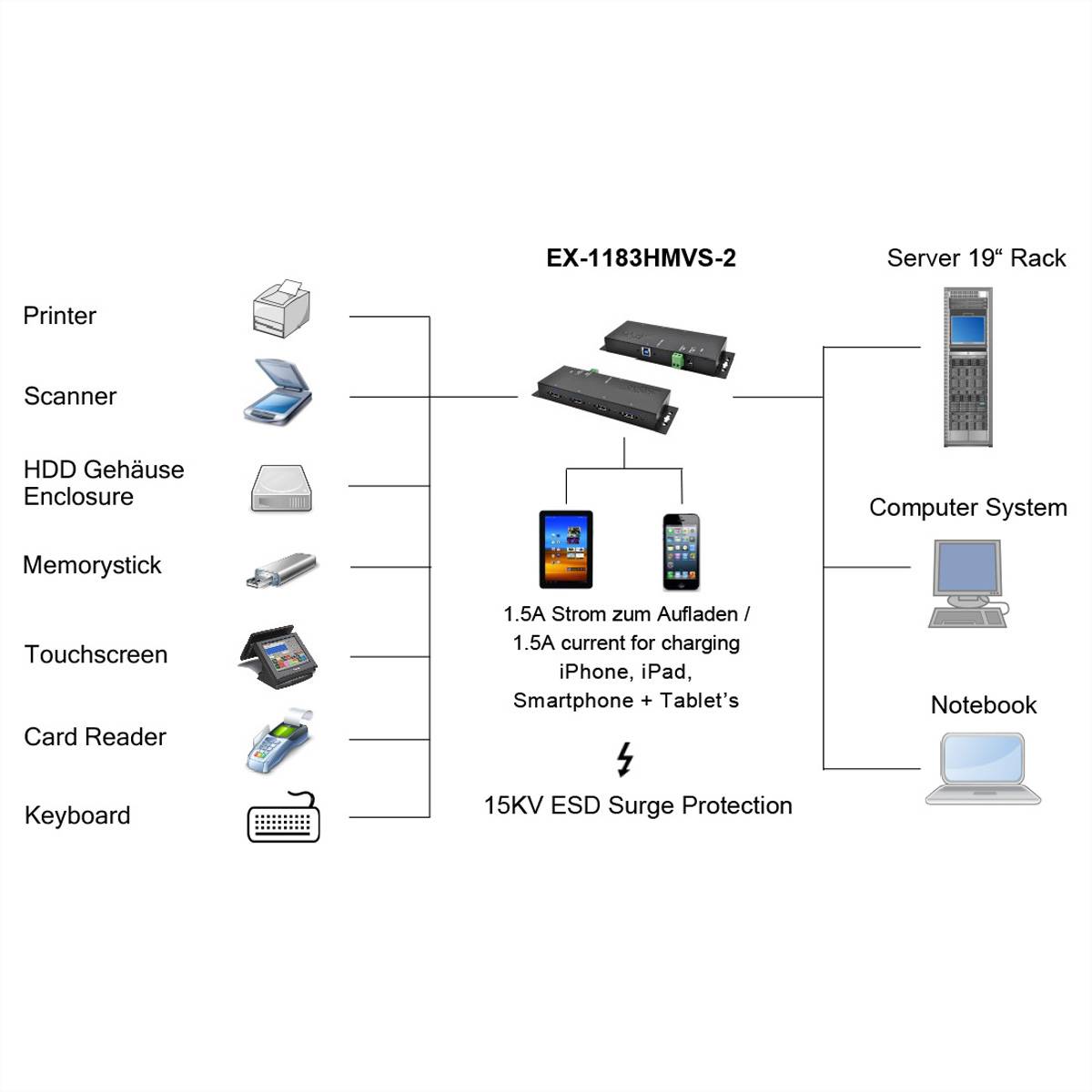

The EX-1183HMVS-2 represents 4 USB 3.2 1st Gen (previously USB 3.0 or 3.1. Gen1) Downstream ports can be screwed down and are available with 15KV ESD surge protection for each output. The EX-1183HMVS-2 simultaneously provides up to 4 ports 1.5A power for charging iPhone, iPad, smartphone and tablets. It is possible to connect up to four external USB peripheral devices to a USB 3.2 Gen1 port of the notebook, desktop computer or server in the 19" rack. The supplied EX-K1571V (1.5 meter) cable can be fastened to the EX-1183HMVS-2 without using a screwdriver. It can be used in automation, industry and office applications. Thanks to its special casing the EX-1183HMVS-2 can be screwed on the wall, under a table or in a 19" cabinet (optional with EX-6099).
This text is machine translated.
Features
- General:
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Data transfer rate 5000 Mbit/s.
- Product color: Black
- Case material: metal
- Power supply type: Direct current
- Input voltage 7 – 48 V
Scope of delivery

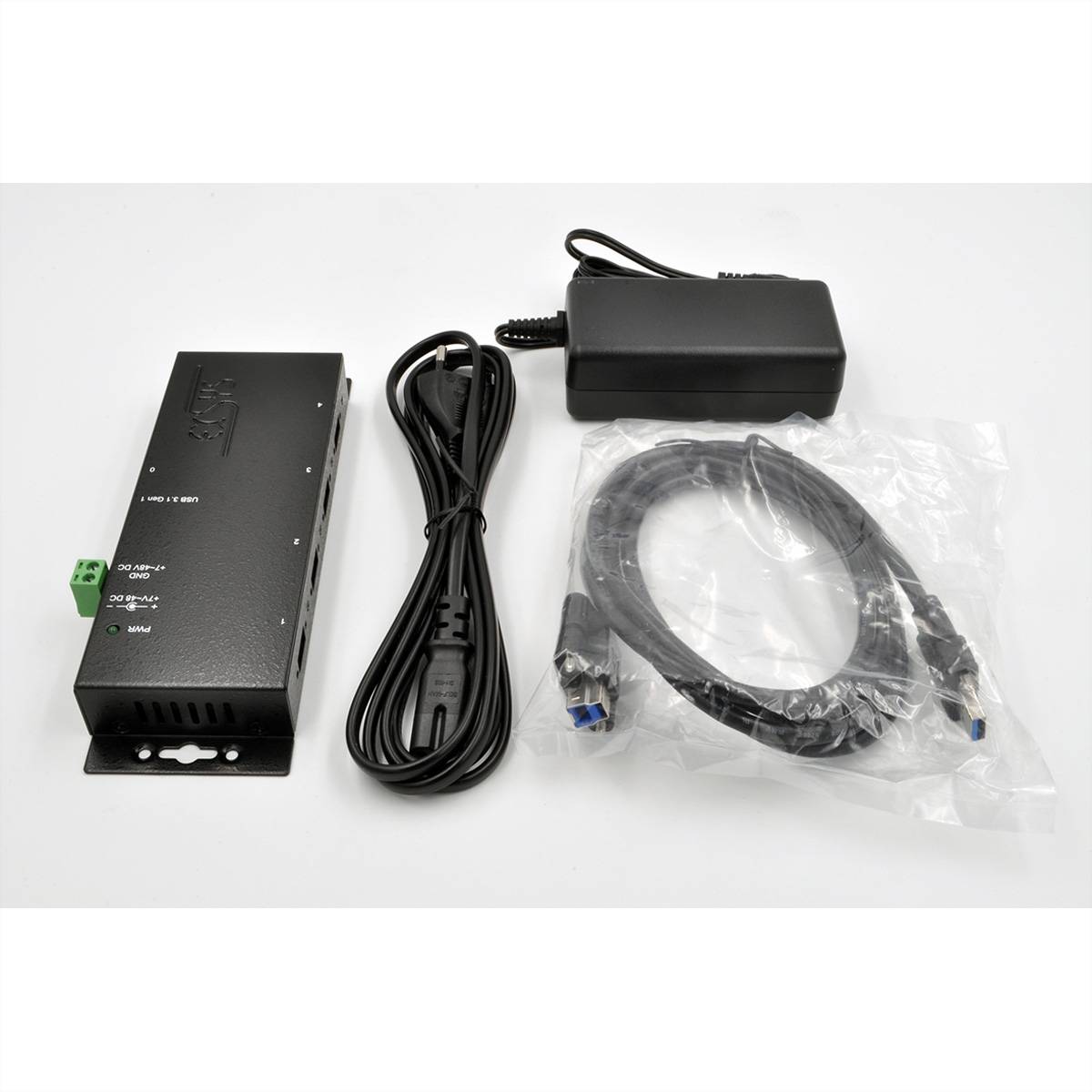

- EX-1183HMVS-2, USB 3.2 1st Gen cable (1.5 meter), mains supply 12V/3A, manual
