Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

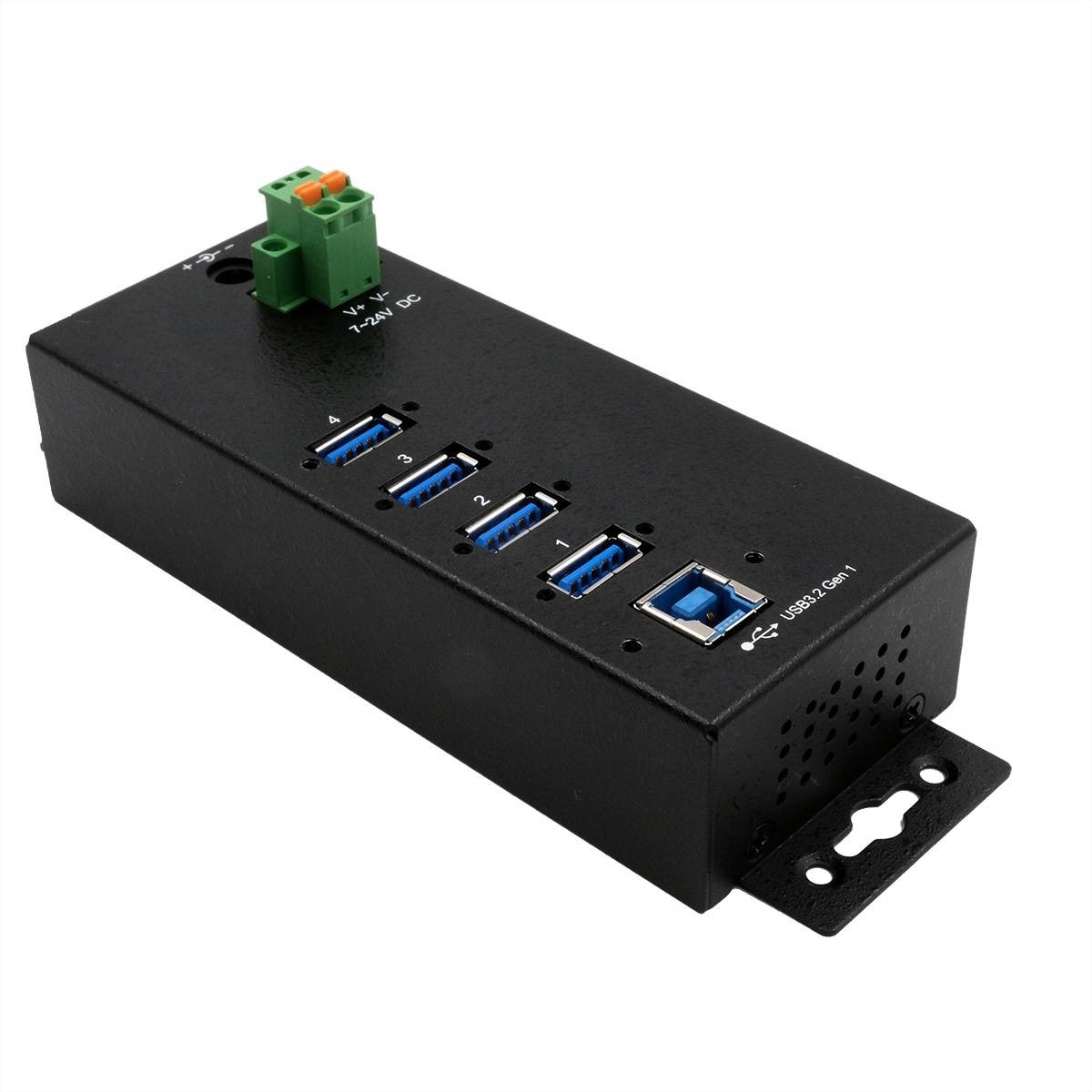

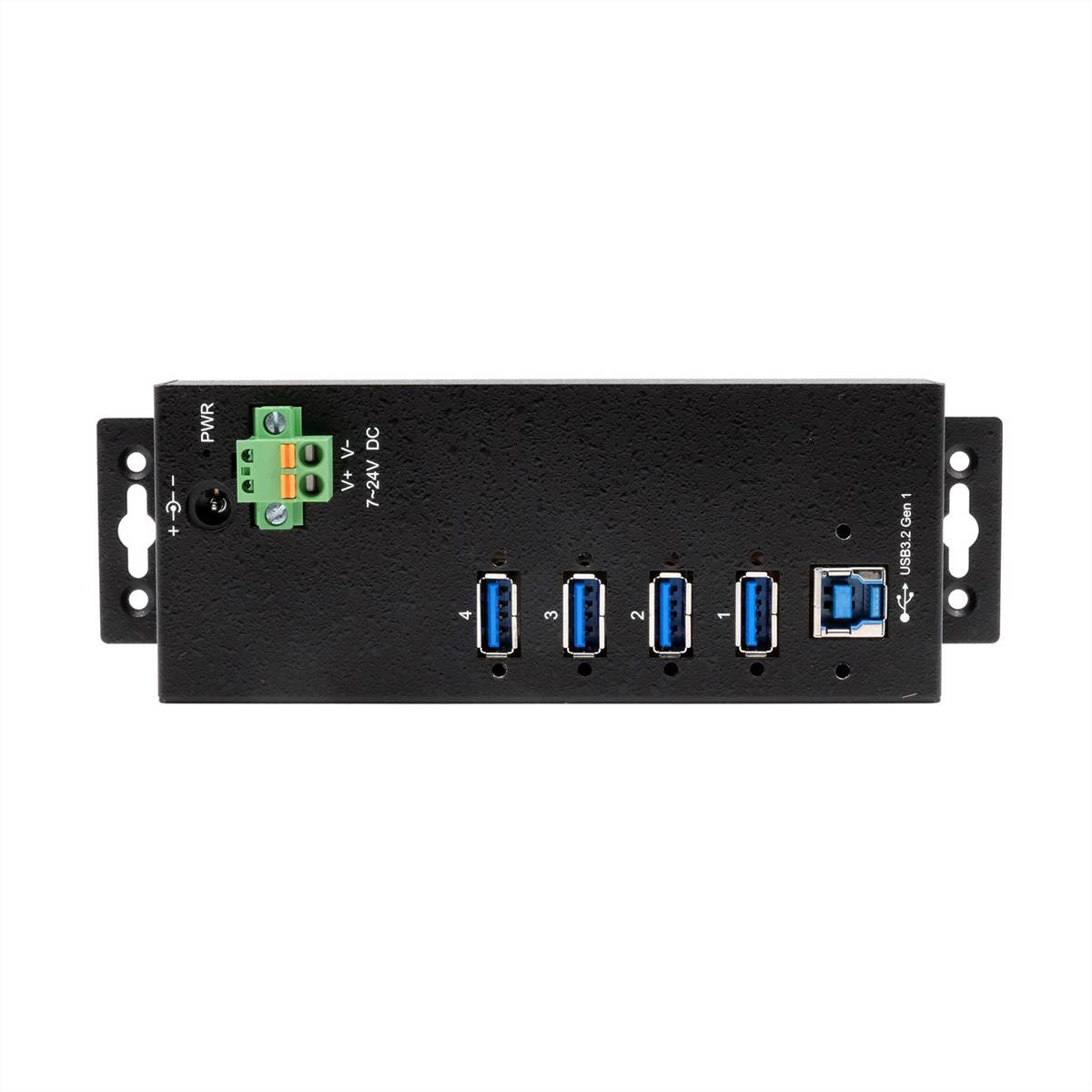

EXSYS EX-1186HMVS-2 port hub USB 3.2 Gen 1 (3.1 Gen 1) type-B 5000 Mbit/s black
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Number of connections: 4
- 5000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- No. of outputs
4 x
- Interfaces (output)
USB A (USB 3.2 1st gen)
- Distributor/switch features
meets industrial requirements
- Factory colour
Black
- Weight
0.504
- Width
55 mm
- Height
143 mm
- Depth
23.4 mm
- Cable length
0 mm
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Material (details)
Metal
- Used at
External
- UKCA
yes
- Ports quantity
4
- Terminal block port
yes
- DC-in jack
yes
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3796918 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796918 Exsys USB-Hub USB hub Black
Description

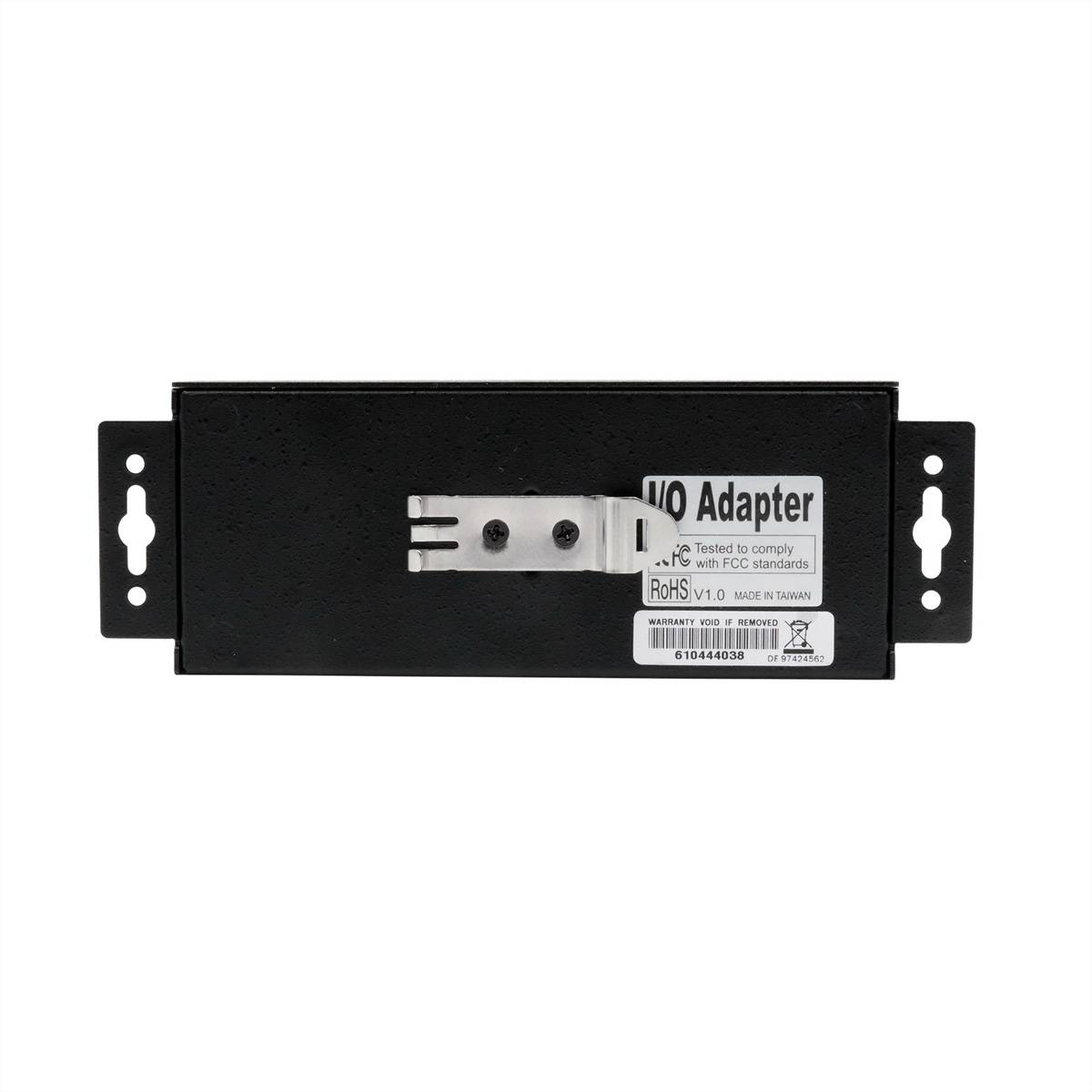

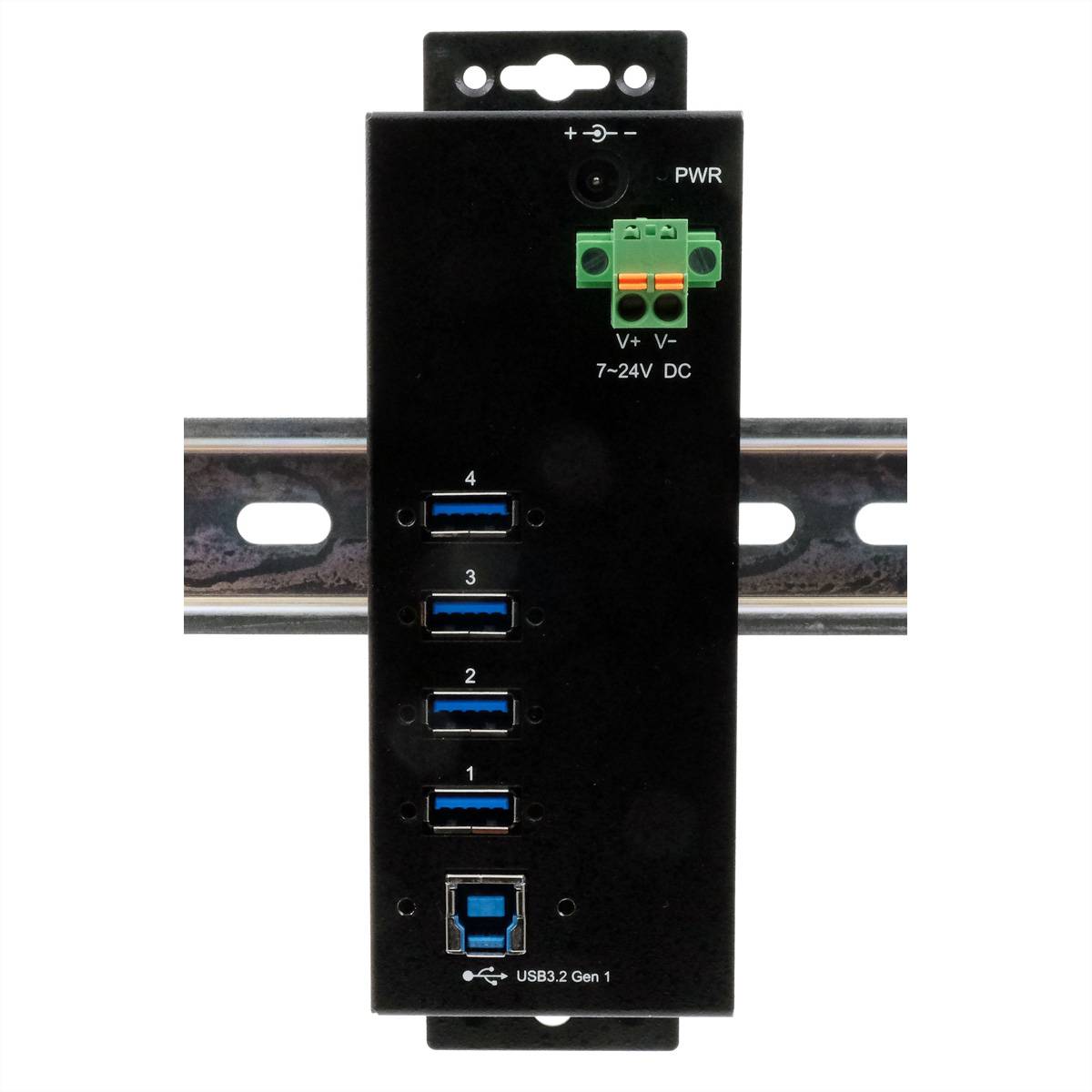

Robust for the industry The robust, industry-compatible EX-1186HMVS-2 USB-hub with four USB 3.2 1st Gen 1 outputs screw-able and 15KV ESD surge protection can be installed to the wall or on a carrier rail. . . The EX-1186HMVS-2 simultaneously supports 1.5A current for each port for charging iPhone, iPad, smartphone and tablet. . It is connected to a computer or server with the supplied USB 3.2 Gen 1 cable. It supports the hi-speed USB 3.2 Gen 1 data transfer rate of up to 5 Gbit/s and is backward compatible with USB 1.1. It can be powered with USB bus Power or via a two wire terminal strip connection (+7V to +24V).
This text is machine translated.
Features
- General:
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Data transfer rate 5000 Mbit/s.
- Product color: Black
- Case material: metal

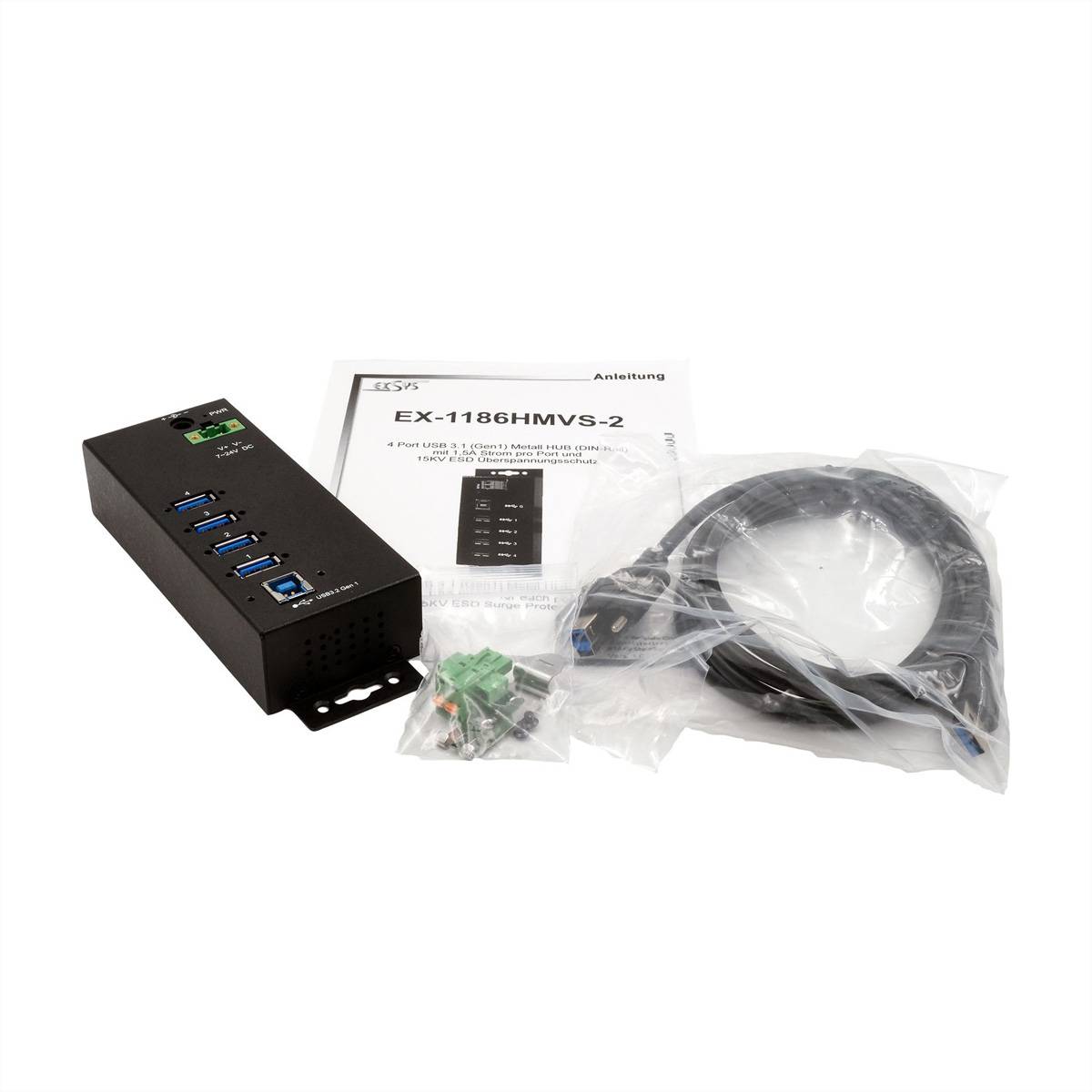

Scope of delivery
- EX-1186HMVS-2
