Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1184HMVS-2 port hub USB 3.2 Gen 1 (3.1 Gen 1) type-A 5000 Mbit/s black
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type A
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB type B
- Number of connections: 4
- 5000 Mbit/s
- Black
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type A
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- Factory colour
Black
- Weight
815 g
- Width
178 mm
- Height
23 mm
- Depth
69.3 mm
- Cable length
0 cm
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Keyboard layout
German, QWERTZ
- Material
Metal
- Max. output current
2.3 A
- Output voltage
5 V
- Type
DC
- Input voltage
24 V
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Minimum operating temperature
0 °C
- Ports quantity
4
- Terminal block port
yes
- Operating temperature (T-T)
32 - 131 °F
- Quantity per pack
4 Stück(e)
- DC-in jack
yes
- Maximum operating temperature
55 °C
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
- Surge protection
yes
- Power consumption (max)
30 W
Documents & Downloads
Datasheet
Datasheet 3796925 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796925 Exsys USB-Hub USB hub Black
Description

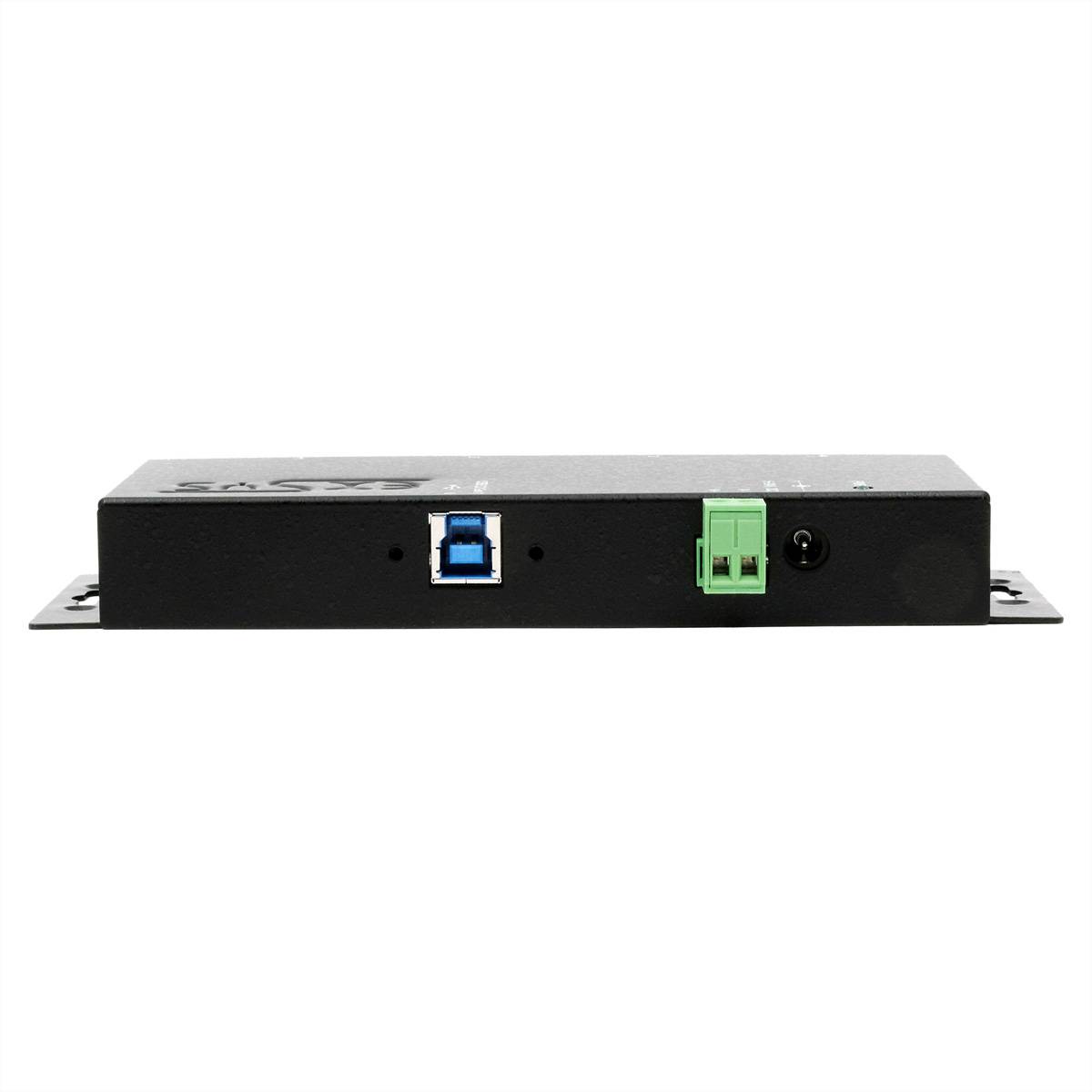

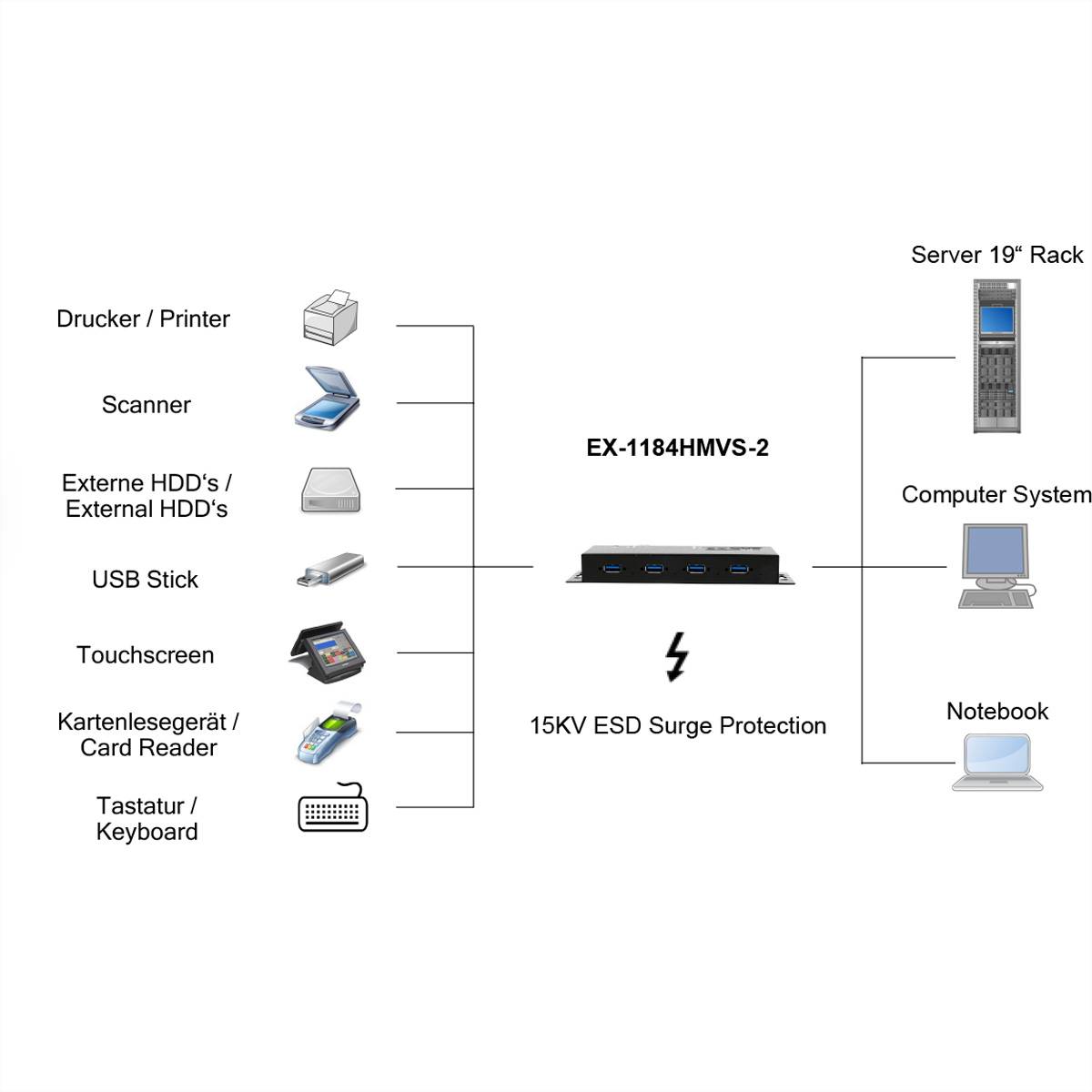

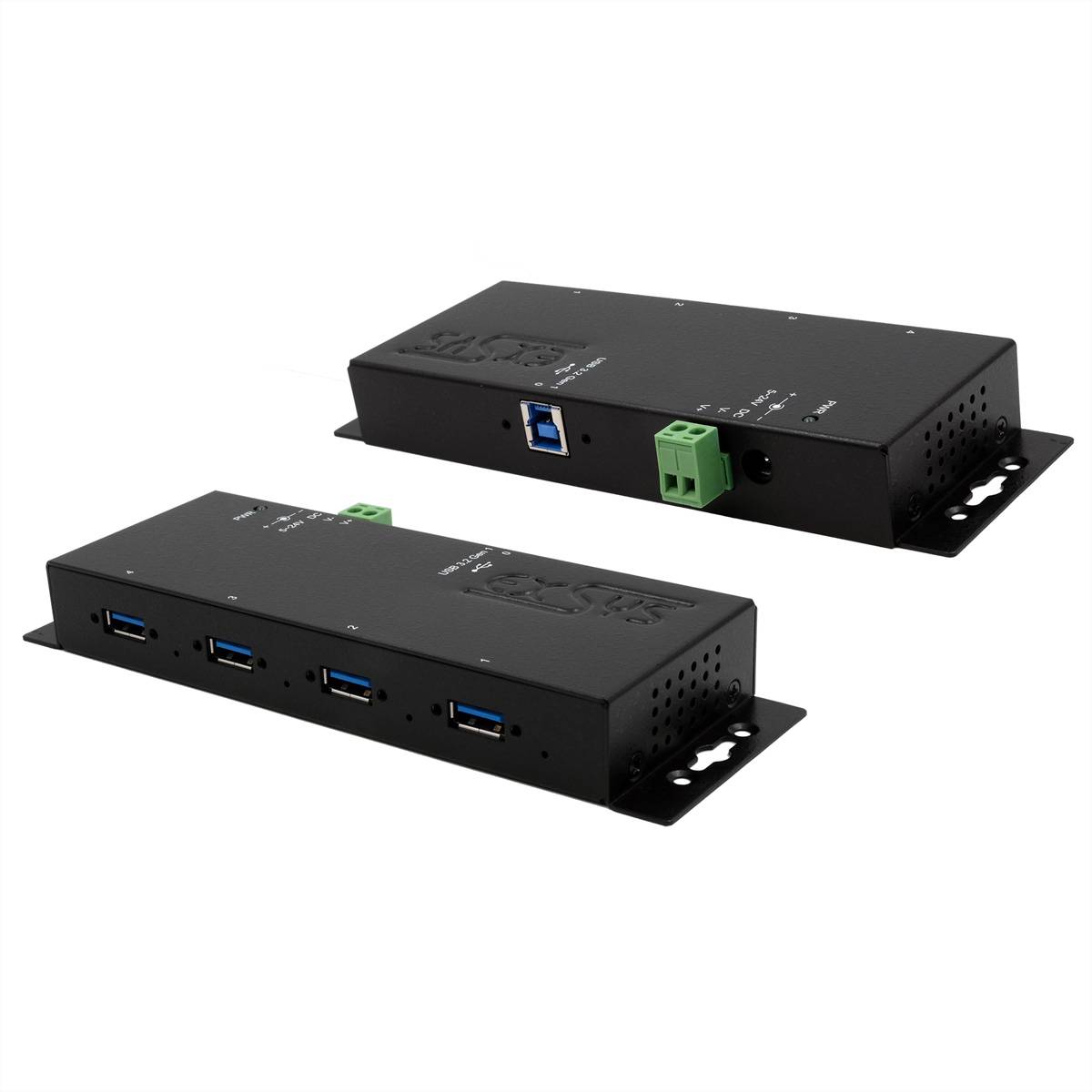

The robust and industrial-grade EX-1184HMVS-2 is a USB 3.2 Gen 1 metal hub for up to four terminals. The hub provides four screw-able USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It is possible to connect up to four external USB peripheral devices to a USB 3.2 1st Gen 1 port of your notebook, desktop computer or server in the 19" rack. It supports SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5 Gbit/s and is backward compatible with USB 1.1. The provided USB 3.2 Gen 1 cable can be attached to the EX-1184HMVS-2 with knurled screws without screwdriver. The EX-1184HMVS-2 can be supplied with power via a DC-socket, as well as via a two wire terminal strip connection (+5V to +24V). The HUB meets the special requirements of industrial applications.
This text is machine translated.
This text is machine translated.
Features

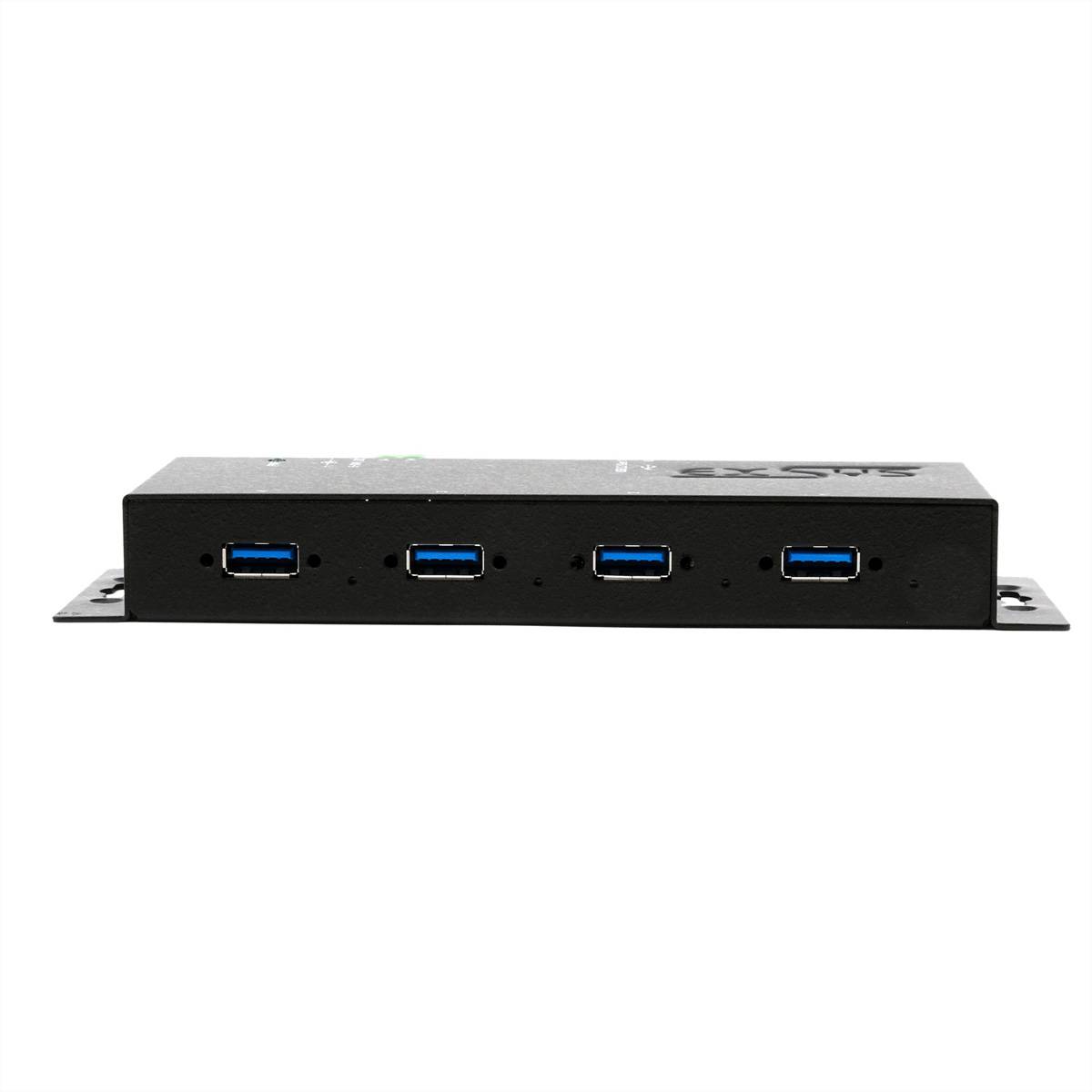

- USB 3.2 Gen 1 metal HUB with 4 ports
- 15KV ESD surge protection for all 4 ports
- Protection of the terminals against voltage fluctuations
- Power supply +5V to +24V DC via DC-socket or terminal Block
- Power supply optionally also from the USB-bus +5V (bus-Power)
- Simple installation with optionally available mounting rail holder
- Automatic detection of the data transfer rate for attached peripheral devices
- Supports 1.5A Power simultaneously for each output
- Supports battery charging BC v1.2: SDP/CDP/DCP Mode
- Automatic detection of the input polarity at the current terminal strip
- Heavy duty metal casing
- 1x LED voltage display and 4x status LED
- Chipset: VIA VL817

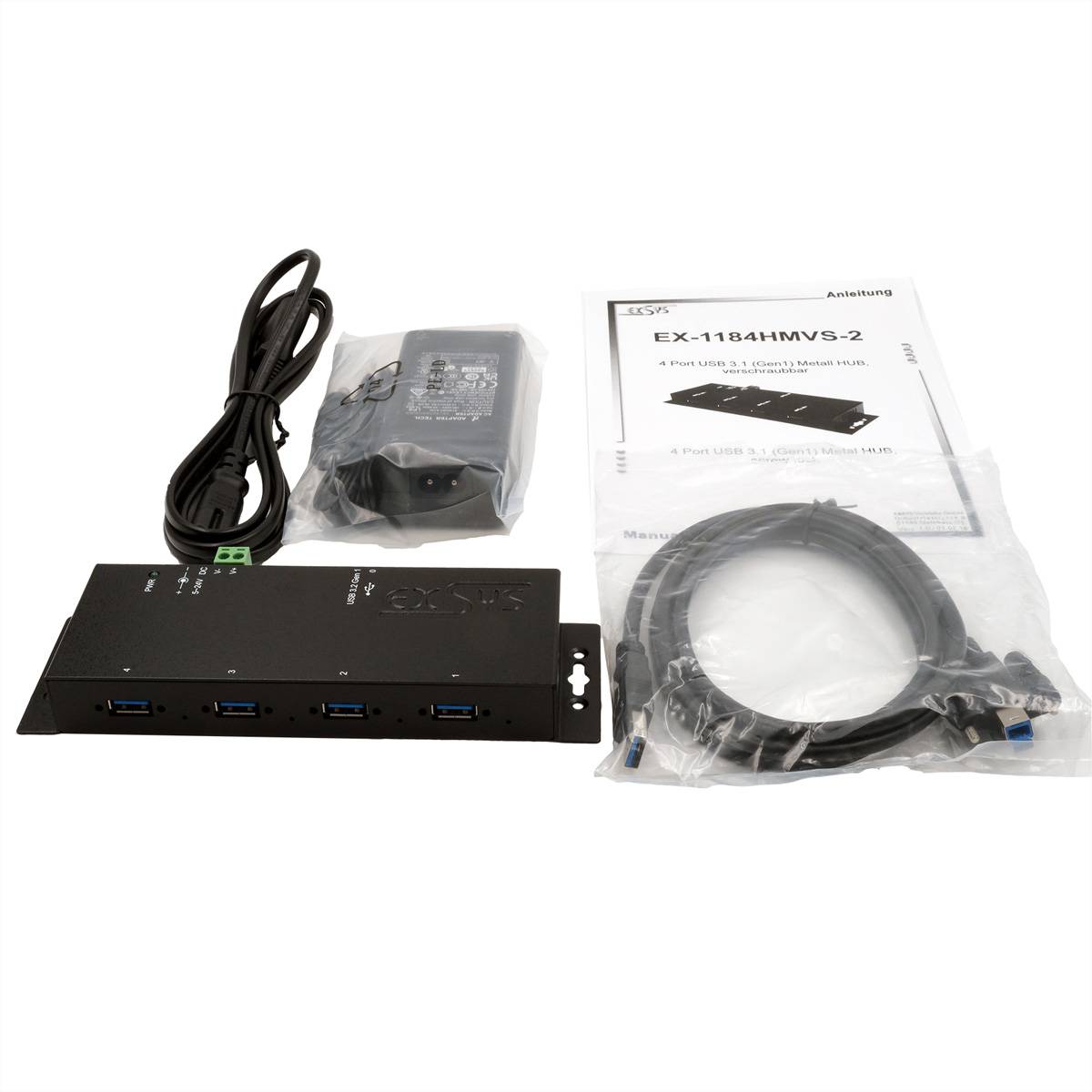

Scope of delivery
- EX-1184HMVS-2, power supply, USB 3.2 Gen 1 cable
