Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
EXSYS EX-11244HMS port hub USB 3.2 Gen 1 (3.1 Gen 1) type B 5000 Mbit/s black
Highlights & Details
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Number of connections: 4
- 5000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- Factory colour
Black
- Weight
540 g
- Width
117 mm
- Height
26.7 mm
- Depth
54 mm
- Cable length
2 m
- Version
Cable
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Keyboard layout
German, QWERTZ
- Cable use
USB
- Cable features
Metal foil shield
- Transfer rate (max.)
5 GBit/s
- Material (details)
Metal
- Connection type
USB 3.2 Gen 1 (USB 3.0)
- PSU power
23 W
- Type
DC
- Input voltage
9 - 24 V
- Range of use
Universal
- UKCA
yes
- Minimum operating temperature
0 °C
- Ports quantity
4
- Terminal block port
yes
- Quantity per pack
1 Stück(e)
- DC-in jack
yes
- Maximum operating temperature
55 °C
- Card reader integrated
no
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
Documents & Downloads
Datasheet
Datasheet 3796935 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796935 Exsys USB-Hub USB hub Black
Description

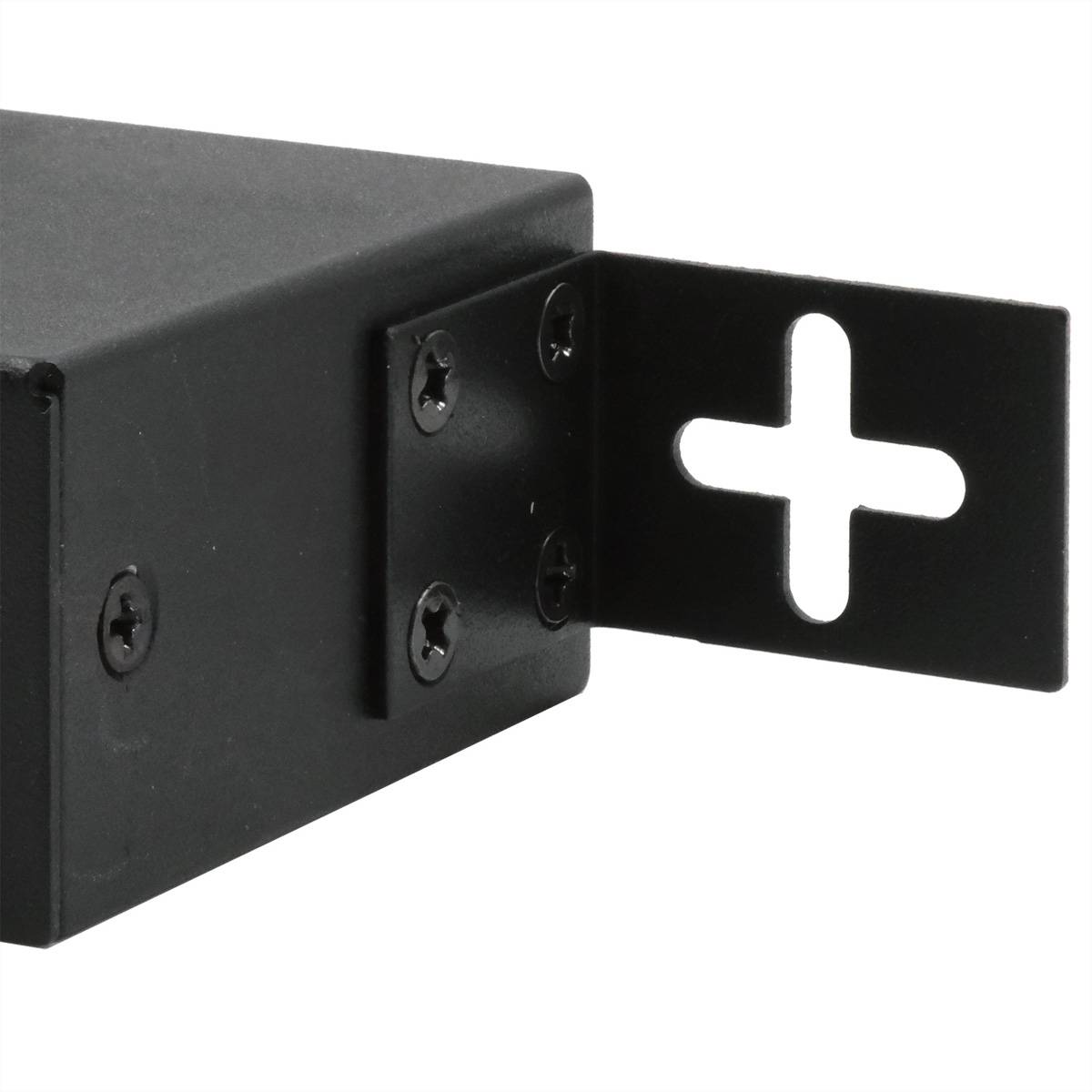

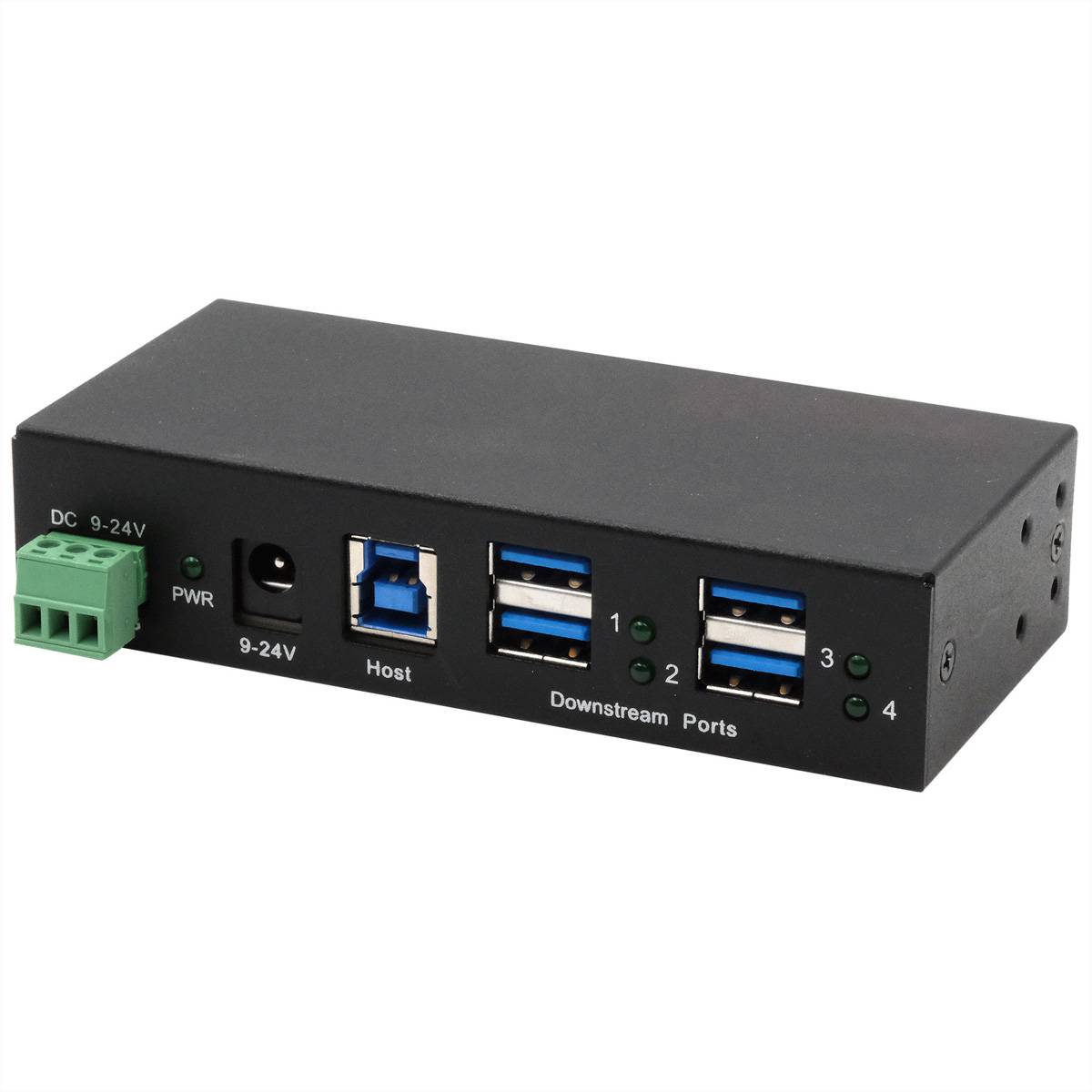

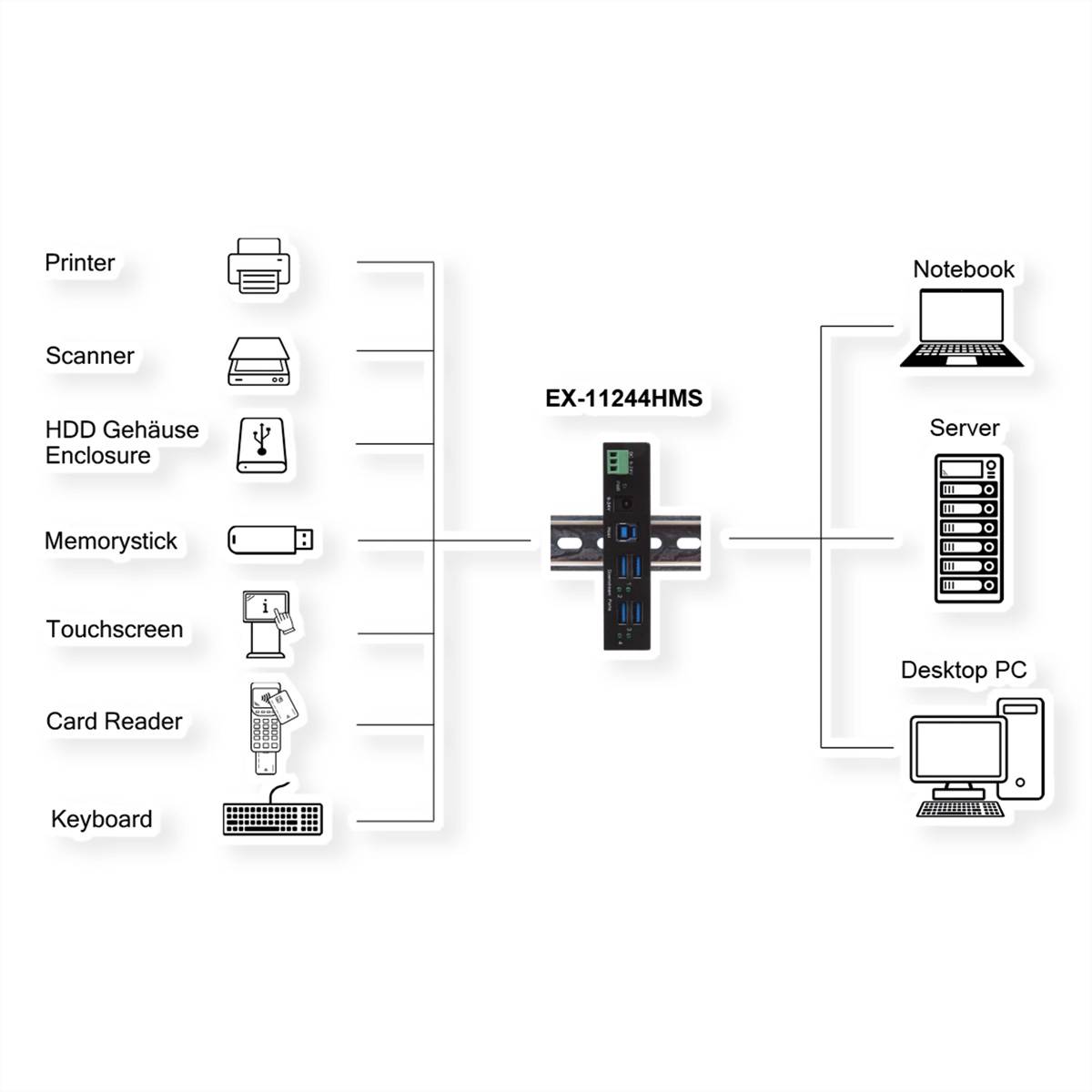

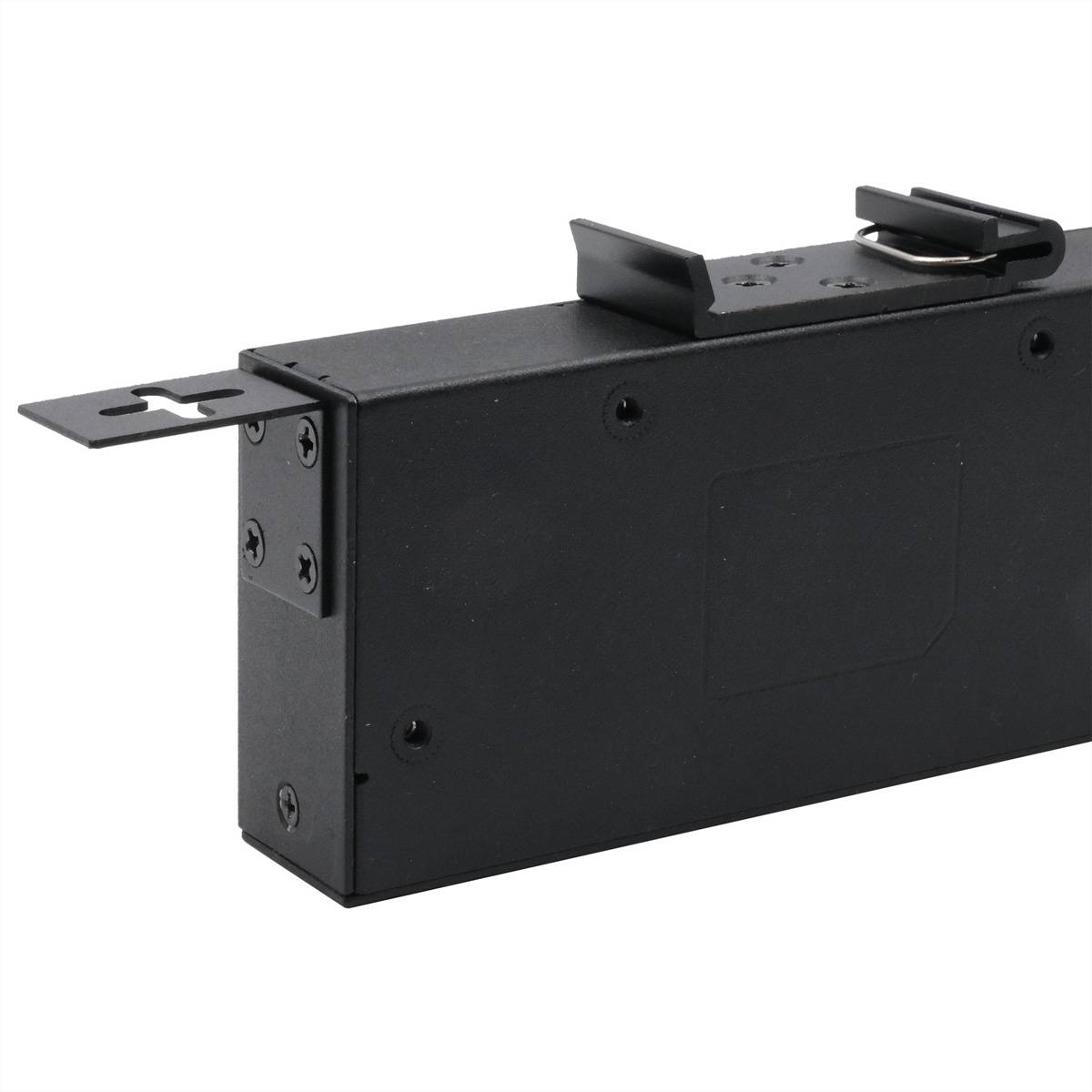

4-Ports USB 3.2 Gen 1 metal HUB with 15KV ESD surge protection for table, wall and DIN rail mounting The robust, industry-compatible EX-11244HMS USB hub in metal housing with four USB 3.2 Gen 1 outputs can be installed on the wall or on a carrier rail. It ensures secure data transfer and excellent performance of up to 5 Gbit/s (SuperSpeed USB 5 Gbps). In addition, the EX-11244HMS is fitted with a 15KV ESD surge protection. Up to 1.5A can be available at each port via the external power supply. This allows you to easily charge iPhone, iPad, smartphone and tablet. An optionally available power supply unit is necessary for operation (self-Power), bus-Power is not supported.
This text is machine translated.
Features
- General:
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- Data transfer rate 5000 Mbit/s.
- Product color: Black
- Case material: metal
- Power supply type: Direct current
- Power supply 23 W
- Input voltage 9 – 24 V
- Width 117 mm
- Depth: 54 mm
- Height: 26.7 mm
- Quantity per pack: 1 pieces(s)
Scope of delivery

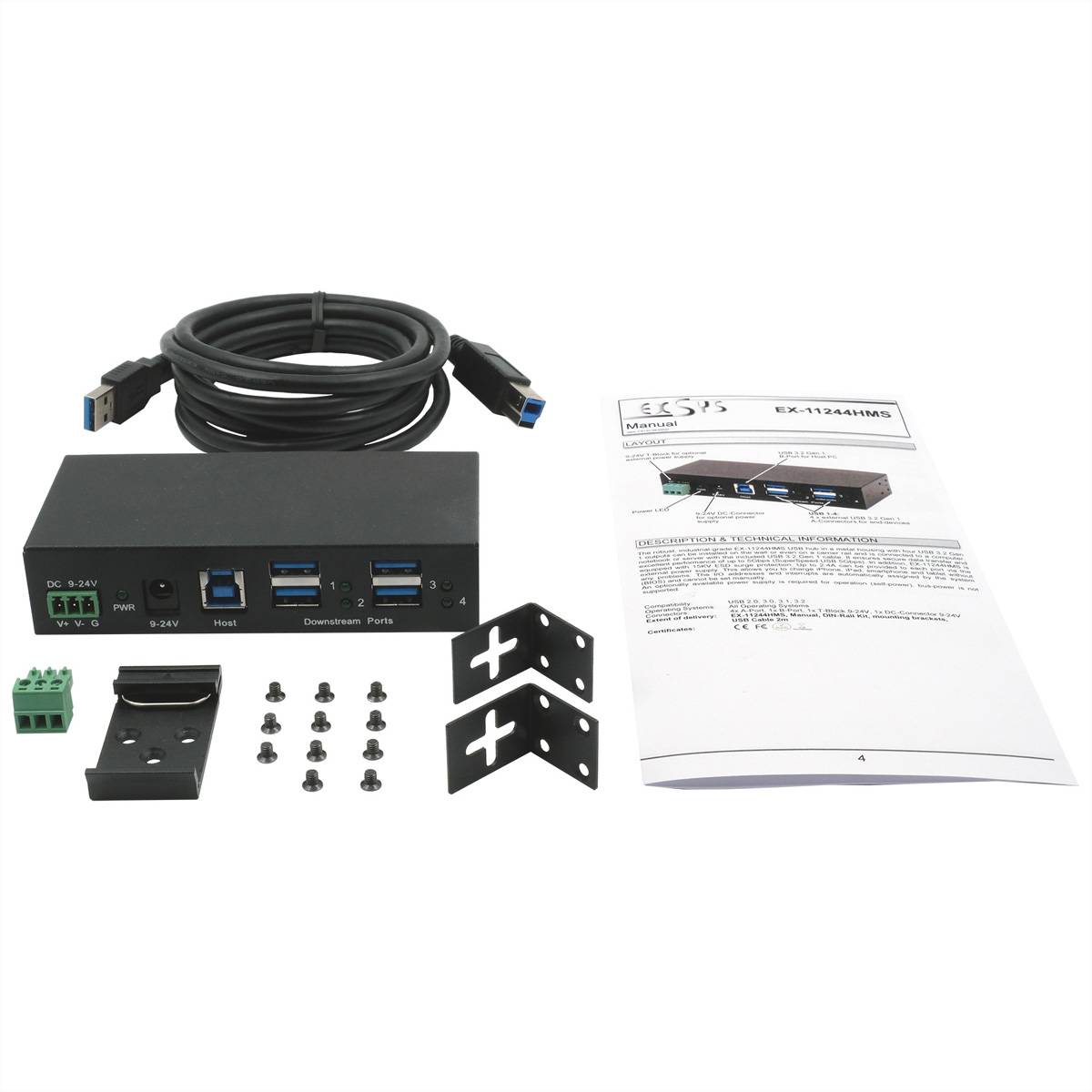

- EX-11244HMS, USB 3.2 Gen 1 Cable, DIN Rail Kit, Wall Mount Kit, Manual
