Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
7-Ports USB 3.2 Gen 1 metal HUB with 15KV ESD surge protection for table, wall and DIN-rail mounting...
- Connections for up to seven USB peripheral devices
- Redundant power supply when using TB+ DC jack
- Automatic detection of input polarity
- Compact industrial design
- Heavy duty metal casing
Technical specifications
- Product group: Hubs
- Product type USB Hub
- Colour, black
- Connections PC: 1x B-socket upstream
- Connections devices: 7x A jack downstream
- Transmission quality USB 3.2 Gen 1 1 SuperSpeed 5 Gbps (USB 3.1 1st Gen, USB 3.0)
- Page 1 Type of connector: USB 3 Type B.
- Page 1 Type of connection: Female (female)
- Page 2 Type of connector: USB 3 Type A.
- Page 2 Type of connection: Female (female)
- Total number of ports: 7
- Range of application: External
- Material (casing): Metal
- Power supply required: Partially
- Power supply included in delivery: No.
- Min. Operating temperature 0 °C
- Max. operating temperature: 55 °C
- Height: 135 mm
- Width 60 mm
- Depth: 24 mm
- Weight: 520 g
- Packaging height 70 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0,498 kg
- Gross weight: 0.498
- Product type
USB hub
- No. of outputs
7 x
- Interfaces (output)
USB type A
USB type B
- Distributor/switch features
meets industrial requirements
Steel casing
wall mount option
- Factory colour
Black
- Weight
0.498
- Width
60 mm
- Height
135 mm
- Depth
24 mm
- Cable length
0 cm
- Keyboard layout
German, QWERTZ
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Used at
External
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796937 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796937 Exsys USB-Hub USB hub Black
Description
7-Ports USB 3.2 Gen 1 metal HUB with 15KV ESD surge protection for table, wall and DIN rail mounting The robust, industry-compatible EX-11247HMS USB hub in a metal housing with seven USB 3.2 Gen 1 outputs can be installed on the wall or on a carrier rail. . All connections are mounted on the top and thus offer a high flexibility, such as for mounting in a housing or a cabinet. In addition, the EX-11247HMS is fitted with a 15KV ESD surge protection. Via the external power supply up to 1.5A per USB port. . This allows you to easily charge iPhone, iPad, smartphone and tablet. . An optionally available power supply unit is necessary for operation (self-Power), bus-Power is not supported.
This text is machine translated.
Scope of delivery

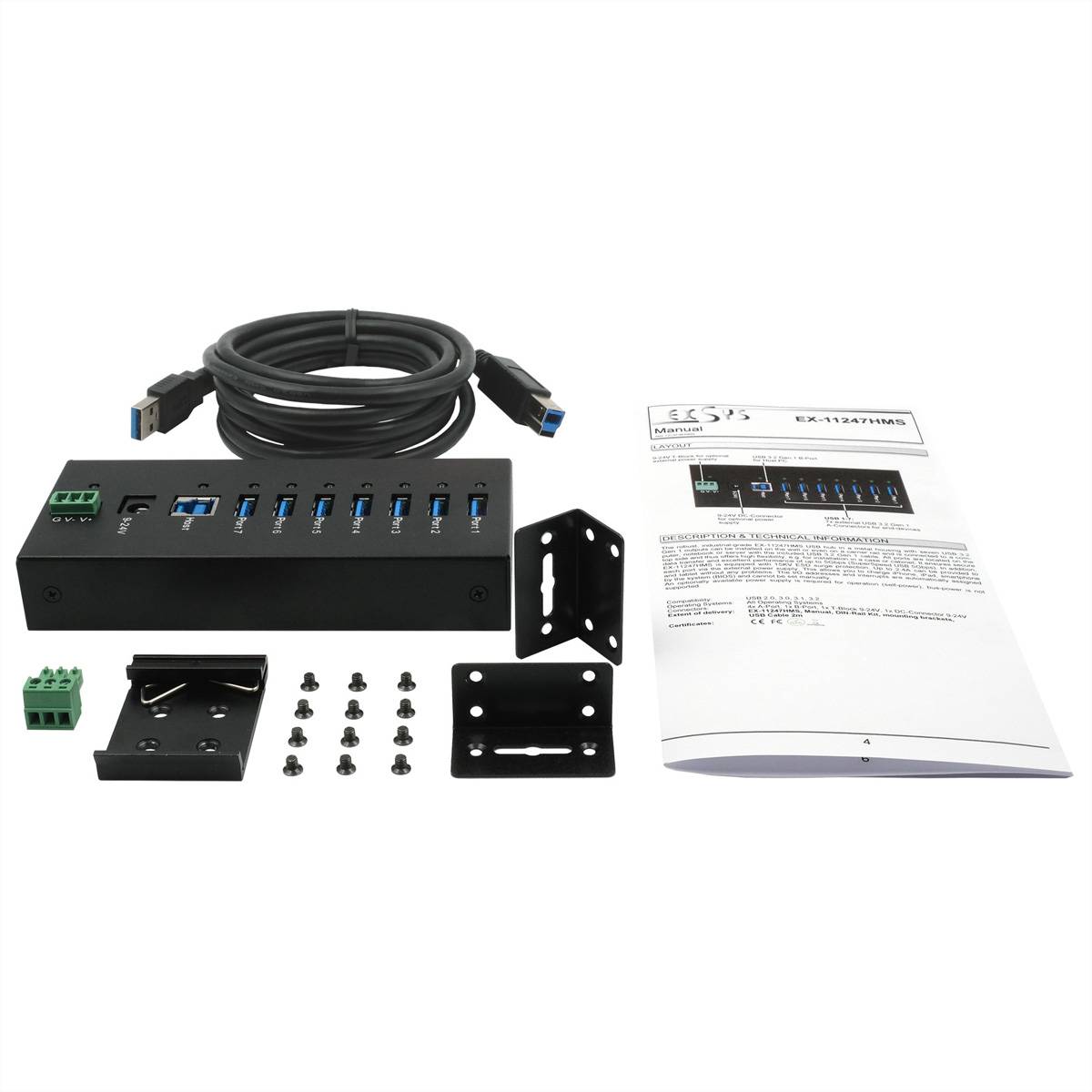

- EX-11247HMS, USB 3.2 Gen 1 cable, DIN rail kit, wall mounting kit, manual
