Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

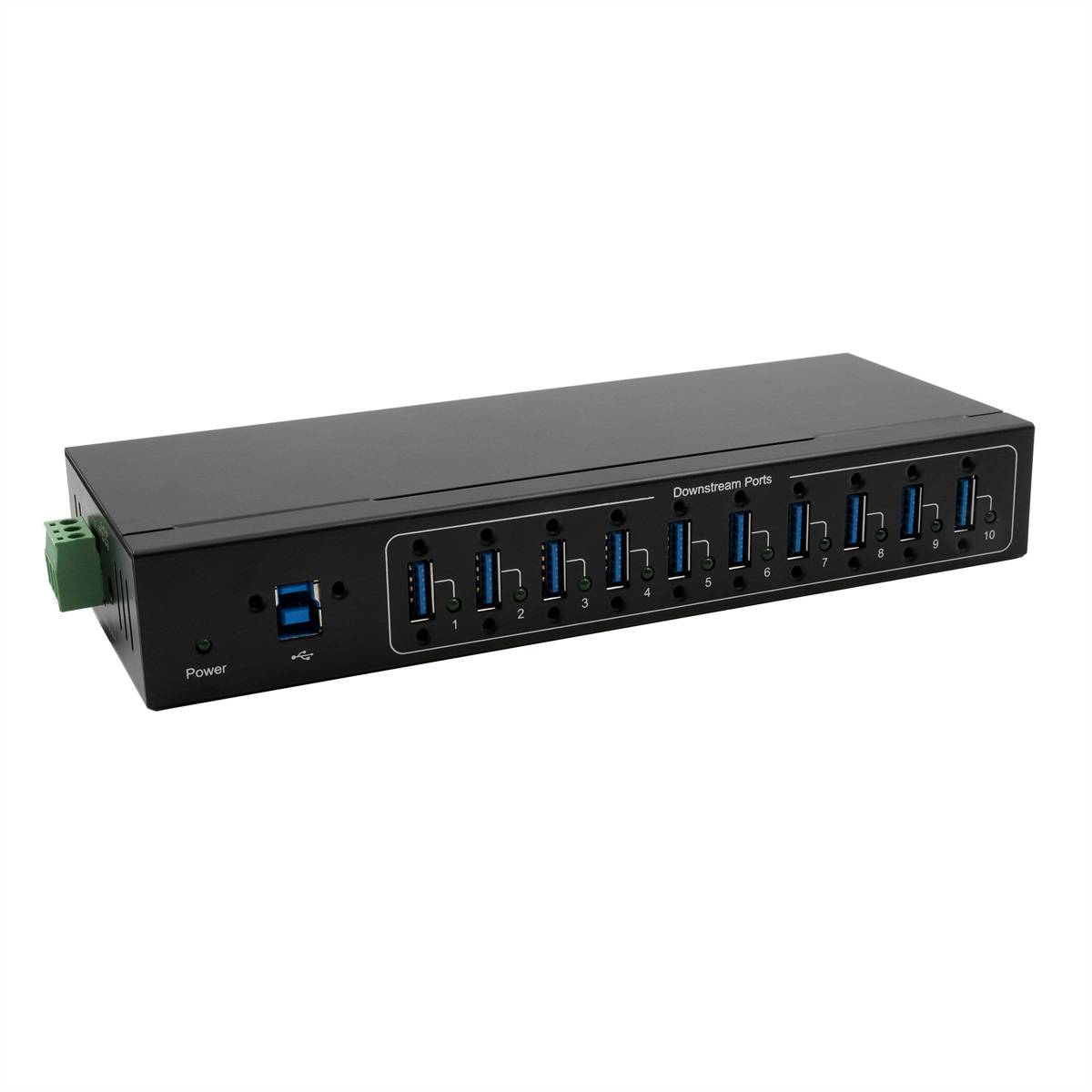

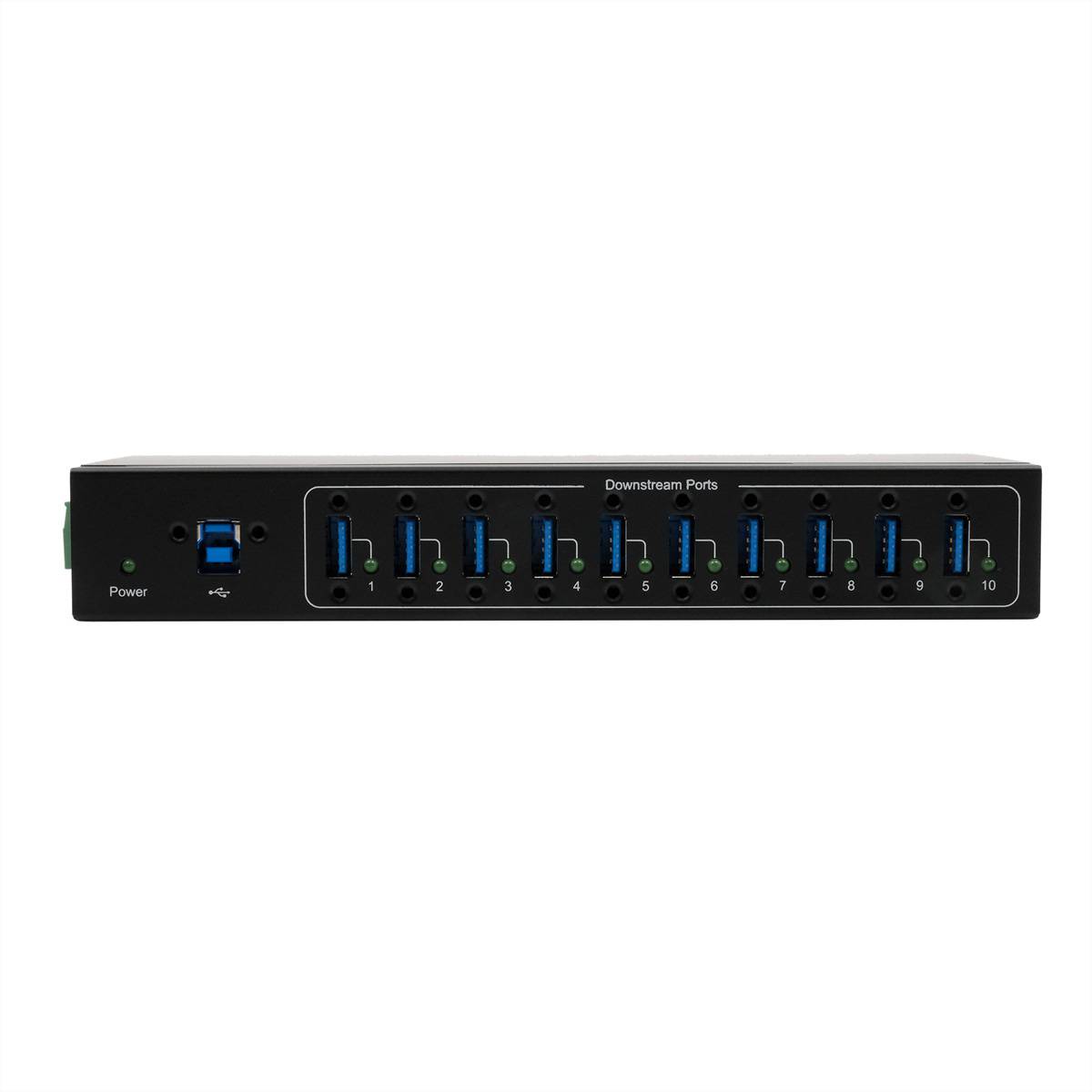

10-Ports USB 3.2 Gen 1 metal HUB with 15KV ESD surge protection for table, wall and DIN-rail mounting...
- Ports for up to ten USB peripherals
- Power: Bus Power or Self Power
- Automatic detection of input polarity
- Compact industrial design
- Heavy duty metal casing
Technical specifications
- Product group: Hubs
- Product type USB Hub
- Colour, black
- PC connections: 1x B-socket screw able upstream
- Connections devices: 10x A-socket screw downstream
- Transmission quality USB 3.2 Gen 1 1 SuperSpeed 5 Gbps (USB 3.1 1st Gen, USB 3.0)
- Page 1 Type of connector: USB 3 Type B.
- Page 1 Type of connection: Female (female)
- Page 2 Type of connector: USB 3 Type A.
- Page 2 Type of connection: Female (female)
- Total number of ports: 10
- Range of application: External
- Material (casing): Metal
- Power supply required: Partially
- Power supply included in delivery: No.
- Height: 200 mm
- Width 78 mm
- Depth: 30.7 mm
- Weight: 655 g
- Packaging height 70 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0.65 kg
- Gross weight: 0.65
- Product type
USB hub
- No. of outputs
10 x
- Interfaces (output)
USB type A
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
0.65
- Width
78 mm
- Height
200 mm
- Depth
30.7 mm
- Cable length
0 mm
- Series
EX-11220HMVS
- Industrial packaging
Yes (hardware)
IP20 (wall-mount)
- Leading contact (PE)
No
- Features
+ metal enclosure
- Series
Han® -Yellock® 30
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Number of pins
10
- Used at
External
- Min. temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796938 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796938 Exsys USB-Hub USB hub Black
Description

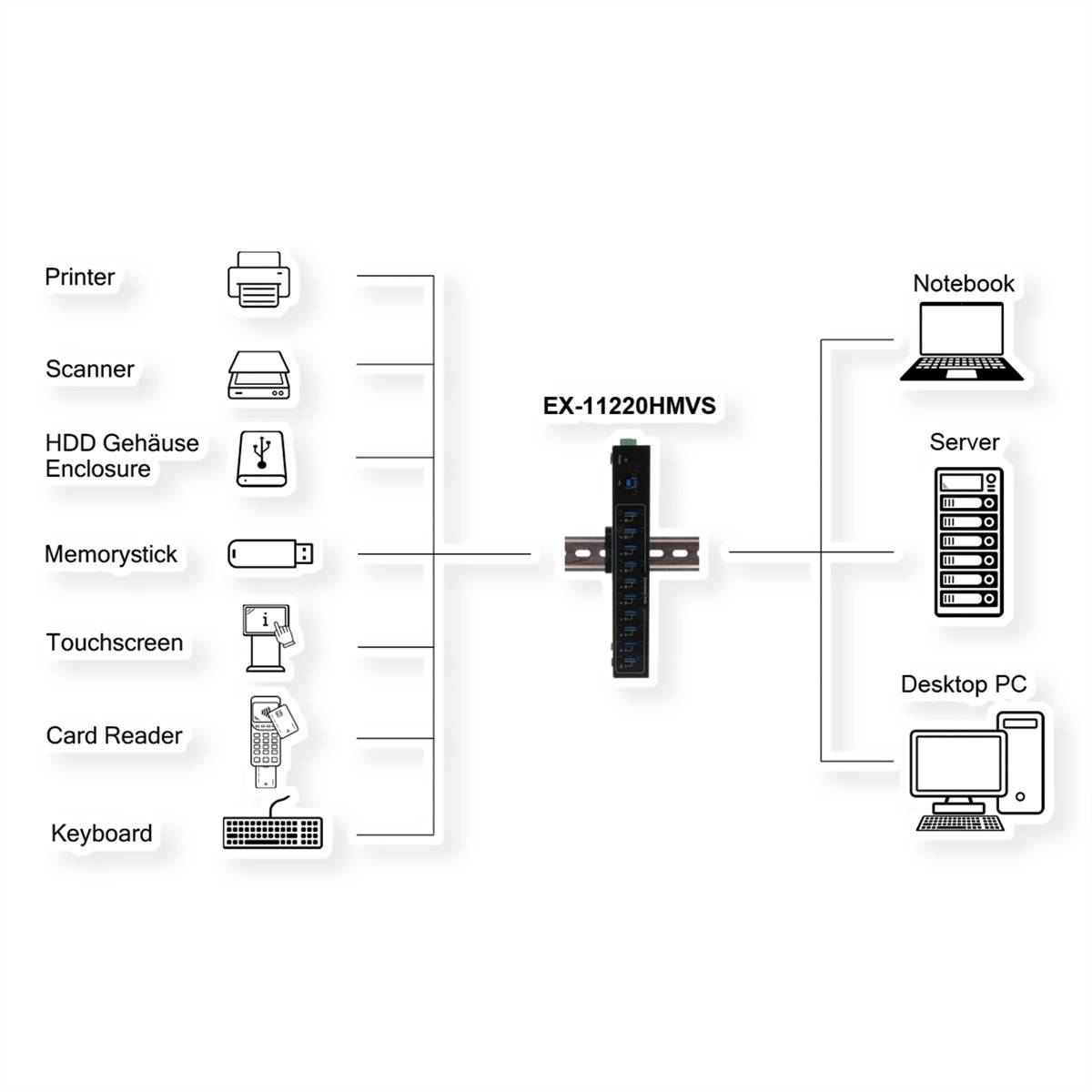

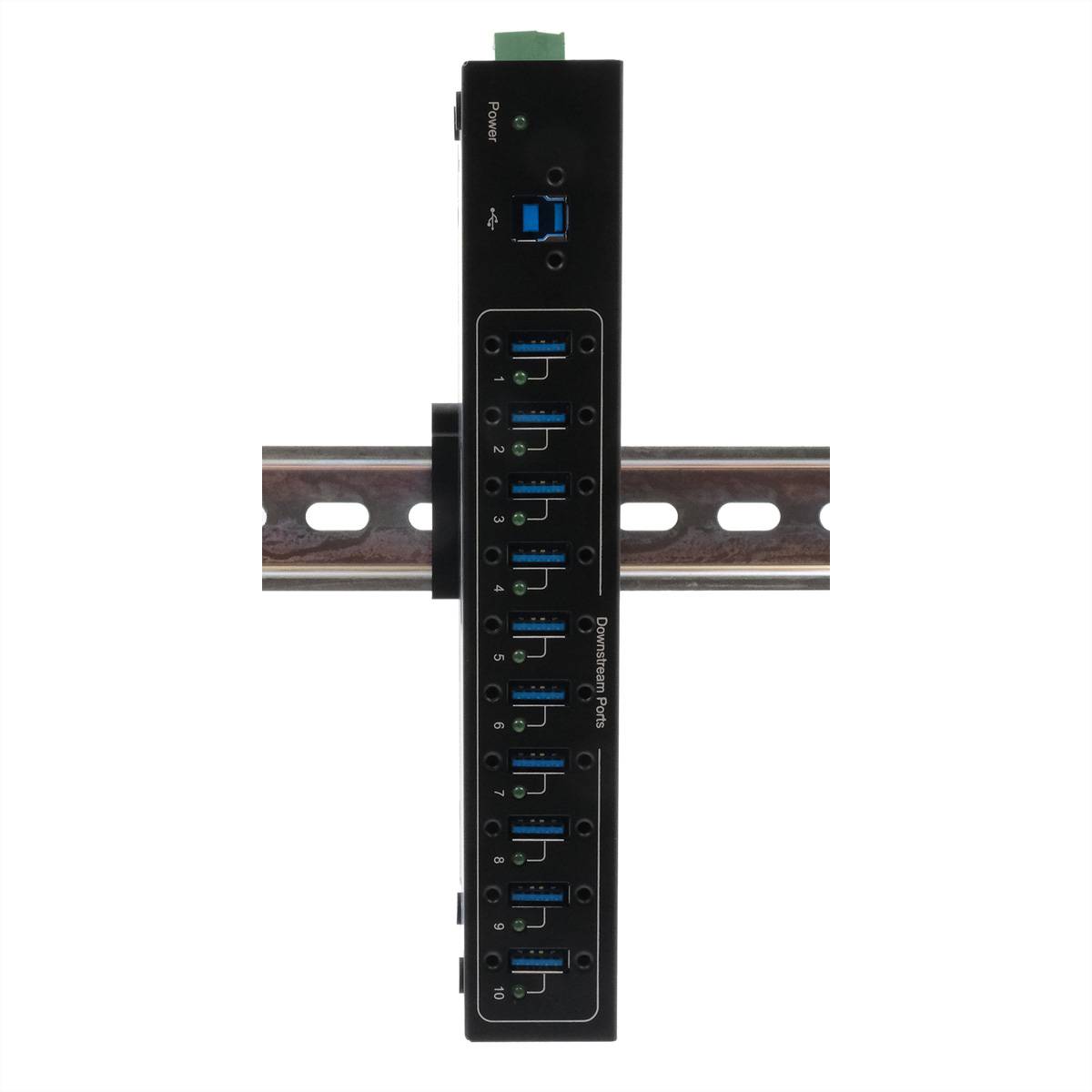

10-Ports USB 3.2 Gen 1 metal HUB with 15KV ESD surge protection for table, wall and DIN rail mounting The robust, industry-compatible EX-11220HMVS USB hub with ten screw-able USB 3.2 Gen 1 outputs is suitable for consumers and industrial applications. It can be installed on the wall or on a carrier rail and is connected to computer, notebook or server with the accompanying USB 3.2 Gen 1 cable. It ensures secure data transfer with excellent performance of up to 5 Gbit/s (SuperSpeed USB 5 Gbps) and is downward compatible to USB 1.1. It can be powered with USB-bus-Power or via a two-wire terminal strip connection (+9V to 40V). . Optionally a power supply (EX-6990) can be connected to the DC-jack.
This text is machine translated.

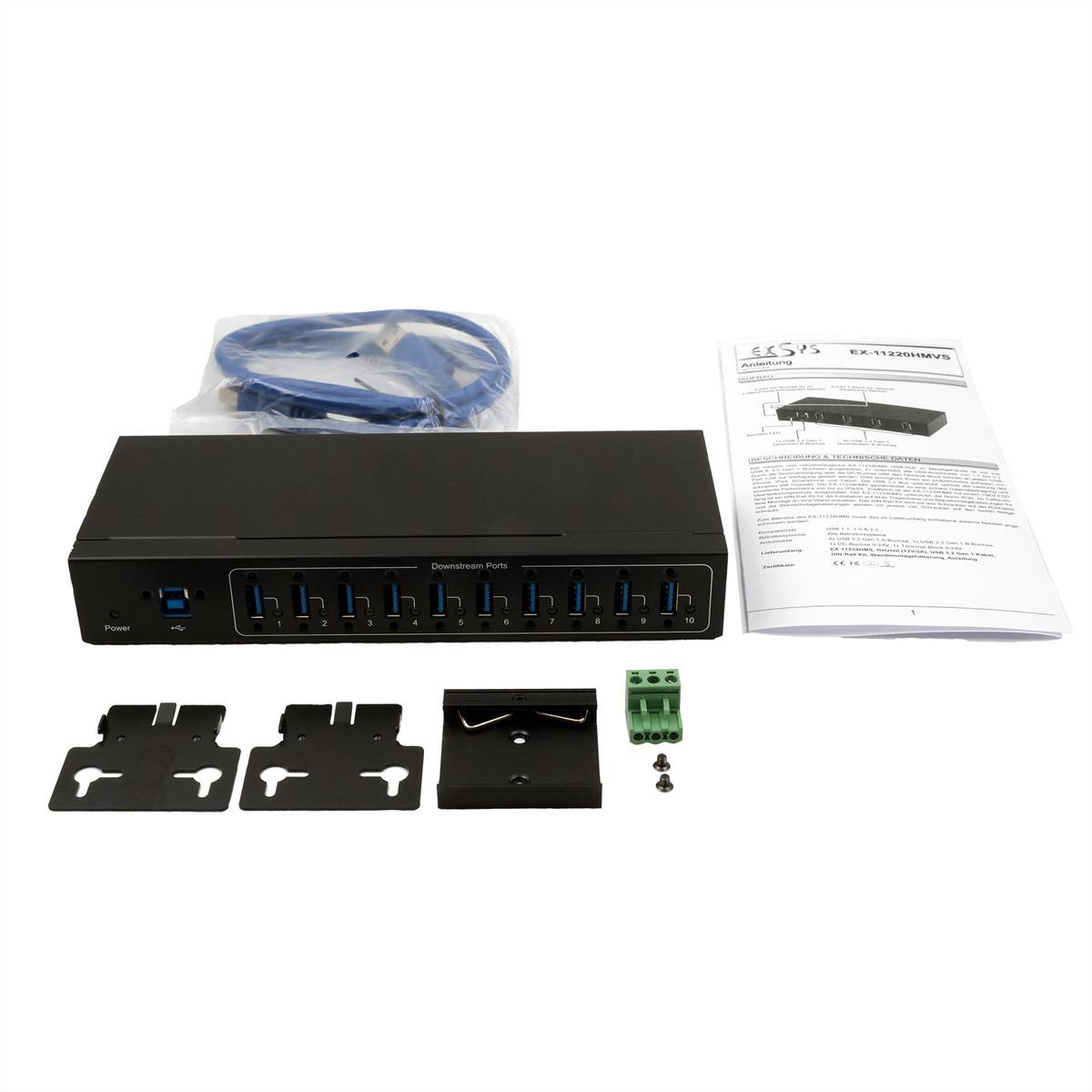

Scope of delivery
- EX-11220HMVS, USB 3.2 Gen 1 Cable , DIN Rail Kit, Wall Mount Kit, Manual
