1/5
Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
10-Ports USB 3.2 Gen 1 metal HUB with 15KV ESD surge protection for table, wall and DIN-rail mounting...
- Ports for up to ten USB peripherals
- 15KV ESD surge protection for each output
- Automatic detection of input polarity
- Compact industrial design
- Heavy duty metal casing
Technical specifications
- Product group: Hubs
- Product type USB Hub
- Colour, black
- PC connections: 1x B-socket screw able upstream
- Connections devices: 10x A-socket screw downstream
- Transmission quality USB 3.2 Gen 1 1 SuperSpeed 5 Gbps (USB 3.1 1st Gen, USB 3.0)
- Page 1 Type of connector: USB 3 Type B.
- Page 1 Type of connection: Female (female)
- Page 2 Type of connector: USB 3 Type A.
- Page 2 Type of connection: Female (female)
- Total number of ports: 10
- Range of application: External
- Material (casing): Metal
- Power supply required: Partially
- Power supply included in delivery: No.
- Height: 160 mm
- Width 60 mm
- Depth: 24 mm
- Weight: 900 g
- Packaging height 60 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0,858 kg
- Gross weight: 0.858
- Product type
USB hub
- No. of outputs
10 x
- Interfaces (output)
USB type A
- Distributor/switch features
Steel casing
wall mount option
- Factory colour
Black
- Weight
0.858
- Width
60 mm
- Height
160 mm
- Depth
24 mm
- Cable length
0 mm
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Used at
External
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796939 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796939 Exsys USB-Hub USB hub Black
Description
10-Ports USB 3.2 Gen 1 metal HUB with 15KV ESD surge protection for table, wall and DIN rail mounting The robust, industry-compatible EX-11230HMS USB hub in a metal housing with ten USB 3.2 Gen 1 outputs can be installed to the wall or on a carrier rail. All connections are mounted on the top and thus offer a high flexibility, such as for mounting in a housing or a cabinet. In addition, the EX-11230HMS is fitted with a 15KV ESD surge protection. Up to 1.5A can be available on each port via the external power supply. . This allows you to easily charge iPhone, iPad, smartphone and tablet. . The power is supplied via the accompanying wall plug transformer or an optionally available DIN-rail power supply (Self-Power). Bus Power is not supported.
This text is machine translated.

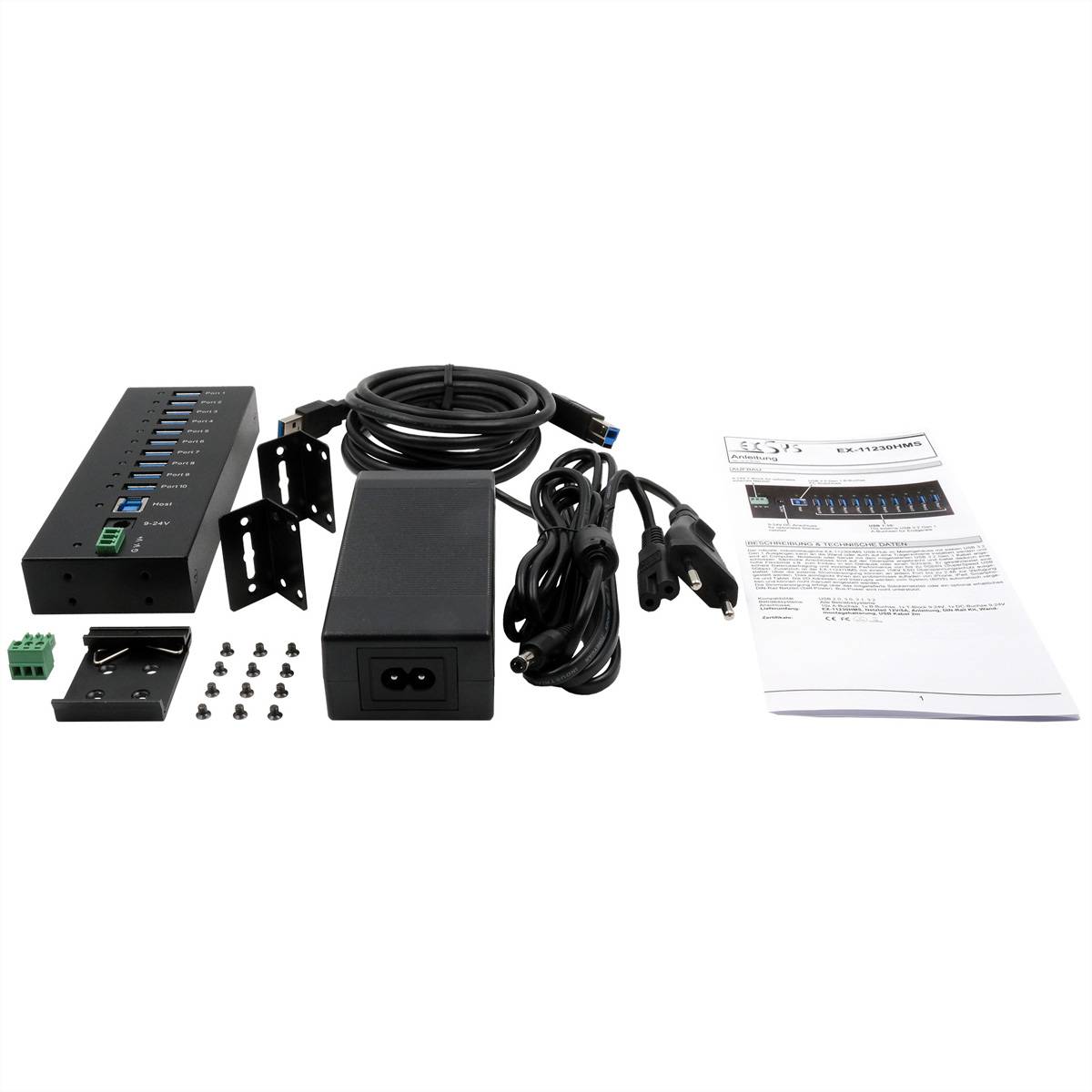

Scope of delivery
- EX-11230HMVS, USB 3.2 Gen 1 Cable , DIN Rail Kit, Wall Mount Kit, Manual
