Exsys USB-Hub USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
EXSYS EX-11295HMS port hub USB 3.2 Gen 2 (3.1 Gen 2) type B 10000 Mbit/s black
Highlights & Details
- Host Interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-B
- Hub interfaces: USB 3.2 3.1 Gen 2 (3.1 2 1st Gen) Type-A, USB 3.2 1st Gen (2 Gen 2) Type-C
- Number of connections: 4
- 10000 Mbit/s
- Black Metal
Technical specifications
- Host Interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-B
- Data transfer rate 10000 Mbit/s.
- Product type
USB hub
- Interfaces (output)
USB C®
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
580 g
- Width
135 mm
- Height
27.4 mm
- Depth
56.4 mm
- Cable length
1.5 m
- No of. USB type A 3.1 /3.2 2nd gen
2 x
- No. of USB 3.2 2nd Gen (USB 3.1)
2 x
- Cable specs
USB 3.2 2nd Gen
- Transfer rate (max.)
10 GBit/s
- Material (details)
Metal
- Used at
External
- PSU power
27 W
- Type
DC
- Input voltage
9 - 24 V
- UKCA
yes
- Minimum operating temperature
0 °C
- Ports quantity
4
- Terminal block port
yes
- Quantity per pack
1 Stück(e)
- DC-in jack
yes
- Maximum operating temperature
55 °C
- Card reader integrated
no
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
Documents & Downloads
Datasheet
Datasheet 3796940 Exsys USB-Hub USB hub Black
User & Safety Instructions
User & Safety Instructions 3796940 Exsys USB-Hub USB hub Black
Description

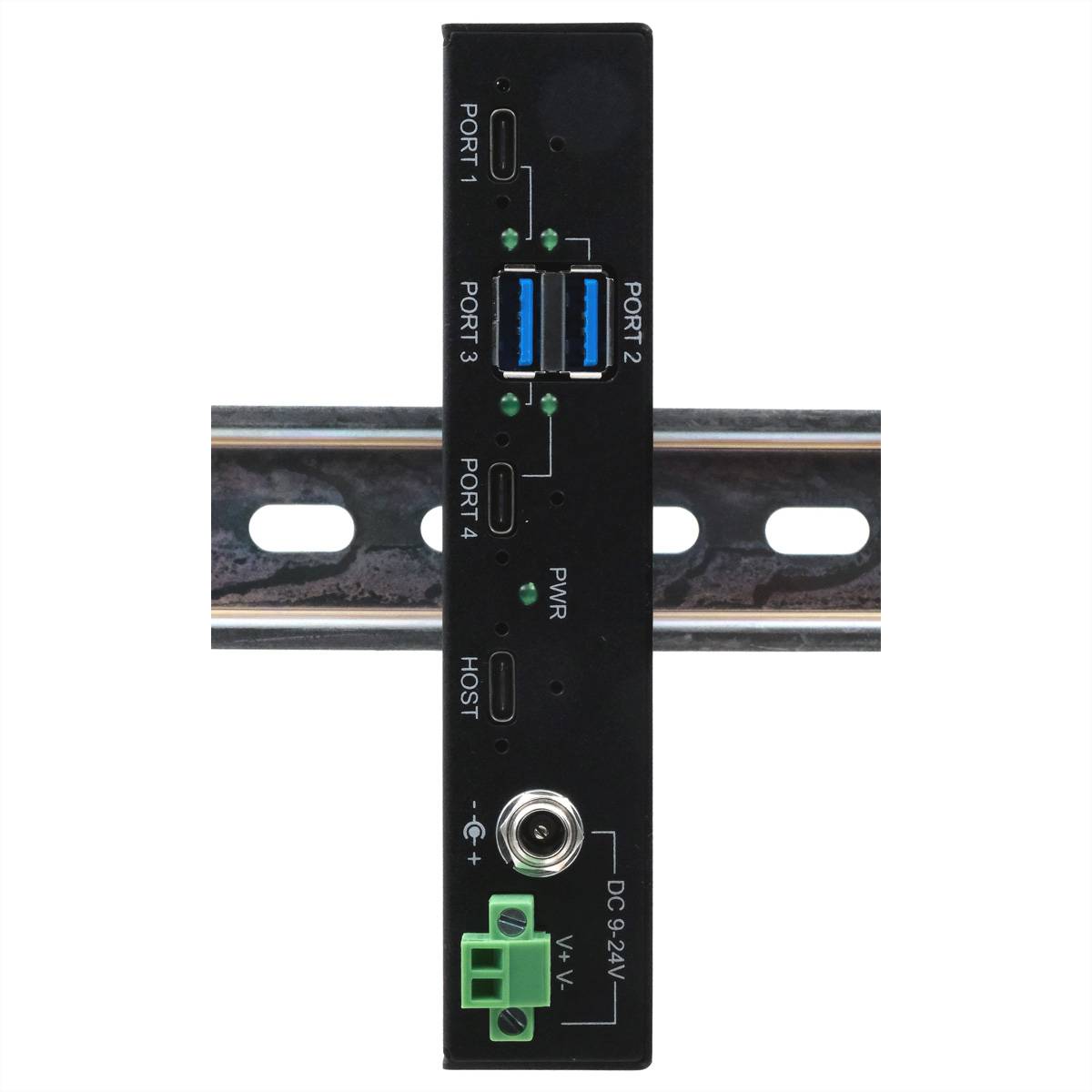

EXSYS EX-11295HMS 4 Port USB 3.2 Gen 2 HUB 2x C and 2x A ports The rugged, industrial-grade EX-11295HMS is a USB 3.2 Gen 2x1 metal HUB for up to four terminals which can be installed on the wall or on a carrier rail. . It is equipped with 2 USB-A ports and 2 USB-C ports for devices and 1 USB-C port for connecting to the PC and ensures secure data transfer and excellent performance of up to 10Gbit/s (SuperSpeed USB 10Gbps). . . Up to 2.5A can be made available at each port via the external power supply. This allows you to easily charge iPhone, iPad, smartphone and tablet. . The power is supplied via the accompanying wall plug transformer or an optionally available DIN-rail power supply (Self-Power). Bus Power is not supported.
This text is machine translated.
Features
- General:
- Host Interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-B
- Hub interfaces: USB 3.2 3.1 Gen 2 (3.1 2 1st Gen) Type-A, USB 3.2 1st Gen (2 Gen 2) Type-C
- Data transfer rate 10000 Mbit/s.
- Product color: Black
- Case material: metal
- Power supply type: Direct current
- Power supply 27 W
- Input voltage 9 – 24 V
- Width 135 mm
- Depth: 56.4 mm
- Height: 27.4 mm
- Quantity per pack: 1 pieces(s)
Scope of delivery

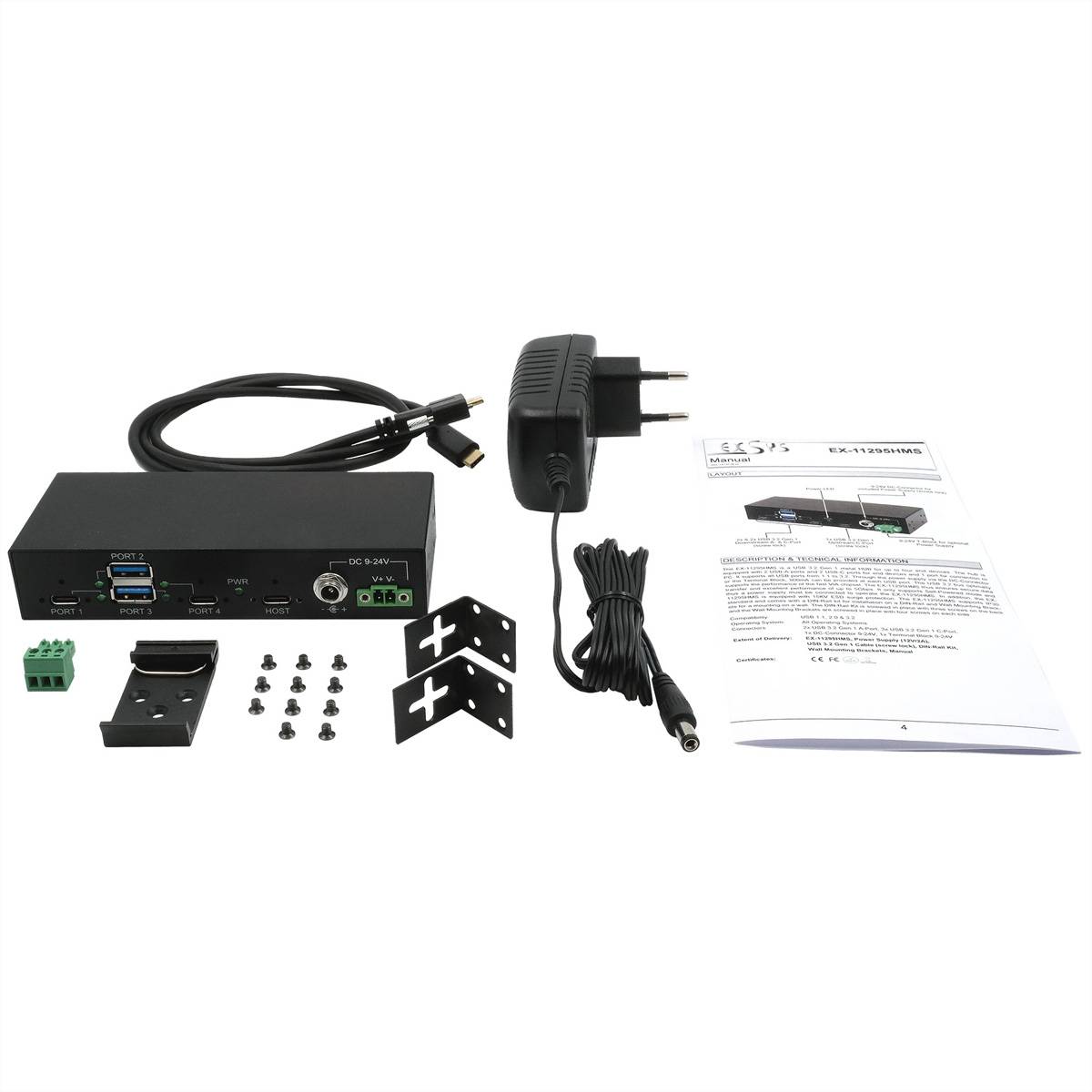

- EX-11295HMS, USB 3.2 Gen 2 cable screw-in 1.0 m, mains supply 12V/2A, DIN rail kit, wall mounting kit, manual
