Exsys USB-Hub USB hub White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-1250V interface hub USB 3.2 Gen 2 (3.1 Gen 2) Type C 10000 Mbit/s white
- Host interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-C
- Hub interfaces: USB 3.2 3.1 Gen 2 (3.1 2 1st Gen) Type-A, USB 3.2 1st Gen (2 Gen 2) Type-C
- Number of connections: 4
- 10000 Mbit/s
- White plastic
Technical specifications
- Host interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-C
- Data transfer rate 10000 Mbit/s.
- Product type
USB hub
- Factory colour
White
- Weight
620 g
- Width
151.1 mm
- Height
34 mm
- Depth
62 mm
- Cable length
1 m
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Material (details)
Plastic
- Max. output current
3 A
- Output voltage
12 V
- Input voltage
7 - 24 V
- UKCA
yes
- Operating temperature (T-T)
0 - 65 °C
- Ports quantity
4
- Wall mounting kit
yes
- Operating temperature (T-T)
32 - 131 °F
- Quantity per pack
1 Stück(e)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
- DC-in jack
yes
- DIN rail kit included
yes
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 75 °C
Documents & Downloads
Datasheet
Datasheet 3796878 Exsys USB-Hub USB hub White
User & Safety Instructions
User & Safety Instructions 3796878 Exsys USB-Hub USB hub White
Description

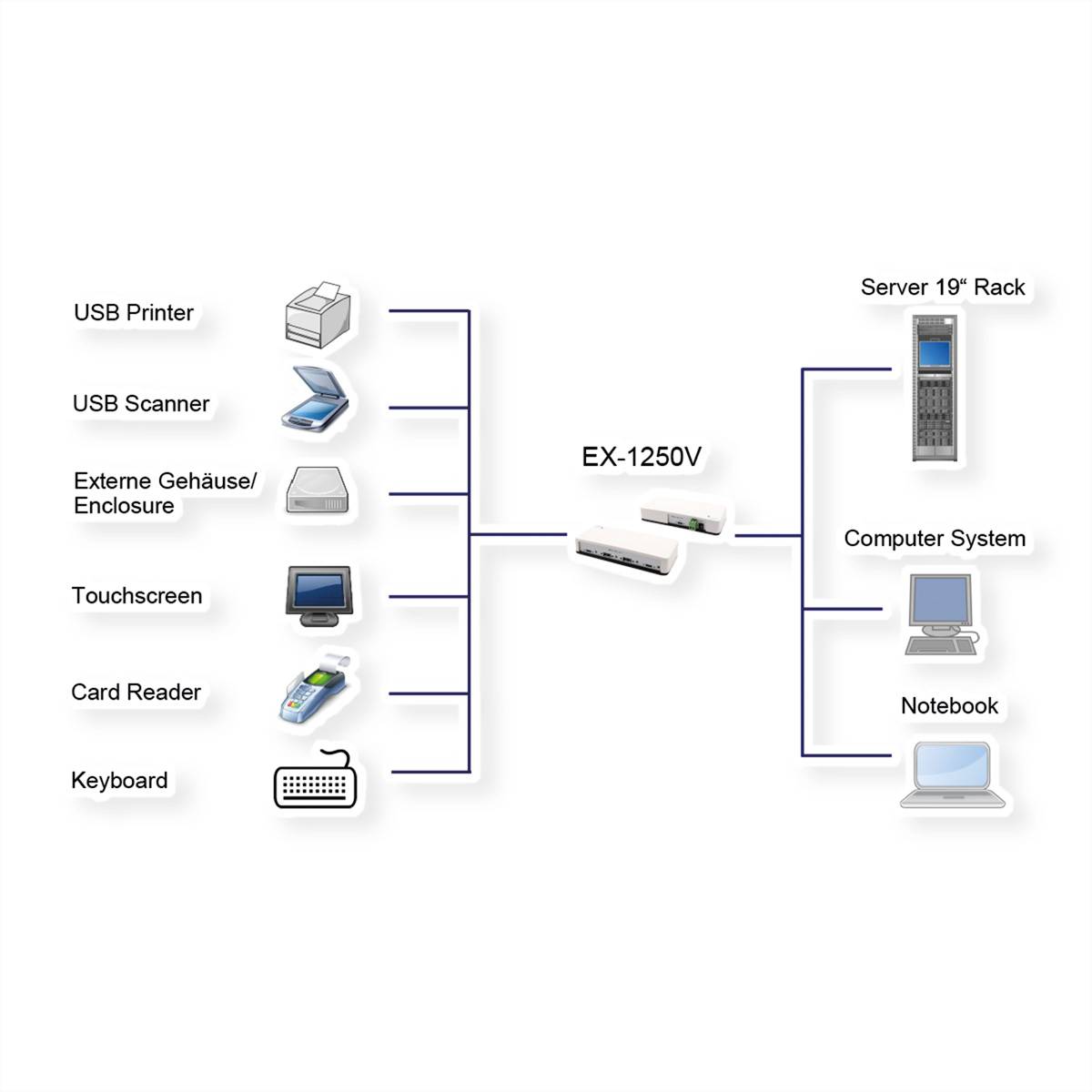

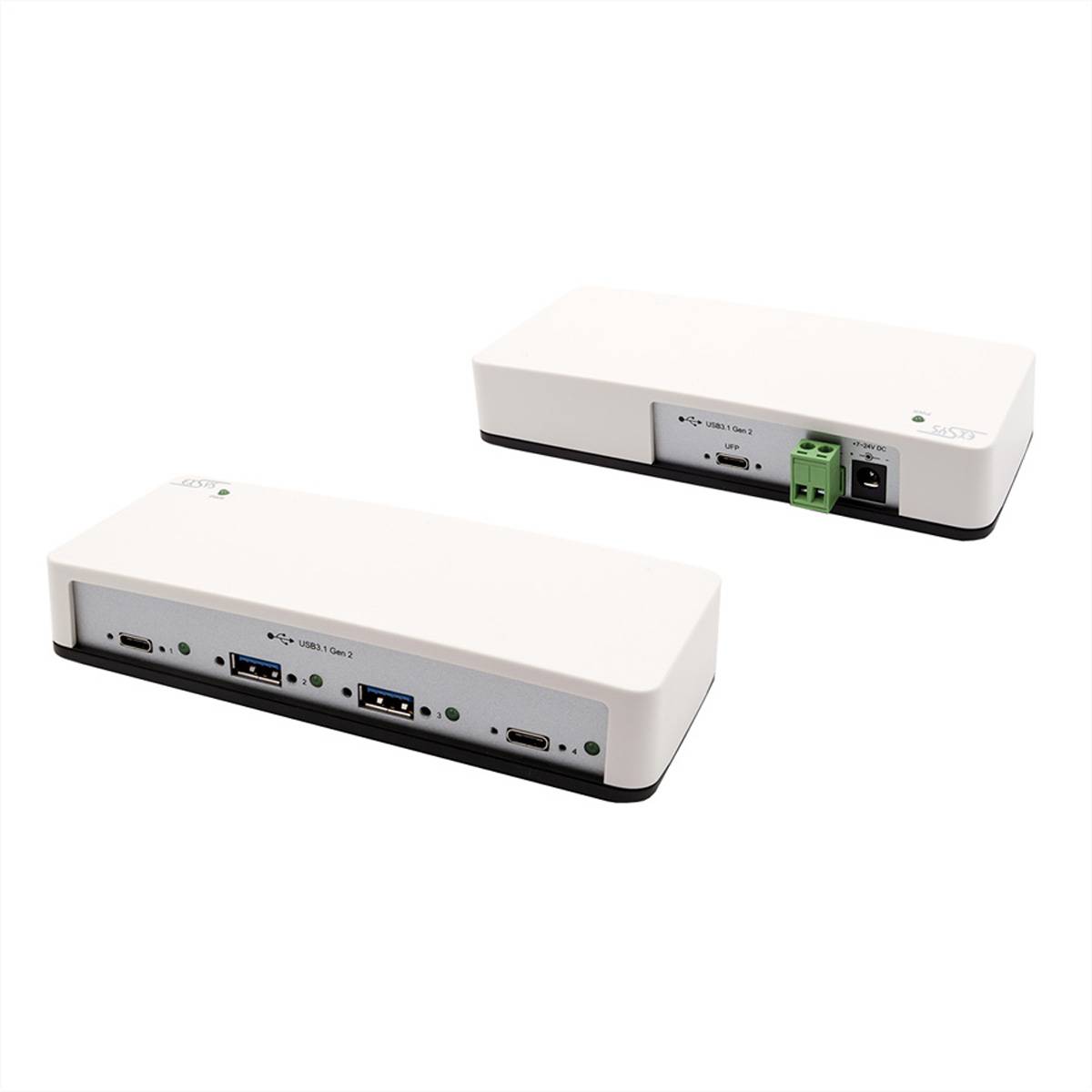

The EX-1250V is a USB 3.1 (Gen2) HUB and corresponds to the specifications of the universal serial bus (USB) version 3.1 (Gen2) and works with a data speed up to 10Gbps. It offers a USB-C upstream port as well as 4 downstream ports with two USB-C and two USB-A ports for screw mounting. With the in-built RISC USB controller the EX-1250V and supports a simultaneous operation of terminals with the different speeds of SuperSpeed plus(SS+), SuperSpeed (SS), high speed (HS), full speed (FS) and low speed (LS) It can be used in automation and office applications.
This text is machine translated.
This text is machine translated.
Features
- USB 3.1 (Gen2) HUB with two USB-C and two USB-A ports
- Supports 2.1A USB bus Power for each USB output
- Supports fast USB battery charging: CDP and DCP mode
- Supports all USB 1.1 to 3.0/3.1(Gen2) compatible peripherals
- Fully equipped USB-C port with a two-sided plug and cable alignment
- Power supply from +7V to +24V DC via terminal Block or DC-Jack
- Automatically supports bus or self Power
- Plastic housing for wall or rack mounting incl. DIN rail kit
- Status LED display for each port
- Chip set: VIA VL820-Q2
Scope of delivery
- EX-1250V, USB C-to-C cable, power supply unit 12V/3A DIN rail kit, wall bracket, manual
