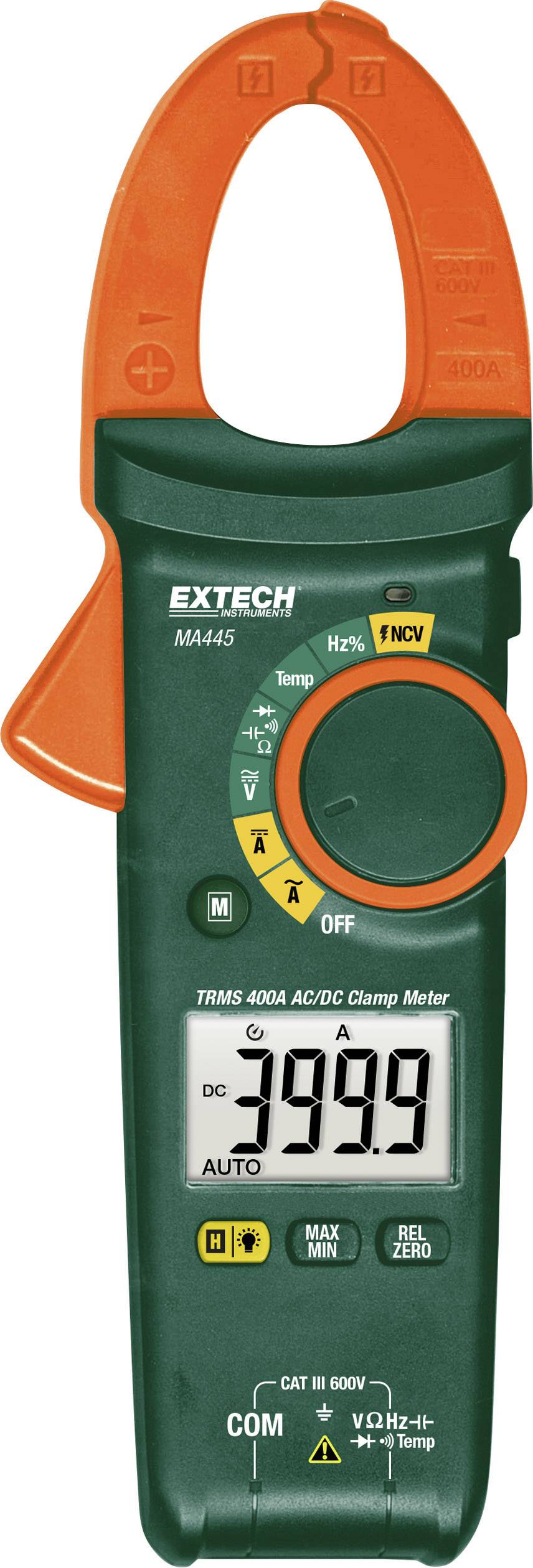

Extech MA445 Handheld multimeter, Clamp meter Digital CAT III 600 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Highlights & Details
True RMS 400A AC/DC Clamp Meter with NCV
- Compact Clamp Meter with Non-Contact Voltage Detector and Type K
Technical specifications
- 400.0A (1mA) True RMS
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
1 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.01 A
- A DC reading range (max.)
400 A
- A AC reading range (min.)
0.01 A
- Amperage reading range AC (max.)
400 A
- Reading range - capacity
0.01 nF - 40 mF
- Frequency reading range
01 Hz - 1 MHz
- Temperature
-40 to +1000 °C
- Basic accuracy
0.8 %
- Measurement type (details)
True RMS
- Power supply (details)
3x AAA battery
- Height
77 mm
- Width
229 mm
- Length
41 mm
- Weight
264 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
MA445
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 41 x 229 x 77 mm
- Temperature reading range (max.)
+1000 °C
- Temperature reading range (min.)
-40 °C
- Opening range of current clamps
30 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1589962 Extech MA445 Handheld multimeter, Clamp meter Digital CAT III 600 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 1589962 Extech MA445 Handheld multimeter, Clamp meter Digital CAT III 600 V Display (counts): 4000
Description
The MA445 is an 11 Function, 400A True RMS AC/DC Clamp Meter and NCV. Compact Clamp Meter with Type K temperature measurements. True RMS feature for accurate readings regardless of waveforms. 1.2" (30mm) jaw size fits conductors up to 500MCM. CAT III 600V safety rating. CE and ETL certified. Comes with test leads, three AAA batteries, general purpose Type K temperature probe and pouch.
Features
- True RMS feature for accurate readings regardless of waveforms. 1.2" (30mm) jaw size fits conductors up to 500MCM. Large backlit LCD display and built-in Flashlight. Functions include: NCV, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Type-K Temperature, Diode Test, Continuity
Scope of delivery
- Complete with test leads
- three AAA batteries
- general purpose Type K temperature probe and pouch
