Extech PQ3450 Network diagnostics 3-phase, 1-phase Data logger
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

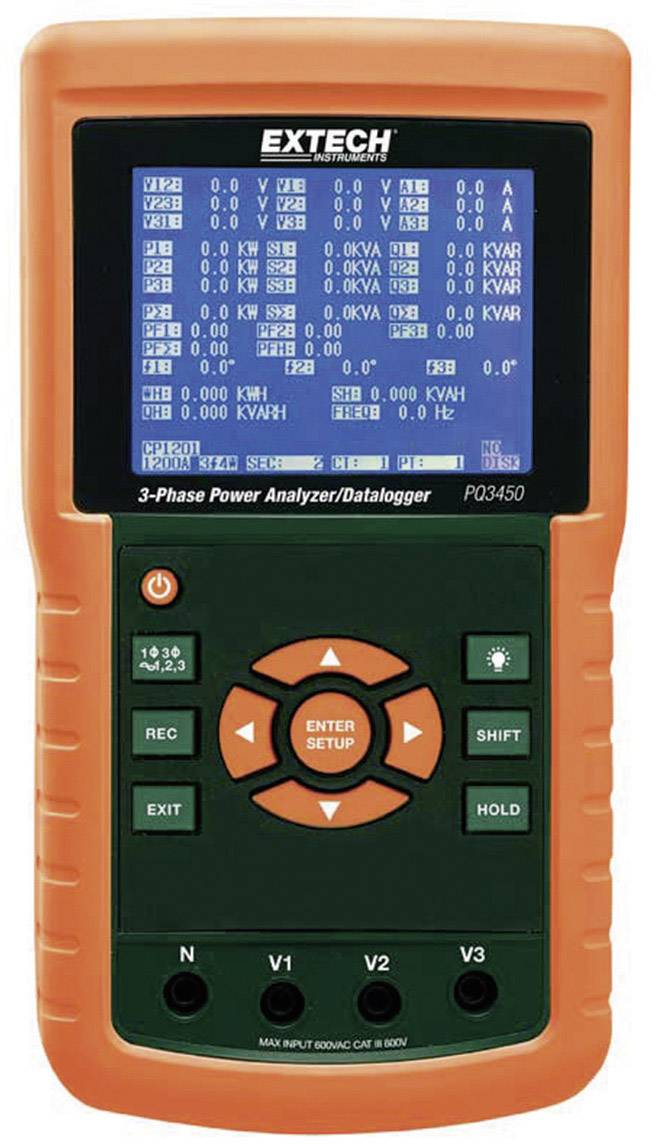

3-phase power analyzer PQ3450
- For 1 - 3 phases
- Integrated Data logger with SD card slot
- This text is machine translated.
Technical specifications
- V/AC (TRMS) Sfr 600.0 V
- A/AC1200A
- Active power (MW) 9.999 MW
- Apparent power (MVA) 9.999 MVA
- Reactive power (MVAR) 9.999 MVAR
- Power factor 0.00 - 1.00
- Frequency range 45 - 65 Hz
- Phase-180° to +180.0°
- Clamp-on ammeter input 200 mV, 300 mV, 500 mV; 1 V, 2 V, 3 V; adjustable
- Active power energy (MWH) 0.0 kWh - 9.999 MWH
- Apparent power energy (kVAh MVAH) 0.0 - 9.999 MVAH
- Reactive power energy (MVARH) 0.0 kVARh - 9.999 MVARH
- Data acquisition 30000 measured values (on 2 GB SD-card)
- Measuring range 10 - 600 V/AC
- Product type
Network diagnostics
- Reading category
CAT III 600 V
- Display (details)
Monochrome LCD
- Phase detection
Yes
Manufacturer's standards (no certificate)
- Power supply (details)
8 AA batteries (AA), power supply
- Dim
(L x W x H) 22.5 x 12.5 x 6.4 cm
- Weight
1 kg
- Measurement type
3-phase
1-phase
- Features
Data logger
- Width
12.5 cm
- Height
6.4 cm
- Length
22.5 cm
- Interfaces
RS232
Documents & Downloads
Datasheet
Datasheet 103815 Extech PQ3450 Network diagnostics 3-phase, 1-phase Data logger
User & Safety Instructions
User & Safety Instructions 103815 Extech PQ3450 Network diagnostics 3-phase, 1-phase Data logger
Description
Compact and robust power measuring device with voltage and current measurement inputs for up to 3 phases. On the display extensive parameters for performance and phase analysis. The basic settings as well as the selection of the measuring transducer is via an easy-to-setup menu.
This text is machine translated.
This text is machine translated.
Features
- Large, illuminated numeric dot-matrix
- LC display
- Optional clamp-on ammeters or Flex clamp-on ammeter can be connected
- Adjustable current (CT) and potential-converter (PT) ratio for high-power distributor
- Recording of up to 30,000 measured values on a SD memory card in Excel ® format
- Recorded measurement values can via SD memory card directly in table programs are to be imported
- Broad Sampling Rate Range (2 s to 2 h)
- Integrated clock and calendar function
- User-friendly screen menu
- Robust, impact-resistant housing
- RS232 interface cable.
Scope of delivery
- 4 voltage measuring leads
- 4 measuring tips
- 4 alligator clips
- Batteries
- SD memory card with 2 GB
- Power supply unit
- Hard case
- User manual.
