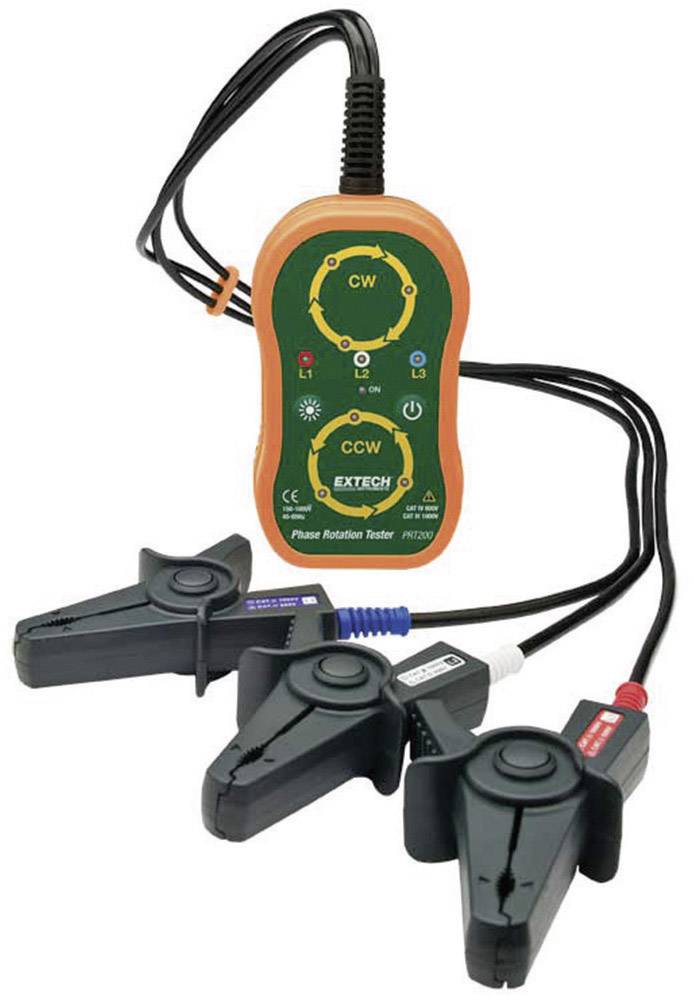

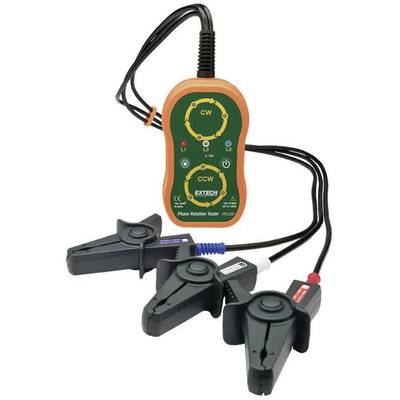

Extech PRT200 Rotating EMF indicator CAT IV 600 V LED, Acoustic
EAN:
Part number:
Item no:
Datasheet (PDF)
5 Piece(s)
Sales and shipping:
Number
Total (€ 226.05 / piece)
€
Only 5 Piece(s) available
Highlights & Details
Contact free rotation tester PRT 200
- There is no direct conductor contact is necessary
- Check is carried out by the insulation
Technical specifications
- Measuring principle: Static Induction
- Measuring voltage: 75 - 1000 V/AC
- Frequency range: 45 - 65 Hz
- Maximum conductor diameter 33 mm
- Measuring cable length per: 76 cm
- Connection: Alligator clips, insulated
- Power supply: 4 AA batteries
- Max. frequency
65 Hz
- Frequency range
45 Hz - 65 Hz
- V AC reading range
75 up to 1000 V
Manufacturer's standards (no certificate)
- Display
LED
Acoustic
- Reading category
CAT IV 600 V
- Reading type
Rotating magnetic field
Phase
- Type
PRT200
- Min. frequency
45 Hz
- V AC reading range (max.)
1000 V
- V AC reading range (min.)
75 V
- Product type
Rotating EMF indicator
Documents & Downloads
Datasheet
Datasheet 103818 Extech PRT200 Rotating EMF indicator CAT IV 600 V LED, Acoustic
User & Safety Instructions
User & Safety Instructions 103818 Extech PRT200 Rotating EMF indicator CAT IV 600 V LED, Acoustic
Conformity certificate
Conformity certificate 103818 Extech PRT200 Rotating EMF indicator CAT IV 600 V LED, Acoustic
Description
The direction of rotation tester PRT200 enables the identification of the phase sequence and detection of the phase status up to 1000 V/AC without direct access to the live inner conductor. The check is carried out by connecting the alligator clips to the insulated conductor indication is optical and acoustic.
This text is machine translated.
This text is machine translated.
Features
- Fully insulated (contactless) alligator clips with large clamp opening
- 75 - 1000 V/AC input voltage with frequency range 45 - 65 Hz
- LED display for rotating field direction and phase-live
- Robust housing with mounting magnets
- Adjustable LED brightness
- Battery status indicator
- Auto power-off.
Scope of delivery
- Batteries
- Bag
- User manual.
