Buy Extech RPM250W Tachometer | Conrad Electronic

Digital Laser Tachometer with large display shows '99999 RPM'. Device has buttons for Start, Stop and Light. Marking 'EXTECH RPM250W'.

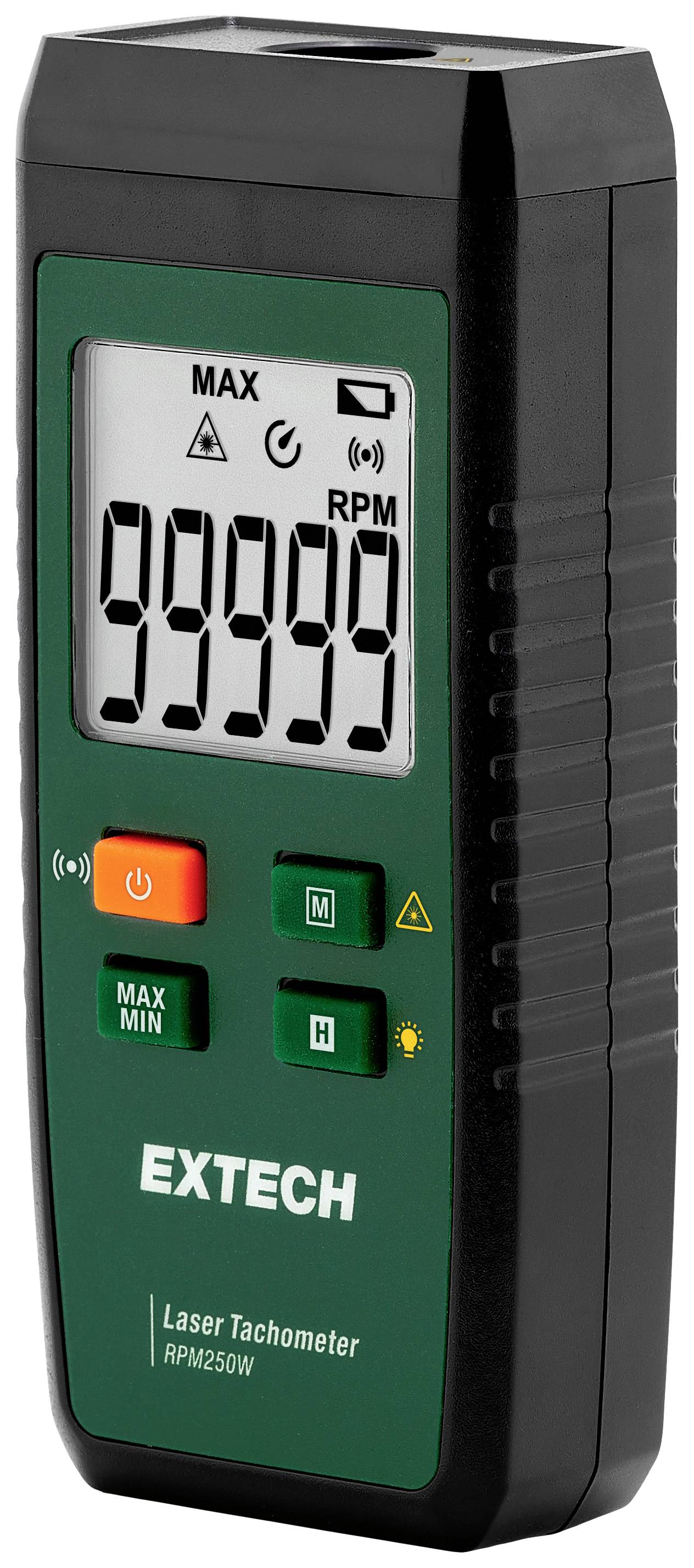

A digital laser tachometer displaying '99999' RPM. It has buttons for various settings and is branded 'EXTECH'.

A laser tachometer with a digital display showing '65535 RPM'. The device has green and orange operating buttons.

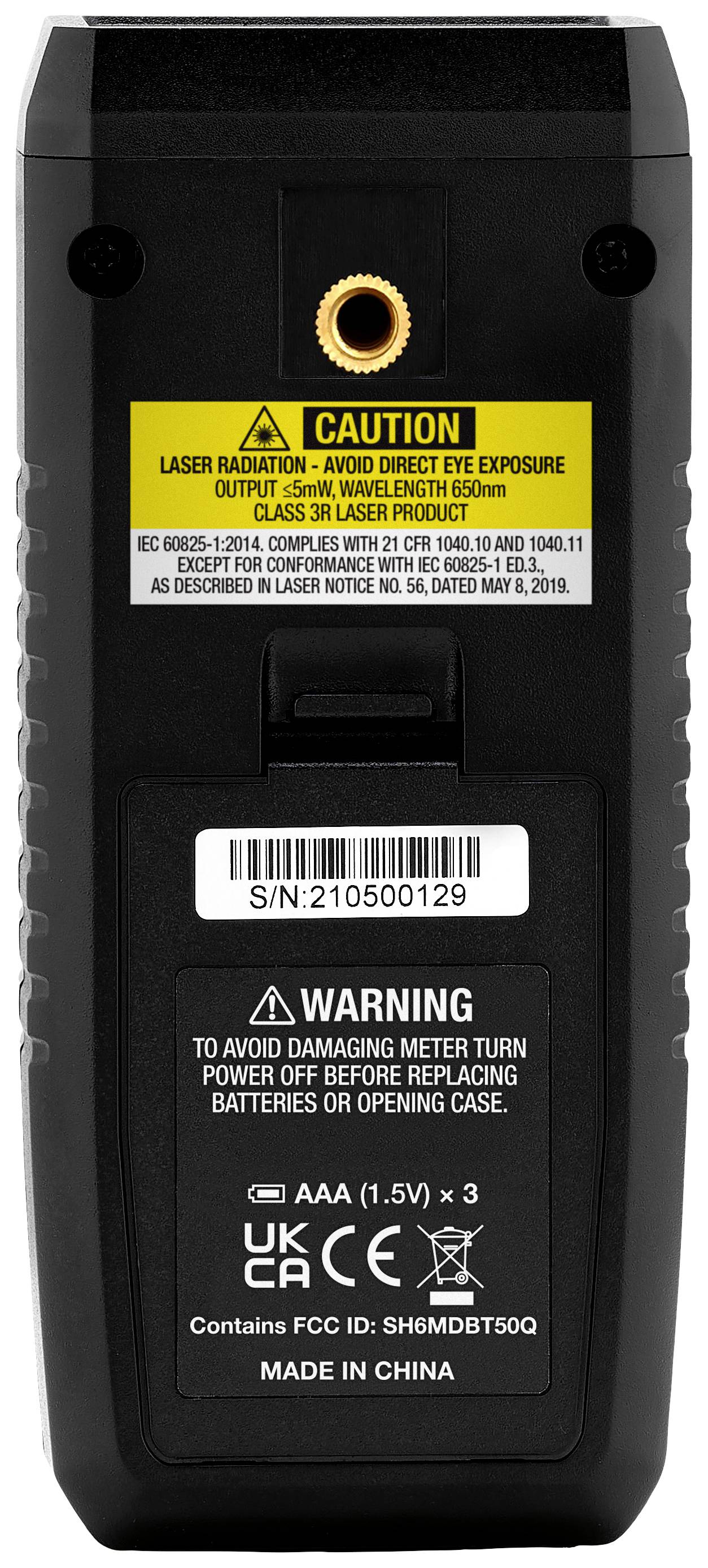

'Electrical device viewed from behind with warning labels and serial number. Battery compartment with space for three AAA batteries. Indication of laser radiation.'

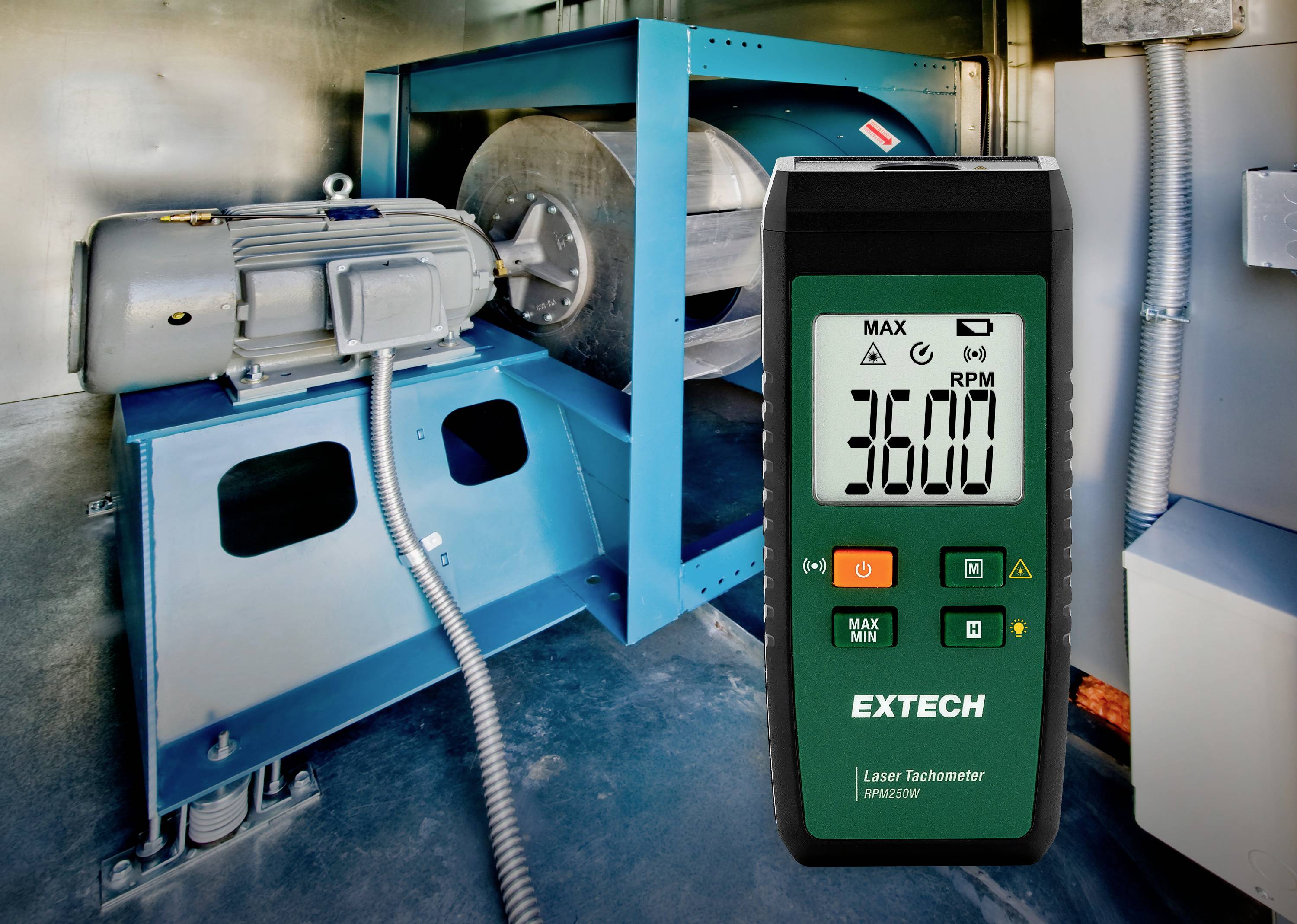

A laser tachometer displays '3600 RPM'. In the background, there is a machine with an engine.

1/5

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 105.03 / piece)

€ 105.03

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

Laser Tachometer RPM250W

Bluetooth® connectivityDisplay and transfer of speed data of rotating devices directly from a mobile device via the free ExView app

Technical specifications

Temperature range: 0°C to +40 °C

Reading distance: 5 cm - 5 m

Operating voltage: 3x AAA battery

Dim: (L x W x H) 28 x 53 x 120 mm

Weight: 81.6 g

Height: 120 mm

Length: 28 mm

Width: 53 mm

: Manufacturer's standards (no certificate)

Display: LCD

Type: RPM250W

Product type: Tachometer

Documents & Downloads

Datasheet

Datasheet 2589633 Extech RPM250W Tachometer

User & Safety Instructions

User & Safety Instructions 2589633 Extech RPM250W Tachometer

Conformity certificate

Conformity certificate 2589633 Extech RPM250W Tachometer

Description

The RPM250W is a compact laser tachometer with Bluetooth® connectivity that allows construction and maintenance professionals to view and share rotational speed data from rotating objects directly from a mobile device using the free ExView app. With the ability to capture data, view trends, set visual and audible alarms, and send reports, users can gain deeper insight into the state of the equipment.

This text is machine translated.

Features

Non-contact speed measurement of rotating objectsIncrease the working distance up to 500 mm (1. Transfer, view, and share data directly from a mobile device via a Bluetooth connection to the ExView appCount up to 99,999 with the counter functionFreeze the display with 'Data Hold'Save battery life with the automatic shut-off functionMounting on a tripod with a standard 1/4"-20 mounting screwView data on both the RPM250W's bright backlit LCD display and the app on iOS® or Android™ mobile devices (provides both day and dark modes)Simultaneous connection of up to eight compatible Extech Connected 250W Series meters to the appSet up data recording and program high/low alarm sounds via the appExport data in CSV file format or send PDF reports - including measurement location photos - via the app

Scope of delivery

RPM250W
3x AAA battery (1.5V)
User manual

System requirements

EXview app compatibility: IOS 13.0 and higher & Android 9.0 and higher
