Extech SDL710 Pressure gauge Pressure -200 - +200 mbar
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 385.71 / piece)
€ 385.71
plus VAT.
14-day return policy included
Highlights & Details
Differential Pressure Manometer/Datalogger
- Datalogging Manometer which Records data on an SD card in Excel format
Technical specifications
- 2.9psi (0.001psi)
- Power supply (details)
6 Mignon batteries (AA)
- Product type
Pressure gauge
- Reading range
-200 - +200 mbar
- Unit of measurement
Pressure
- Reading range
Psi, kPa, hPa, mmHg; kg/cm²; mbar, inH2O;mH2O; inHg; Atp
Manufacturer's standards (no certificate)
- Display range
+/- 200 mbar
- Print resolution
0.1 mbar
- Sensor
internal
- Accuracy
2 %
- Dim
(L x W x H) 45 x 191 x 77 mm
- Weight
250 g
- Reading range (max.)
+200 mbar
- Reading range (min.)
-200 mbar
- Width
191 mm
- Height
77 mm
- Length
45 mm
Documents & Downloads
Datasheet
Datasheet 1589978 Extech SDL710 Pressure gauge Pressure -200 - +200 mbar
User & Safety Instructions
User & Safety Instructions 1589978 Extech SDL710 Pressure gauge Pressure -200 - +200 mbar
Description

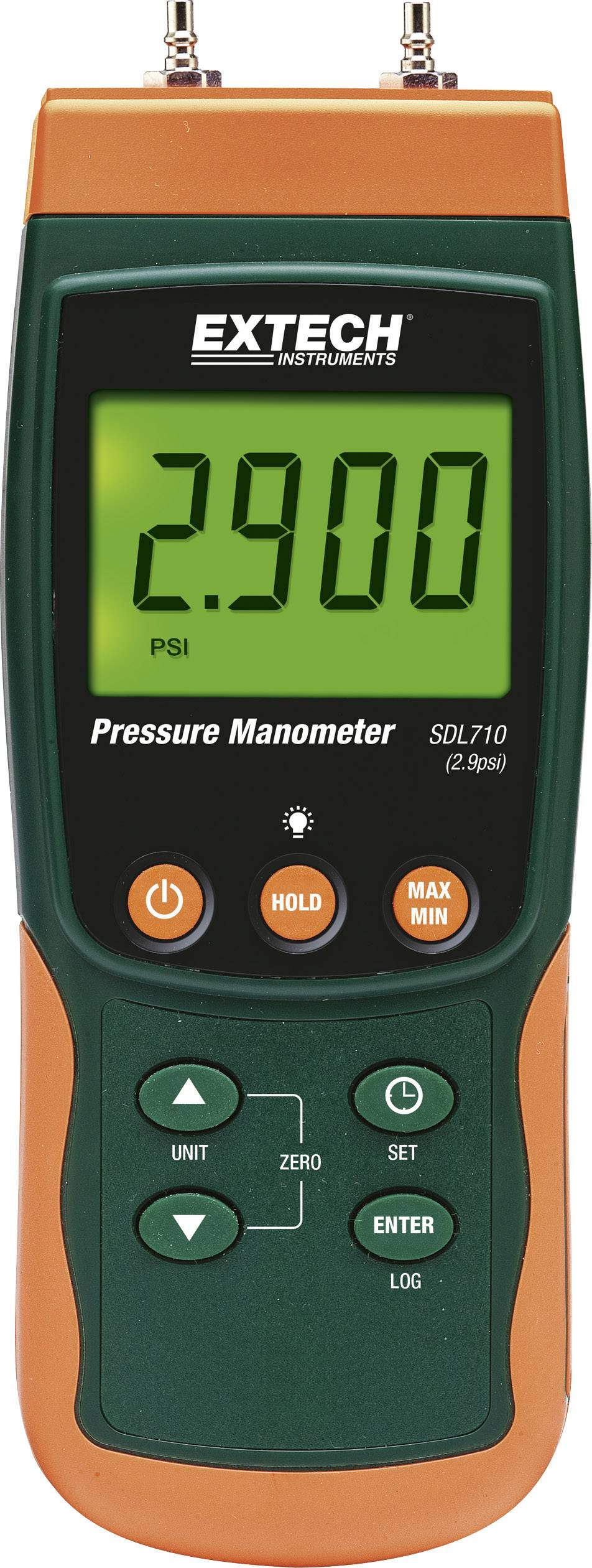

The SDL710 is a Low Range Differential Pressure Manometer. Measure and datalog pressure readings at 2.9psi (200mbar). Dual differential inputs with internal sensors. Manually store up to 99 readings, while SD memory card (included) allows continuous datalogging and readings can easily be exported to an Excel format for further analysis. Includes meter, batteries, manual, adaptor and hard carrying case.
Features
- 2.9psi range. 10 selectable units of measure. Stores 99 readings manually. Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC
Scope of delivery
- Includes meter
- batteries
- manual
- adaptor and hard carrying case
