Extech UM200 Component tester Digital Data logger CAT I Display (counts): 60000
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
UM200
- CAT I
Technical specifications
- Product type
Component tester
- Reading range - resistance
ΜΩ 1 - 6 kΩ
- Basic accuracy
0.25 %
- Interfaces
optical
- Power supply (details)
115 - 230 V/AC; Li-Po battery
- Height
257 mm
- Width
155 mm
- Weight
1160 g
Manufacturer's standards (no certificate)
- Reading category
CAT I
- Type
UM200
- Display
Digital
- Display (counts)
60000
- Dim
(W x H) 155 mm x 257 mm
- Features
Data logger
- Interfaces
USB
Documents & Downloads
Datasheet
Datasheet 103849 Extech UM200 Component tester Digital Data logger CAT I Display (counts): 60000
User & Safety Instructions
User & Safety Instructions 103849 Extech UM200 Component tester Digital Data logger CAT I Display (counts): 60000
Description

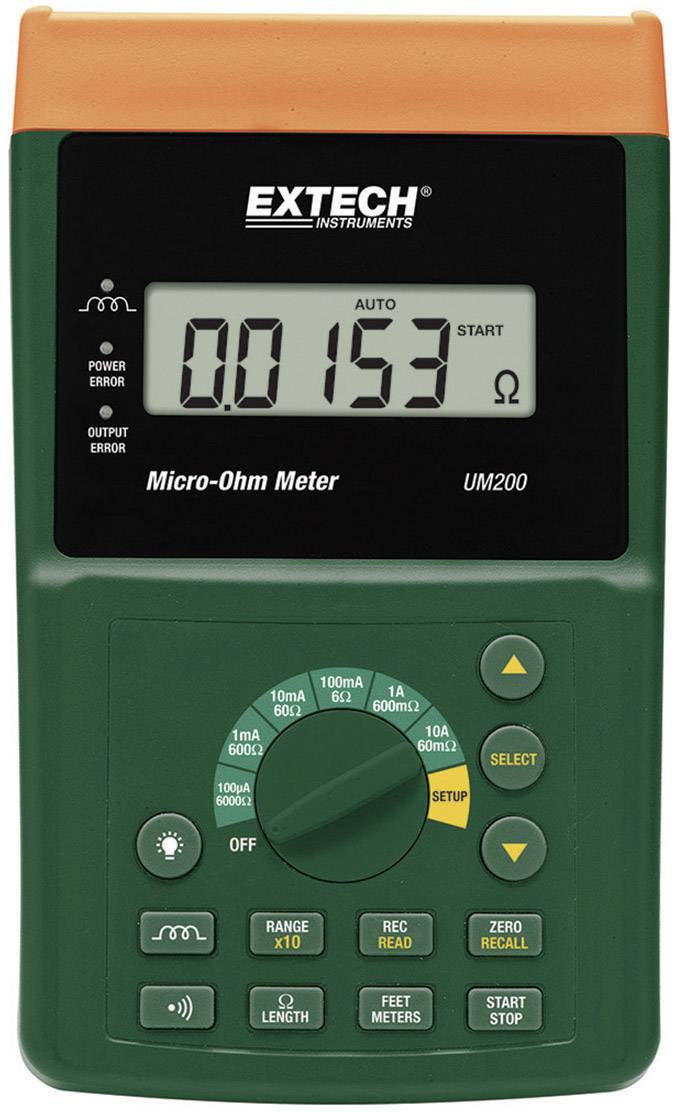

The µΩ of 400 by 200 enables the resistance measurement up to 6000 Ω. The high resolution enables the measurement low-ohm components and circuits. A cable length measuring function is integrated. So you can choose any cable length due to a reference measurement (1 m). 20 Reference values can be stored in the device. The measuring device is for resistive and inductive components.
This text is machine translated.
This text is machine translated.
Features
- Illuminated LC display
- Integrated measured value storage for up to 3000 data records
- Hi/Lo alarm
- Powerful Li-Po battery
- USB interface.
Scope of delivery
- Kelvin measuring leads
- Li-Po battery pack
- Charging power supply
- USB Interface
- Software CD
- Bag
- User manual.
