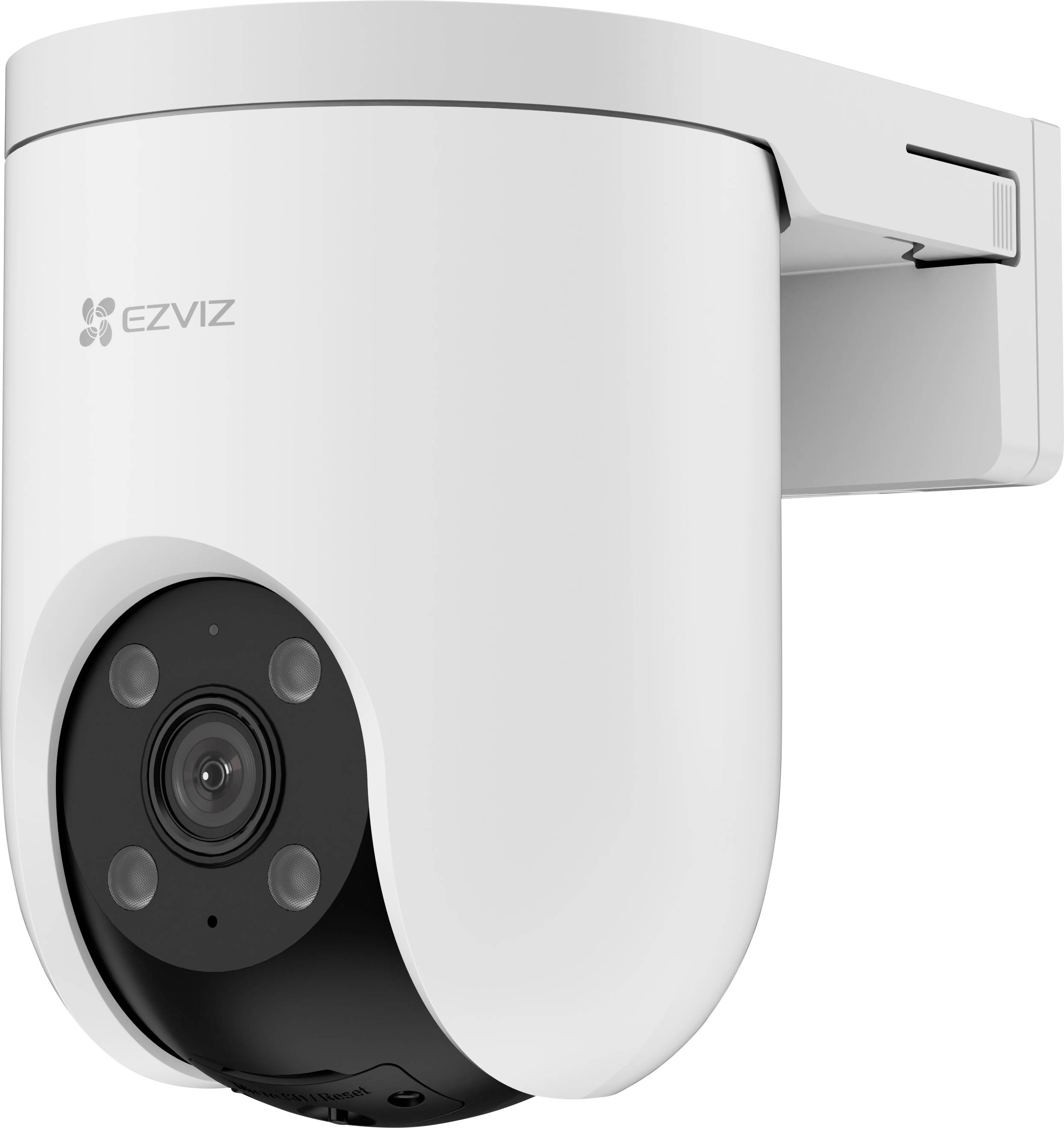

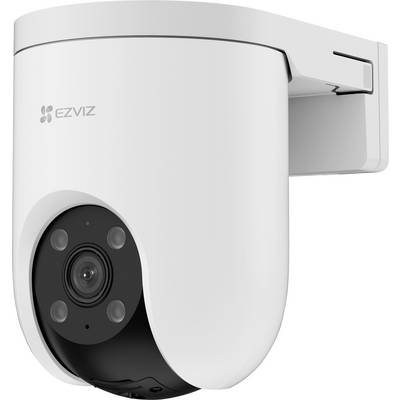

ezviz H8c 303103104 Corded IP CCTV camera 2304 x 1296 p
EAN:
Part number:
Item no:
Technical specifications
- DC (DC) connection: Yes
- Ethernet/LAN: Yes
- Power consumption (Max.) 12 W.
- Operating temperature -30 °C - 50 °C
- Wi-Fi: No.
- Operating relative humidity: 0 - 95%
- Full-screen: Yes
- Number of sensors: 1
- Mounting type: Ceiling/wall
- Weather resistance: Yes
- Power source: Direct current, PoE
- DC output current 1 a
- Tilt angle range 0 - 80°
- Image sensor size 25.4 / 2.8 mm (1 / 2.8")
- Rotation range 0 - 350°
- Infrared (IR) shut-off filter: Yes
- Auto-search: Yes
- Day/ Night mode: Yes
- Wide Dynamic Range (WDR): Yes
- Built-in light: Yes
- Screws included: Yes
- AC mains adapter: Yes
- Number of cameras: 1
- Waterproof connector: Yes
- Cloud services supports ezviz cloud
- Up to 30 frames per second: 30 fps
- Supported video formats: H.264, H.265
- Night view: Yes
- Number of Ethernet LAN connections (RJ-45): 1
- Bluetooth: No.
- Ethernet Interface Type: Fast Ethernet
- Number of lenses: 1
- Maximum aperture: 1.6
- Password protection: Yes
- Anti-flickering: Yes
- Heart Rate: Yes
- Digital Watermark: Yes
- Configurable Region: Yes
- Max memory card size: 512 GB
- Lens connection M12
- Noise suppression: Yes
- Noise cancelling technology: 3D-noise suppression
- Video compression formats H.264, H.265
- Digital Wide Dynamic Range (DWDR): Yes
- Video streaming: Yes
- Product type
CCTV camera
- CCTV features
Saves footage on SD card
2-way communication
Motion detector
IR LEDs
Speaker
Microphone
Identity recognition
Pan-tilt function
- Camera type
Dome camera
- Power supply
12 V / DC
- Resolution (max.)
2304 x 1296 p
- Sensor size
9.07 mm (1/2.8")
- Sensor type
CMOS
Manufacturer-specific
- Focal length
4 mm
- Max. viewing angle hor.
89°
- Vertical viewing angle
46°
- Vertical viewing angle
104°
- Transfer type
Corded
- Light sensitivity (- IR)
0 lx
- IR range (max.)
30 m
- Used at
Outdoors
- Type
microSD card
- Width
100 mm
- Height
136 mm
- Depth
140 mm
- Dim
(W x H x D) 100 x 136 x 140 mm
- Weight
525 g
- Factory colour
White
- Signal standard
IP
- UKCA
yes
