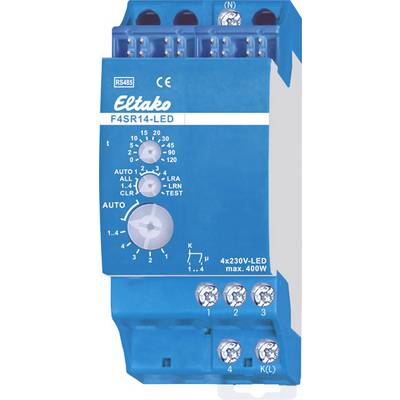

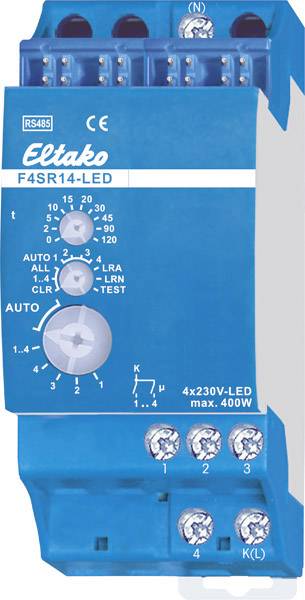

F4SR14-LED Eltako RS485 Actuator 4-channel DIN rail Switching capacity (max.) 1800 W
EAN:
Part number:
Item no:
Number
Total (€ 60.50 / piece)
€ 60.50
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Product type
Actuator
- Series
Eltako
- Max. switching capacity
1800 W
IP20
- Power supply (LOV)
via PSU bus
- Operating voltage
12 V
- Mounting type
DIN rail
1800 W
- Data transfer (Smart Home)
RS485
- Channels
4
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
0
- Factory colour
Multicolour
DRA (DIN-rail adapter)
16 A
0.1 W
400 W
12-12 V
FALSE
TRUE
FALSE
1800 W
TRUE
4
2
None
FALSE
TRUE
FALSE
FALSE
IP20
FALSE
TRUE
FALSE
TRUE
TRUE
400 W
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162190 F4SR14-LED Eltako RS485 Actuator 4-channel DIN rail Switching capacity (max.) 1800 W
Description
Surge current relay with 4 channels, isolated from the supply voltage, with DX technology. Bidirectional. Stand-by loss only 0.1 watt. Connection to the Eltako RS485 bus. Cross-wiring bus and power supply with jumper. 230V LED lamps can be switched up to 400 watts per NO contact and up to a maximum inrush current of 25A/100ms. To do this, simply connect the N conductor to the clamp (N) and L to K(L). This results in an additional standby loss of only 0.1 watt. If all 4 relays of the F4SR14-LED are switched on, 1 watt is required. If the supply voltage fails, it is switched off in a defined way. The channels can be taught in independantly of each other as A SINGLE AND/or SINGLE channel.
