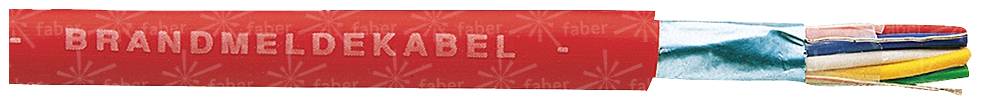

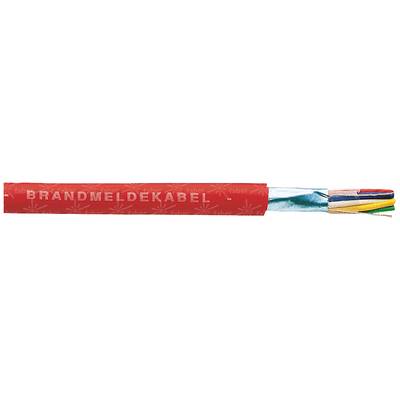

Faber Kabel 100058 Fire alarm cable J-Y(ST)Y 6 x 2 x 0.8 mm Red Sold per metre
EAN:
Part number:
Item no:
Product type
Fire alarm cable
Cable type
J-Y(ST)Y
No. of leads
12 x
Cross section (each core)
0.8 mm
Content
Sold per metre
Datasheet (PDF)
Quantity (meter)
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Technical specifications
- Product type
Fire alarm cable
- Cable type
J-Y(ST)Y
- No. of leads
12 x
- Cross section (each core)
0.8 mm
- Twisted pair cabling (part 1)
Yes (1)
- Cross section
6 x 2 x 0.8 mm
- Cable features
Shielded
Flame-retardant
- Outside Ø
10.50 mm
- Factory colour
Red
- Content
Sold per metre
- Nominal voltage
300 V
- Bend radius (no. of ODs for fixed installation)
7.6
- Packaged
No
- Sold per metre
Yes
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
100058
- Insulation material
PVC
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
+50 °C
- Core layout
Cu, blank, Class 1 = single-wire
- Type
J-Y(ST)Y
- Max. length sold by the metre
500 m
Documents & Downloads
Datasheet
Datasheet 1499160 Faber Kabel 100058 Fire alarm cable J-Y(ST)Y 6 x 2 x 0.8 mm Red Sold per metre
User & Safety Instructions
User & Safety Instructions 1499160 Faber Kabel 100058 Fire alarm cable J-Y(ST)Y 6 x 2 x 0.8 mm Red Sold per metre
Description
Installation cable for message and signal transfer on and under plaster in dry and damp rooms as well as for fixed laying at external walls with protection from the sun. Through sheath imprint, this cable is especially designed for use in fire detection systems. Stranding: wires to pair (2-paired cable is star-quad stranded), pairs in layers.
