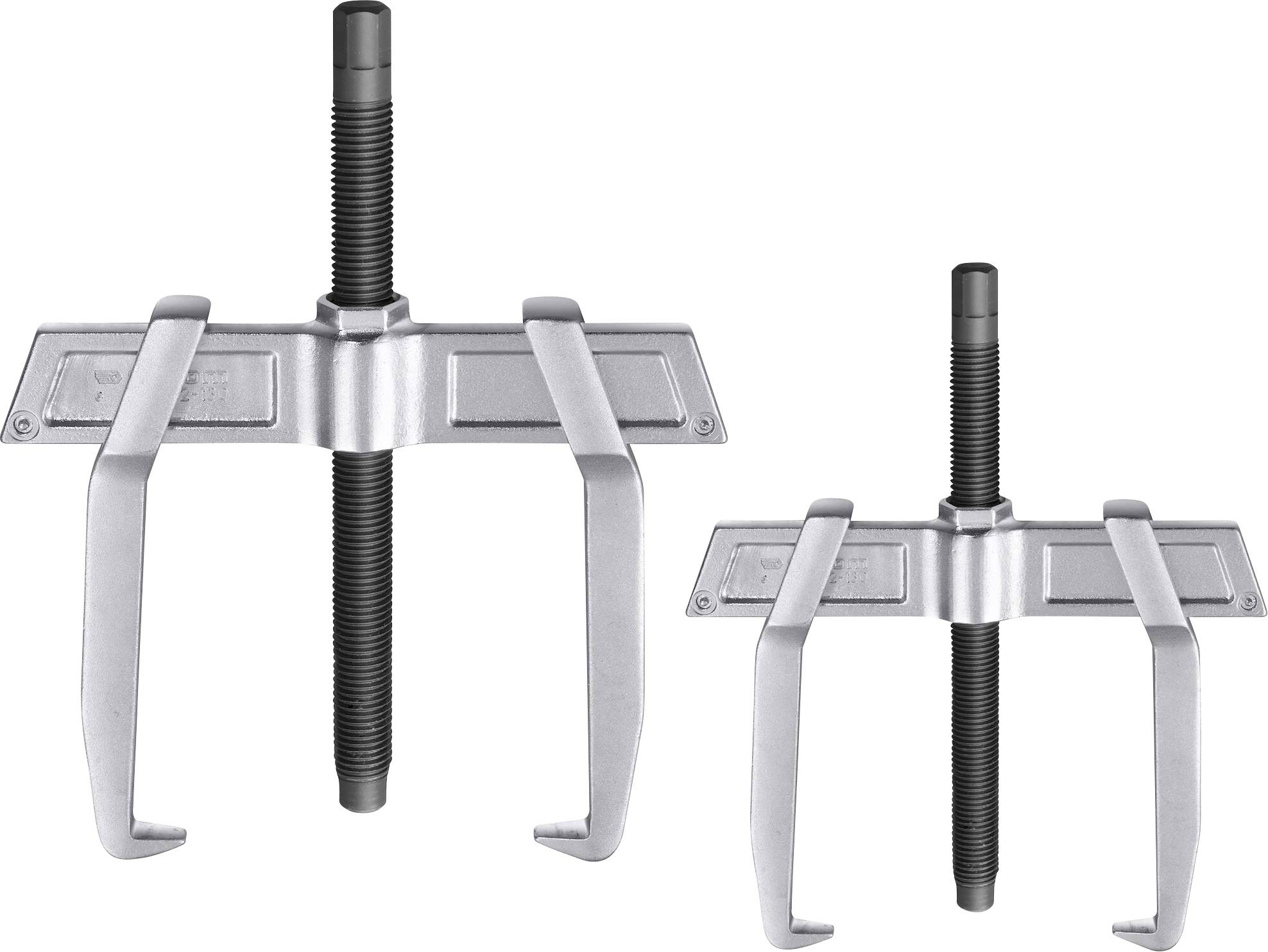

Facom U.232J2PB Puller set No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
14-day return policy included
Highlights & Details
2-piece extractor set With adjustable volume
- 2-piece extractor set With 2 adjustable hooks (can be used inside and outside)
- Clamping range 30 - 60 mm
- Clamping range 86 - 136 mm
Technical specifications
- U.232-65: Clamping range 30 - 60 mm
- Height 133 mm, width 115 mm, length 105 mm
- Weight 400 g
- HEX size 16 mm
- U.232-130: Clamping range 86 - 136 mm
- Height 182 mm, width 186 mm, length 155 mm
- Weight 1000 g
- HEX size 21 mm
- Adjustment range
30 - 60 mm; 86 - 136 mm
- Content
1 Set
- Hooks
2
- Max. length
155 mm
- Product type
Puller set
- Span width (max.)
136 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3192343 Facom U.232J2PB Puller set No. of hooks 2
Description
Locking by tightening the 6-edge with a key
Simple tool-free setting and adjustment (interior and exterior removal function)
Securing the withdrawal arms: A spring-loaded pin at the end of the yoke prevents accidental adjustment or even falling out of the pulling arm
Mechanical locking of the pull-off arms when tightening
Turning protection - solution
This text is machine translated.
Simple tool-free setting and adjustment (interior and exterior removal function)
Securing the withdrawal arms: A spring-loaded pin at the end of the yoke prevents accidental adjustment or even falling out of the pulling arm
Mechanical locking of the pull-off arms when tightening
Turning protection - solution
This text is machine translated.
Scope of delivery
- U.232-65: For smaller applications in difficult to reach areas (clamping range 30 - 60 mm)
- U.232-130: For all popular applications (clamping range 86 - 136 mm)
