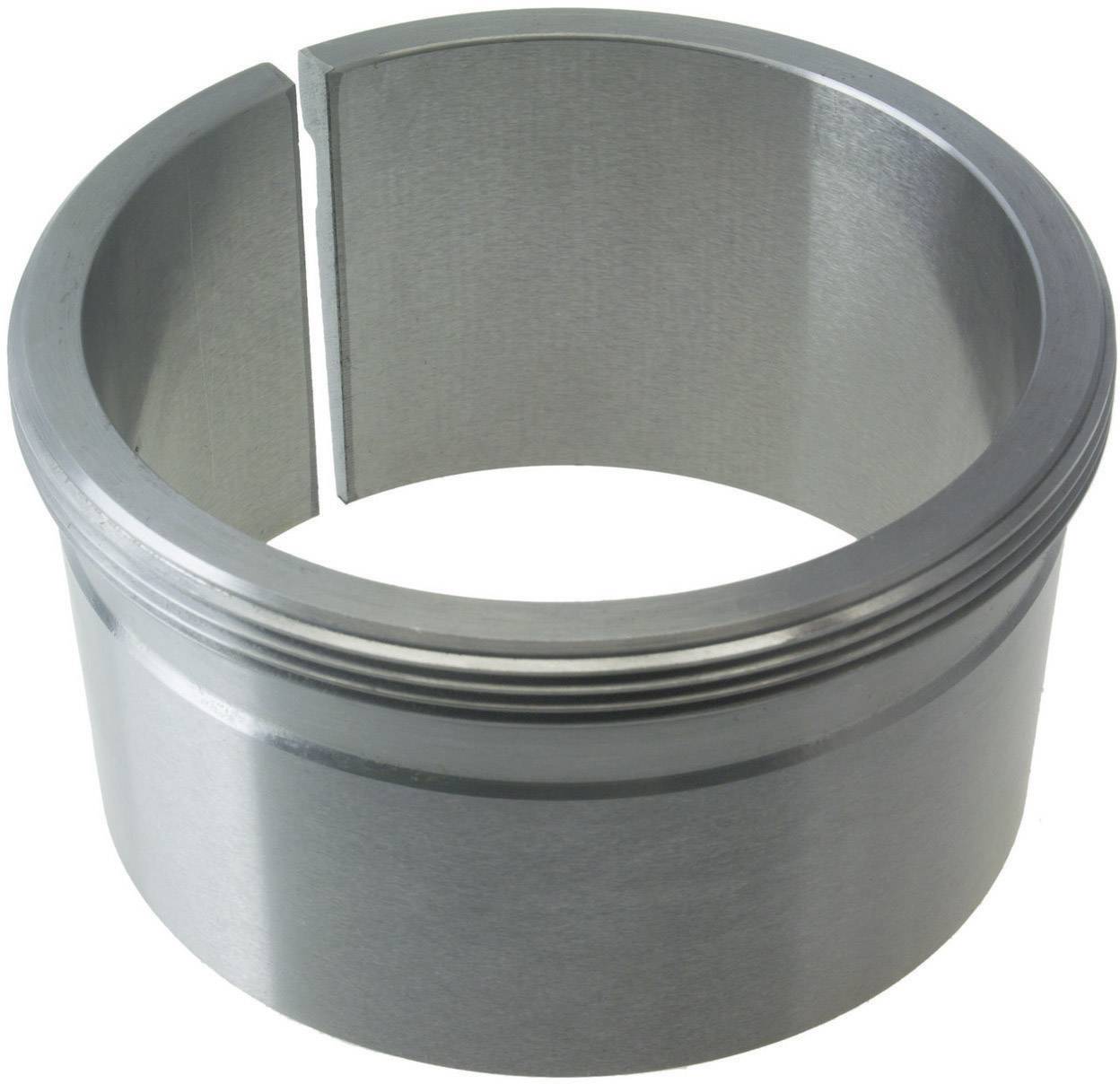

FAG AH3176-H Withdrawal sleeve Bore diameter 360 mm Outside diameter 420 mm
EAN:
Part number:
Item no:
Product type
Withdrawal sleeve
Bore Ø
360 mm
Outside Ø
420 mm
Type
AH3176-H
Manufacturer part #
AH3176-H
Technical specifications
- Type
AH3176-H
- Product type
Withdrawal sleeve
- Manufacturer part #
AH3176-H
- Bore Ø
360 mm
- Outside Ø
420 mm
- Dim
Bohrungs-Ø 360 mm Außen-Durchmesser 420 mm
- Weight
35240 g
- Features
Hydraulics
- Dimensions
Bohrungs-Ø 360 mm Außen-Durchmesser 420 mm mm
- Width
232 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 164927 FAG AH3176-H Withdrawal sleeve Bore diameter 360 mm Outside diameter 420 mm
Description
Adapter sleeves are used to fit bearings with tapered bores to cylindrical shafts. After sliding the bearing on the shaft, the conse-shaped sleeve is pushed into the bore until the required radial backlash has been reached.
Postposed characters are used to identify different bearing types.
· H = hydraulic withdrawal sleeve
Postposed characters are used to identify different bearing types.
· H = hydraulic withdrawal sleeve
Hints
N.B. Adapter sleeves do not come with locknuts or retaining rings.
