FAM-USB Eltako Wireless Antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
14-day return policy included
Technical specifications
- Design of surface: Matt
- Colour, black
- Product type
Antenna
- Series
Eltako
- Dim
(W x H x D) 40 x 22 x 78 mm
IP20
- Data transfer (Smart Home)
Wireless
- Frequency
868 MHz
- Width
40 mm
- Height
22 mm
- Depth
78 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
Other
Black
TRUE
Other
Other
0
TRUE
TRUE
TRUE
TRUE
Thermoplastic
Plastic
FALSE
126
868 MHz
TRUE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
FALSE
TRUE
TRUE
FALSE
Matt
IP20
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2636374 FAM-USB Eltako Wireless Antenna
User & Safety Instructions
User & Safety Instructions 2636374 FAM-USB Eltako Wireless Antenna
Description

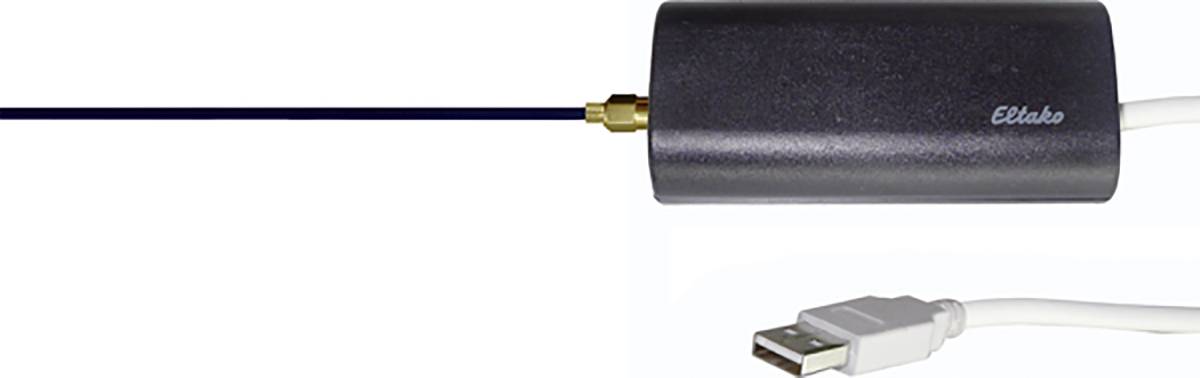

Wireless antenna module (receiver and transmitter) with USB interface for operation on a SafeIV server with the radio visualization and control software GFVS 4.0. SafeIV included in the scope of supply. USB-plug type A with 1m connecting cable. SMA socket for small enclosed antenna. The transmission and reception range is significantly increased when a larger FA250 or FA200 radio antenna is connected in an optimized position. The connection of an external high-performance FA200 reception antenna is only permitted if radio signals are only received and not also transmitted. Housing dimensions LxWxH: 78x40x22mm.
