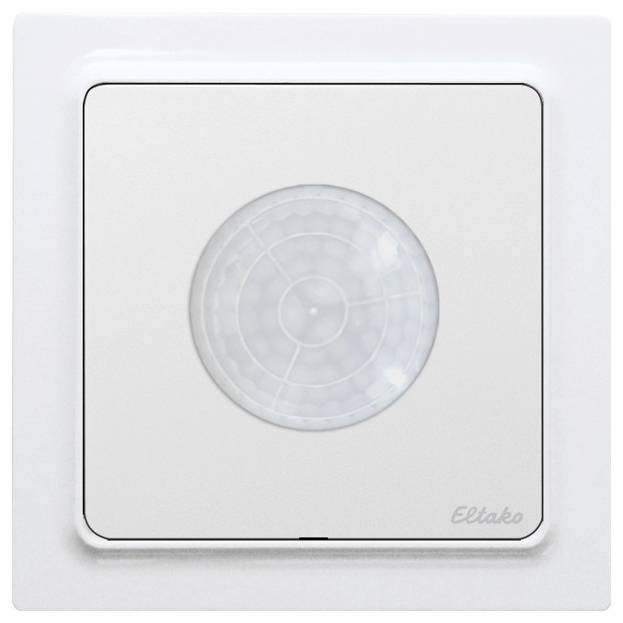

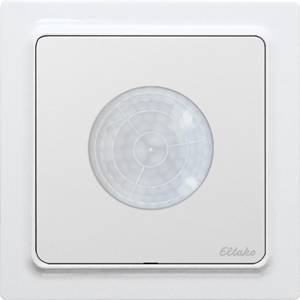

FB55EB-pm Eltako Wireless Motion detector Surface-mount Max. range (open field) 30 m

Radio movement sensor polar-white matt for surface mounting 80x80x27mm or mounting in the E-Design55 switch system. With battery (service life 3 years). Smart home sensor The FB55B-wg sends a moving message frame every 2 minutes when motion is detected. If no motion is detected, a non-moving message frame is sent after 4 minutes. If no movement is still detected, a non-moving message frame is sent every 30 minutes. In the factory setting, the upper slide switch is set to P (passive), light actuators and dimming actuators switch off automatically, if no new movement is detected for 5 minutes. The light switch is used to switch the device on. With the upper sliding switch in position A (active), automatic motion-dependent switching is activated. The sensitivity can be selected with the lower sliding switch. H = high (factory setting) or L = low. The power supply for several years is provided by an internal 3V button cell CR2032. To replace the button cell, you simply have to remove the front plate. The radio sensor can be taught-in to the following actuators and the building radio visualization and control software: FSR14, FSR61, FSR71, FTN14, FUD14, FUD61, FUD71, FZK14, FZK61, FD62, FL62, FSLA.

This text is machine translated.
