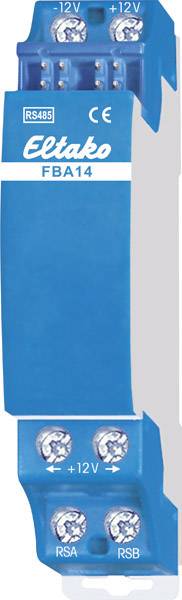

FBA14 Eltako Bus connector DIN rail
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.04
3
4% = € 1.01
€ 25.03
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.04 / piece)
€ 26.04
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
Bus connector
- Series
Eltako
- Operating voltage
12 V
- Mounting type
DIN rail
- Data transfer (Smart Home)
Wired
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
0.07
DRA (DIN-rail adapter)
FALSE
TRUE
FALSE
Other
1
None
FALSE
FALSE
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162181 FBA14 Eltako Bus connector DIN rail
Description
Bus coupler for wire connections of the series 14 bus and power supply bridges. Cross-wiring bus and power supply with jumper. The FBA14 Bus Coupler can connect various bus parts as well as feed in power supplies. Bus parts on different mounting rails or in other distribution boards or control cabinets are connected to one FBA14 each and a 4-wire shielded bus cable, e.g. a telephone line. The total length of all connecting cables should not be 100m überschreiten and the last actuator only has to be 9mm wide 2. Terminating resistor supplied with the FAM14 or FTS14KS. The position of the bus coupler in a series of devices of series 14 is arbitrary.
