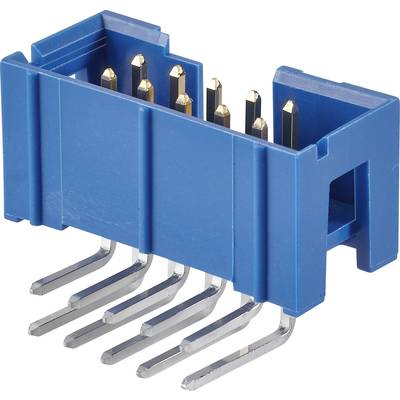

Image similar
Image similar
FCI 75867-105LF Pin connector Contact spacing: 2.54 mm Total number of pins: 26 No. of rows: 2 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
25 Piece(s) (Only while stocks last)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.92
10
7% = € 0.14
€ 1.78
25
10% = € 0.20
€ 1.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.92 / piece)
€
Highlights & Details
Multi-pin connector angled PCB mounting
- Total number of pins 26
- No. of rows 2
- Content 1 pc(s)
Technical specifications
- Gold plating 0.62 µm
- Connector type
Pin strip, right angle
- CS
2.54 mm
- No. of rows
2
- Pins per row
13
- Total number of pins
26
- Nominal voltage
500 V
- Nominal current
3 A
- Contact material
Phosphorus bronze
- Content
1 pc(s)
- Connection
Print
- Type
IDC Quickie
- Dim
(L x W x H) 40.23 x 9.2 x 9.57 mm
- Factory colour
Blue
- Height
9.57 mm
- Length
40.23 mm
- Width
9.2 mm
- Contact surface
Gold plated
- Connector orientation
Parallel (to the PCB)
- Manufacturer part #
75867-105LF
- Pins
26
- Case material
Thermoplastic UL94V-O
- Max. temperature
+125 °C
- Min. temperature
-65 °C
- Product type
Pin connector
Documents & Downloads
Datasheet
Datasheet 1401796 FCI 75867-105LF Pin connector Contact spacing: 2.54 mm Total number of pins: 26 No. of rows: 2 1 pc(s)
