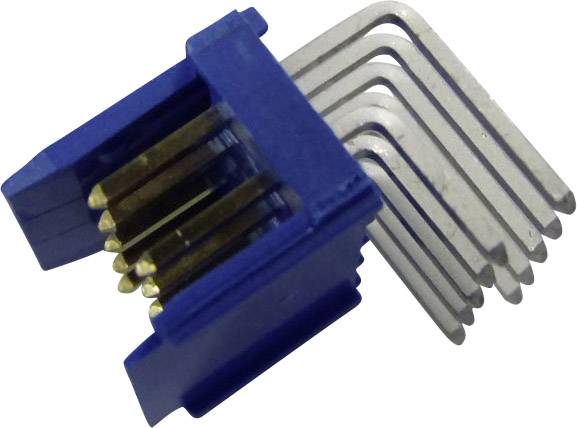

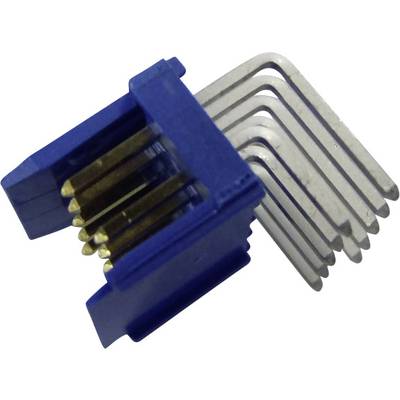

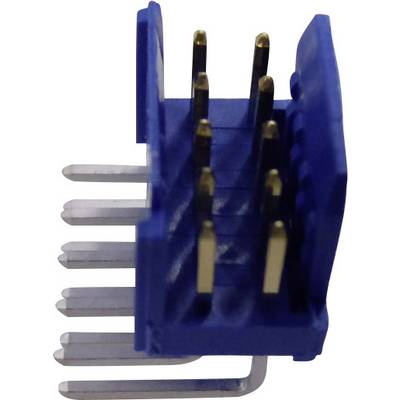

FCI Pin strip (standard) DUBOX Total number of pins 14 Contact spacing: 2.54 mm 76383-307LF 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.67
10
8% = € 0.13
€ 1.54
25
11% = € 0.18
€ 1.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.67 / piece)
€ 2.76
-39 %
€
Highlights & Details
Pin strip
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 14
Technical specifications
- Connector type
Pin strip, right angle
- Connector system
wire-to-board
- Series
DUBOX
- CS
2.54 mm
- Pins per row
7
- Total number of pins
14
- Pin shape
Rectangular
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Content
1 pc(s)
- Dim
(L x W x H) 17.70 x 9.34 x 7.80 mm
- Factory colour
Blue
- Height
7.80 mm
- Length
17.70 mm
- Width
9.34 mm
- Industrial packaging
No
- Connection
Print
- Connector contact surface
Nickel plated
- Connector orientation
Parallel (to the PCB)
- Manufacturer part #
76383-307LF
- Type
Dubox / PV / Bergstik
- Insulation material
Polyester
- No. of rows
2
- Contact material
Phosphorus bronze
- Case material
Polyester
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Product type
Pin strip (standard)
