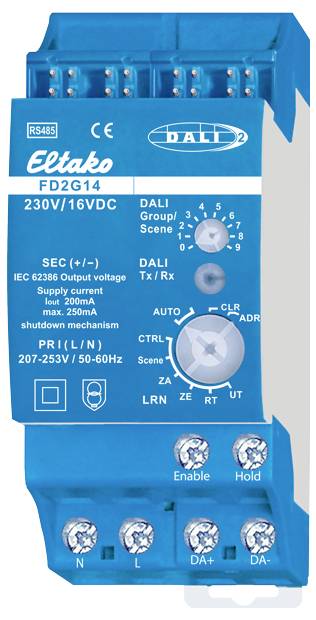

FD2G14 Eltako DALI gateway DIN rail

DALI-2 bidirectional gateway. Standby loss of only 1 watt. DALI-2 certified. DALI-2 is the latest generation of the DALI standard with extended range of functions. DALI-2 devices also feature all previous DALI functions and are therefore backwards compatible. DIN-EN 60715 TH35 DIN rail mounting device. 2 divisions = 36mm wide, 58mm deep. Connection to the Eltako-RS485 bus. Cross-wiring only bus with jumper. Operation in conjunction with FAM14. Supply voltage 230V/50Hz at terminals N and L. The voltage conforming to IEC 62386 for DALI devices is provided at terminals DA +/-. Output current 200mA/max. 250mA. Switch-on time max. 250 ms. In the event of a short circuit, the power unit switches off the supply voltage. There is a mechanism for cyclic switch-on attempts. Up to 64 DALI and DALI-2 operating devices and 64 DALI-2 sensors can be operated on the FD2G14 taking into account the output current. With the FD2G14 gateway, DALI devices with EnOcean sensor frames are controlled. Groups 0-15 can be activated and the broadcast command can also be issued. The DALI scenes 0-15 can also be controlled. DALI installations that are to be fully controlled with the FD2G14 must therefore be configured in groups 0-15. The evaluation of DALI-2 sensors can be configured and activated using PCT14. DALI-2 Event messages can be interpreted and output on the RS485 BUS using the Hold terminal. This means that output via FTD14 to the EnOcean radio network is possible. The FD2G14 internally stores the dimming value for each of the groups 0-15 and provides this value as a feedback signal. Feedback telegrams are generated. The FD2G14 occupies 16 BR14 device addresses. The responses of the device addresses correspond in ascending order to the dimming values of DALI groups 0-15. With PCT14, the feedback signals can be changed individually per group from dimming value message frame (%) to button message frame (ON/OFF). Thus, the feedback signals BR14 actuators can be controlled. The FD2G14 performs the function of the DALI master and DALI power supply. Only buttons for groups 0-8 and DALI scenes 0-9 can be taught via the rotary switches. Activation telegrams for groups 9-15 and scenes 10-15 are only possible by entries in PCT14. As of production week 30/19, the FD2G14 can be used as a single-channel device FD2G14-Broadcast, which is defined when assigning the device address. Attention: Radio buttons always require a double click when learning to the FD2G14 manually! With CLR, one click is all it takes. A direction button or universal button with the same ID and button cannot be taught in to different groups several times. The last selected group is always valid. A button can switch either only one group or all groups with broadcast. One FBH can also be taught per group. With manual memorizing, it is always brightness-independent. With PCT14 you can also set the brightness threshold. For the FBH of all groups, the delay time for the shutdown after non-motion can be set together in minutes (1..60). Default is 3 minutes.
