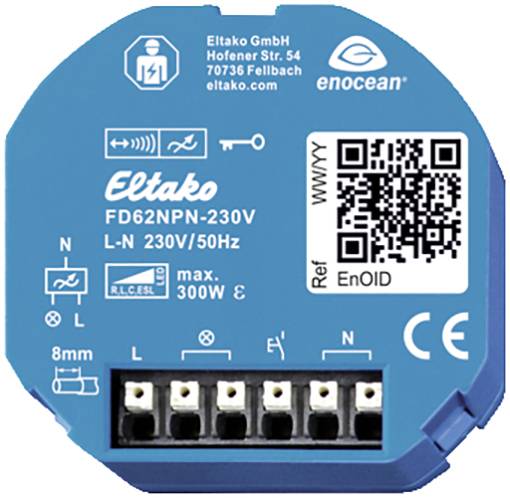

FD62NPN-230V Eltako Dimmer actuator Flush mount

Wireless universal dimming actuator With Power MOSFET. Dimmable 230V LED lamps in the phase section up to 300W operating mode or in the phase section up to 100W operating mode, depending on the ventilation conditions. 230V - bulbs and halogen lamps up to 300W, depending on the ventilation conditions. No inductive (wound) transformers. With kid's room and snooze circuit. No minimum load. Standby loss of only 0.5 watt. For panel mounting. 49x51mm, 20mm deep. The connection terminals are plug-in terminals for conductor cross-sections of 0.2 mm2 up to 2.5mm2. With the comfortable tip technology up to 32 wireless universal switches, wireless direction sensor, wireless central control button and motion sensors can be taught in. Bi-directional radio can be activated. Switching at zero point with soft on and soft off for saving lamp. Supply, switching and control voltage locally 230V. The adjusted brightness level is saved when turning it off (MEMORY) When the supply voltage fails, a defined shutdown is performed. Automatic electronic overload protection and overheating shut-off. In addition to the radio control input via an internal antenna, this radio actuator can also be controlled locally with a conventional 230V control button that may be installed before. A glow lamp current is not permitted.

This text is machine translated.
