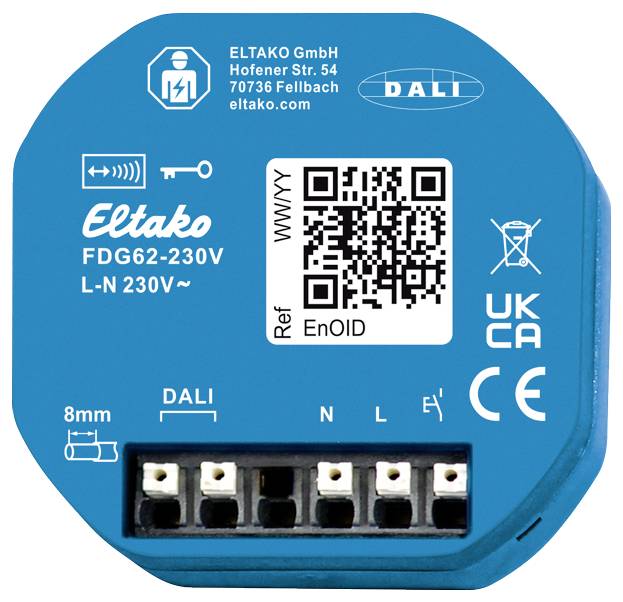

FDG62-230V Eltako Gateway Flush mount
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 65.54 / piece)
€ 65.54
plus VAT.
14-day return policy included
Technical specifications
- Product type
Gateway
- Series
Eltako
- Dim
(W x H x D) 236.0000 x 65.0000 x 40.0000 mm
IP20
- Operating voltage
230 V
- Mounting type
Flush mount
- Width
236.0000 mm
- Height
65.0000 mm
- Depth
40.0000 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
0.2070 kg
Flush mounted (plaster)
Multiple interface
AC
2 W
FALSE
TRUE
FALSE
Other
FALSE
FALSE
FALSE
FALSE
Other
FALSE
FALSE
FALSE
FALSE
230-230 V
IP20
FALSE
FALSE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2636071 FDG62-230V Eltako Gateway Flush mount
User & Safety Instructions
User & Safety Instructions 2636071 FDG62-230V Eltako Gateway Flush mount
Description
Wireless DALI gateway, bidirectional. Standby loss of only 0.5 watt. For panel mounting. 49x51mm, 20mm deep. The terminals are plug-in terminals for conductor cross-sections from 0.2mm² to 2.5mm². The comfortable tip technology allows you to learn up to 32 wireless universal switches, wireless direction button, wireless central control button, motion sensors, white and intensity double rocker buttons. Bi-directional radio can be activated. Supply voltage 230V at terminals N and L. The DALI bus power supply DL-N2-80mA and up to 40 DALI devices are connected to the DALI terminals. The FDG62 gateway controls DALI devices with EnOcean radio transmitters. Only the broadcast command can be issued. The FGD62 stores the dimming value internally and provides this value as a feedback signal. The same feedback telegrams are generated as with a FD62NPN. Thus, actuators can be controlled with the feedbacks. The FDG62 fulfills the functions of the DALI master.
