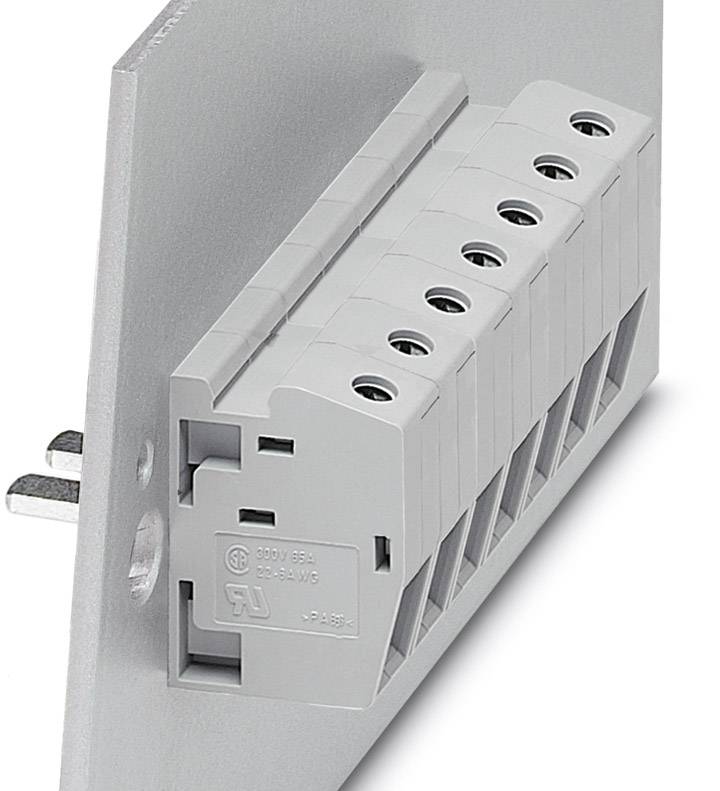

Image similar
Image similar
Feed-through terminal block HDFK 10-VP 0709110 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Feedthrough terminal
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
16 mm²
Nominal current - rounded value
57 A
Datasheet (PDF)
Technical specifications
- Product type
Feedthrough terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
10.1 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
400 V
- Stripping length (max.)
11 mm
- Manufacturer part #
0709110
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
HDFK 10-VP
- Dim
(L x W) 42.8 mm x 10.1 mm
- Width
10.1 mm
- Length
42.8 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 716465 Feed-through terminal block HDFK 10-VP 0709110 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 716465 Feed-through terminal block HDFK 10-VP 0709110 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Cable lug connection, Load current : 76 A, Cross section: 0.5 mm² - 16 mm², AWG 20 - 8, Connection direction of the conductor to plug-in direction: 0 °, Width: 10.1 mm, Color: gray
