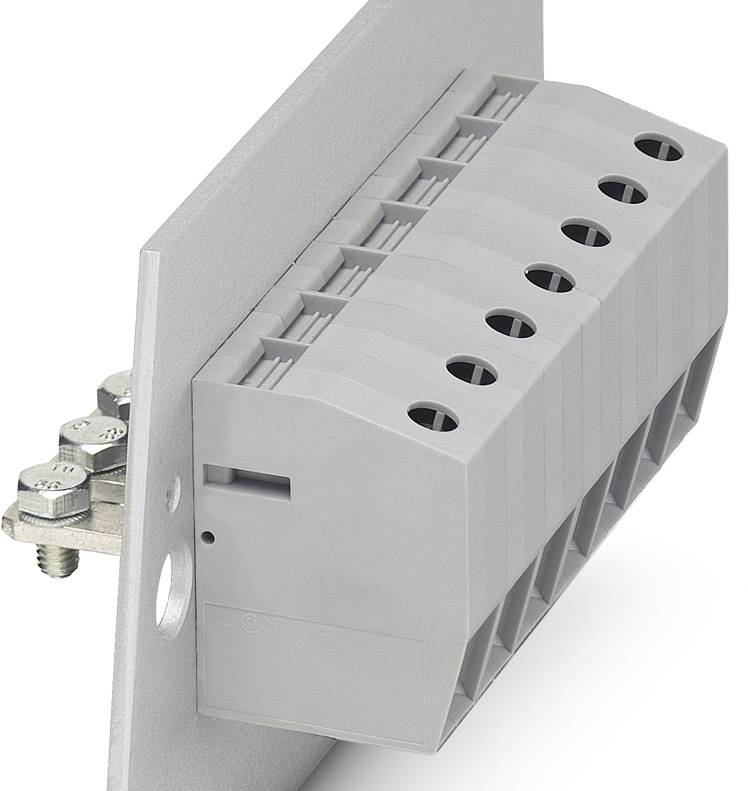

Image similar
Image similar
Feed-through terminal block HDFK 25-VP 0709136 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Feedthrough terminal
Connection
Screws
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
35 mm²
Nominal current - rounded value
101 A
Datasheet (PDF)
Total (€ 6.30 / piece)
€ 315.13
plus VAT.
14-day return policy included
Technical specifications
- Product type
Feedthrough terminal
- Connection
Screws
- Cross section (flexible) (min.)
10 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
6 mm²
- Cross section (inflexible) (max.)
35 mm²
- AWG (min.)
10
- AWG max.
2
- Clamp width
15.1 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
101 A
- Nominal current - rounded value
101 A
- Nominal voltage
500 V
- Stripping length (max.)
19 mm
- Manufacturer part #
0709136
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
HDFK 25-VP
- Dim
(L x W) 68.6 mm x 15.1 mm
- Width
15.1 mm
- Length
68.6 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 719774 Feed-through terminal block HDFK 25-VP 0709136 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 719774 Feed-through terminal block HDFK 25-VP 0709136 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Cable lug connection, Load current : 125 A, Cross section: 6 mm² - 35 mm², AWG 8 - 3, Connection direction of the conductor to plug-in direction: 0 °, Width: 15.1 mm, Color: gray
