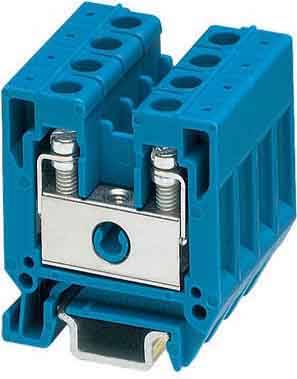

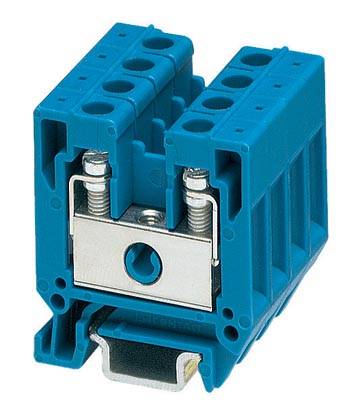

Feed-through terminal block MBK 5/E BU 1415115 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Total (€ 2.27 / piece)
€ 113.44
plus VAT.
14-day return policy included
Highlights & Details
Feed-through terminal block MBK 5/E BU
- MBK 5/E BU
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
500 V
- Stripping length (max.)
8 mm
- Manufacturer part #
1415115
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
MBK 5/E BU
- Dim
(L x W x H) 28 x 6.2 x 32 mm
- Width
6.2 mm
- Height
32 mm
- Length
28 mm
- Contamination level
3
- Flammability rating
V0
- Connector colour
Blue
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565108 Feed-through terminal block MBK 5/E BU 1415115 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565108 Feed-through terminal block MBK 5/E BU 1415115 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Width: 6.2 mm, Color: blue, Mounting type: NS 15
