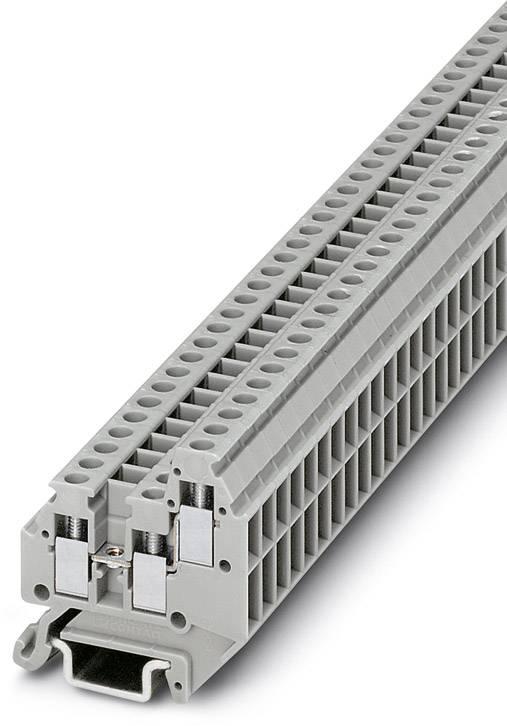

Feed-through terminal block MT 1,5-TWIN 3001682 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Nominal current - rounded value
17.5 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.86 / piece)
€ 142.85
plus VAT.
14-day return policy included
Highlights & Details
Feed-through terminal block MT 1,5-TWIN
- MT 1,5-TWIN
Technical specifications
- Product type
Serial continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
26
- AWG max.
16
- Clamp width
4.2 mm
- No. of rows
2
- Number of pins
3
- Factory colour
Grey
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
400 V
- Stripping length (max.)
6 mm
- Manufacturer part #
3001682
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
MT 1,5-TWIN
- Dim
(L x W x H) 27.8 x 4.2 x 24.4 mm
- Width
4.2 mm
- Height
24.4 mm
- Length
27.8 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 589314 Feed-through terminal block MT 1,5-TWIN 3001682 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 589314 Feed-through terminal block MT 1,5-TWIN 3001682 Phoenix Contact
Description
Feed-through terminal block, Cross section: 0.14 mm² - 1.5 mm², AWG: 26 - 16, Connection type: Screw connection, Width: 4.2 mm, Color: gray, Mounting type: NS 15
