Feed-through terminal block OTTA 6-P/P 0790404 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Bolt terminal
Connection
Bolt fixings
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 5.29 / piece)
€ 264.71
plus VAT.
14-day return policy included
Highlights & Details
Feed-through terminal block OTTA 6-P/P
- OTTA 6-P/P
Technical specifications
- Packaging type
Piece
- Product type
Bolt terminal
- Features
+ test option
- Connection
Bolt fixings
- Cross section (flexible) (min.)
0.1 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.1 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
22
- AWG max.
10
- Clamp width
11 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
800 V
- Manufacturer part #
0790404
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
OTTA 6-P/P
- Width
11 mm
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 587593 Feed-through terminal block OTTA 6-P/P 0790404 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 587593 Feed-through terminal block OTTA 6-P/P 0790404 Phoenix Contact
Description

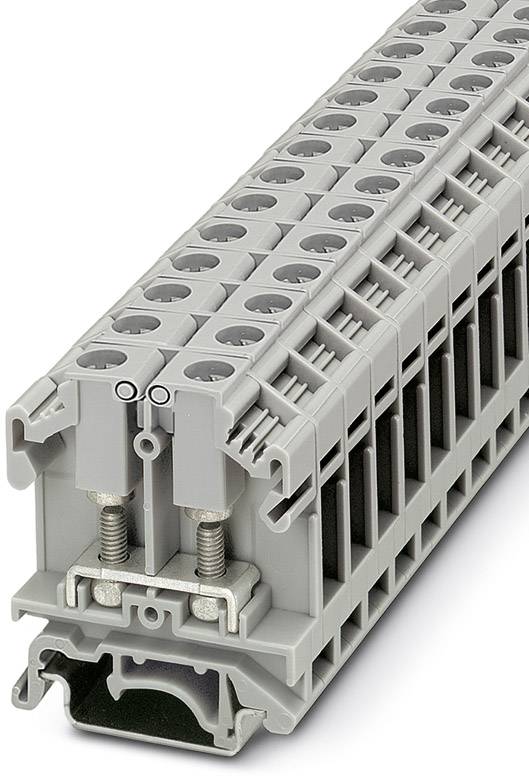

Universal terminal block with bolt connection, with test socket screws, cross section: 0.1 - 6 mm², width: 11 mm, color: Gray
