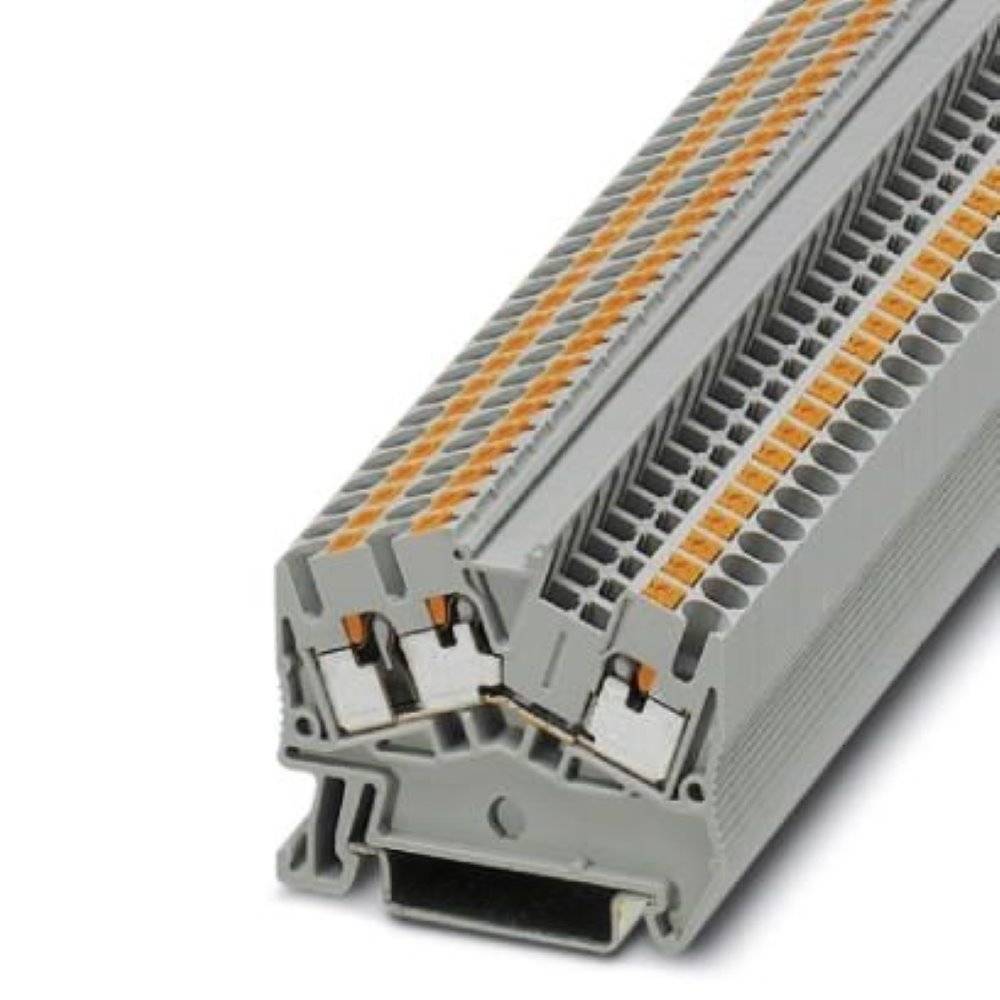

Image similar

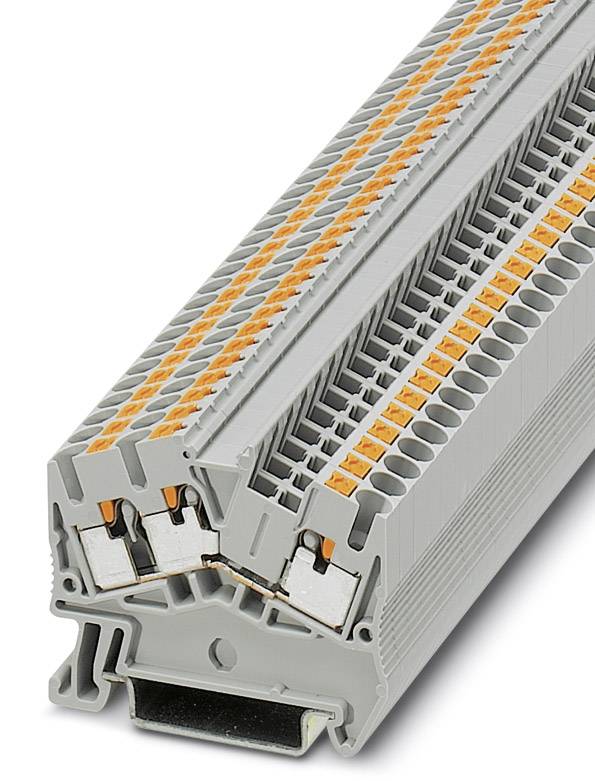

Image similar
Feed-through terminal block PTS 2,5-TWIN 3211896 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Quick-connect
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 0.79 / piece)
€ 39.49
plus VAT.
Highlights & Details
Feed-through terminal block PTS 2,5-TWIN
- PTS 2,5-TWIN
Technical specifications
- Product type
Serial continuity
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
14
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
3
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3211896
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
PTS 2,5-TWIN
- Dim
(L x W x H) 49 x 5.2 x 43 mm
- Width
5.2 mm
- Height
43 mm
- Length
49 mm
- Flammability rating
V0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 585784 Feed-through terminal block PTS 2,5-TWIN 3211896 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 585784 Feed-through terminal block PTS 2,5-TWIN 3211896 Phoenix Contact
Description
Feed-through terminal block, Connection method: Push-in connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Width: 5.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
