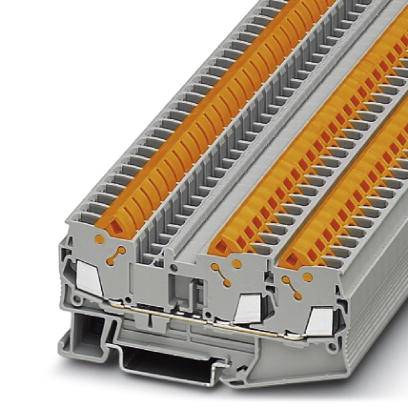

Feed-through terminal block QTC 2,5-TWIN 3206445 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Quick-connect
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.02 / piece)
€ 100.83
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
20
- AWG max.
14
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
3
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Manufacturer part #
3206445
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
QTC 2,5-TWIN
- Dim
(L x W x H) 82.5 x 6.2 x 37.8 mm
- Width
6.2 mm
- Height
37.8 mm
- Length
82.5 mm
- Flammability rating
V0
- Connector colour
Grey
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 589613 Feed-through terminal block QTC 2,5-TWIN 3206445 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 589613 Feed-through terminal block QTC 2,5-TWIN 3206445 Phoenix Contact
Description
Feed-through terminal block, Connection method: Quick connection, Cross section: 0.5 mm² - 2.5 mm², AWG: 20 - 14, Width: 6.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/7,5
