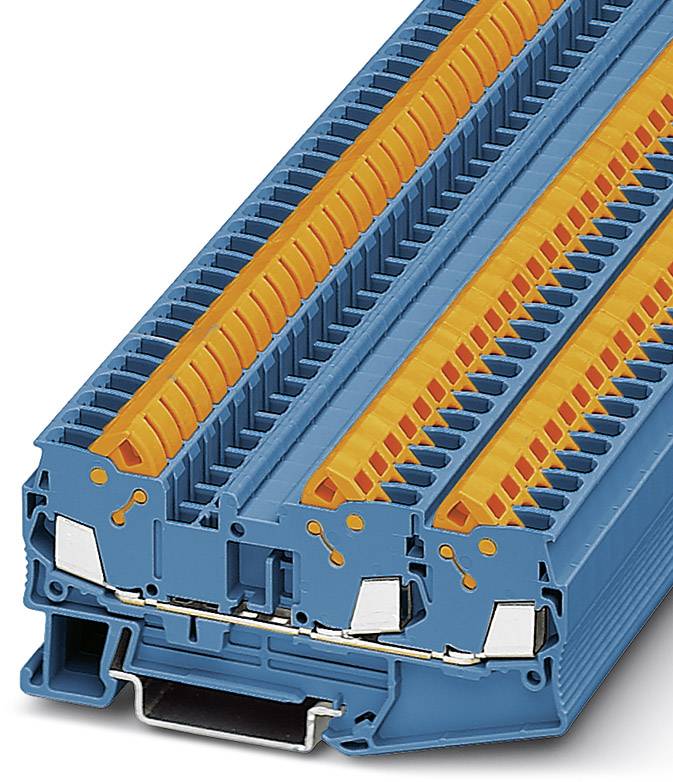

Image similar

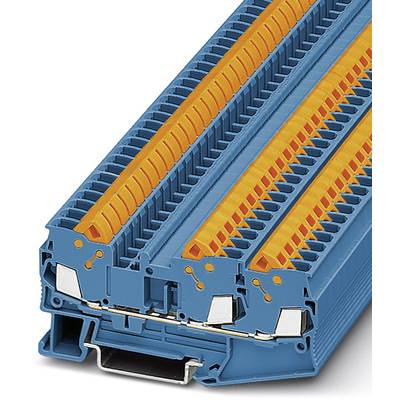

Image similar
Feed-through terminal block QTC 2,5-TWIN BU 3206461 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Quick-connect
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.02 / piece)
€ 100.83
plus VAT.
Only 4 Set(s) available
Highlights & Details
Feed-through terminal block QTC 2,5-TWIN BU
- QTC 2,5-TWIN BU
Technical specifications
- Product type
Serial continuity
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
20
- AWG max.
14
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
3
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Manufacturer part #
3206461
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
QTC 2,5-TWIN BU
- Dim
(L x W x H) 82.5 x 6.2 x 39.3 mm
- Width
6.2 mm
- Height
39.3 mm
- Length
82.5 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 718889 Feed-through terminal block QTC 2,5-TWIN BU 3206461 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 718889 Feed-through terminal block QTC 2,5-TWIN BU 3206461 Phoenix Contact
Description
Feed-through terminal block, Connection method: Quick connection, Cross section: 0.5 mm² - 2.5 mm², AWG: 20 - 14, Width: 6.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/7,5
